The transition from laminar to turbulent flow is one of the main aerodynamic challenges in aircraft design and development. When the flight Mach number is sufficiently high, the aircraft surface experiences micropore effects and high-temperature gas thermochemical reactions. At present, boundary layer instability has become a more complex problem, and its mechanism is still unclear. In this study, a linear stability analysis method is developed which takes into consideration high-temperature chemical non-equilibrium process and surface micropore effect. For flight conditions at high altitude (H = 25 km) with Mach numbers 10, 15, and 20, the effects of micropore effects, chemical non-equilibrium effects, and their joint effect on flow stability are contrasted and investigated. The results show that the chemical non-equilibrium effect can contribute to the boundary layer's mode instability, while the micropore effect can restrain the second mode instability. The coexistence of the two often contributes to the instability of the second mode, because the former is heavier than the latter. The chemical non-equilibrium effect can reduce the frequency range corresponding to the second mode of pore effect inhibition, which results in the chemical non-equilibrium effect enhancing the inhibition effect of the micropore effect in the local low-frequency range and weakening its inhibition effect in the high-frequency range. This, in turn, causes a decrease in the corresponding N value variation by pore effect. Furthermore, when both effects are present, the micropore effect's capacity to inhibit the second mode is not significantly affected by change in Mach number.
-
Keywords:
- boundary layer /
- stability /
- chemical non-equilibrium /
- micropore effect
-
图 1 简单截面示意
Figure 1. Schematic diagram of a simple cross-section.

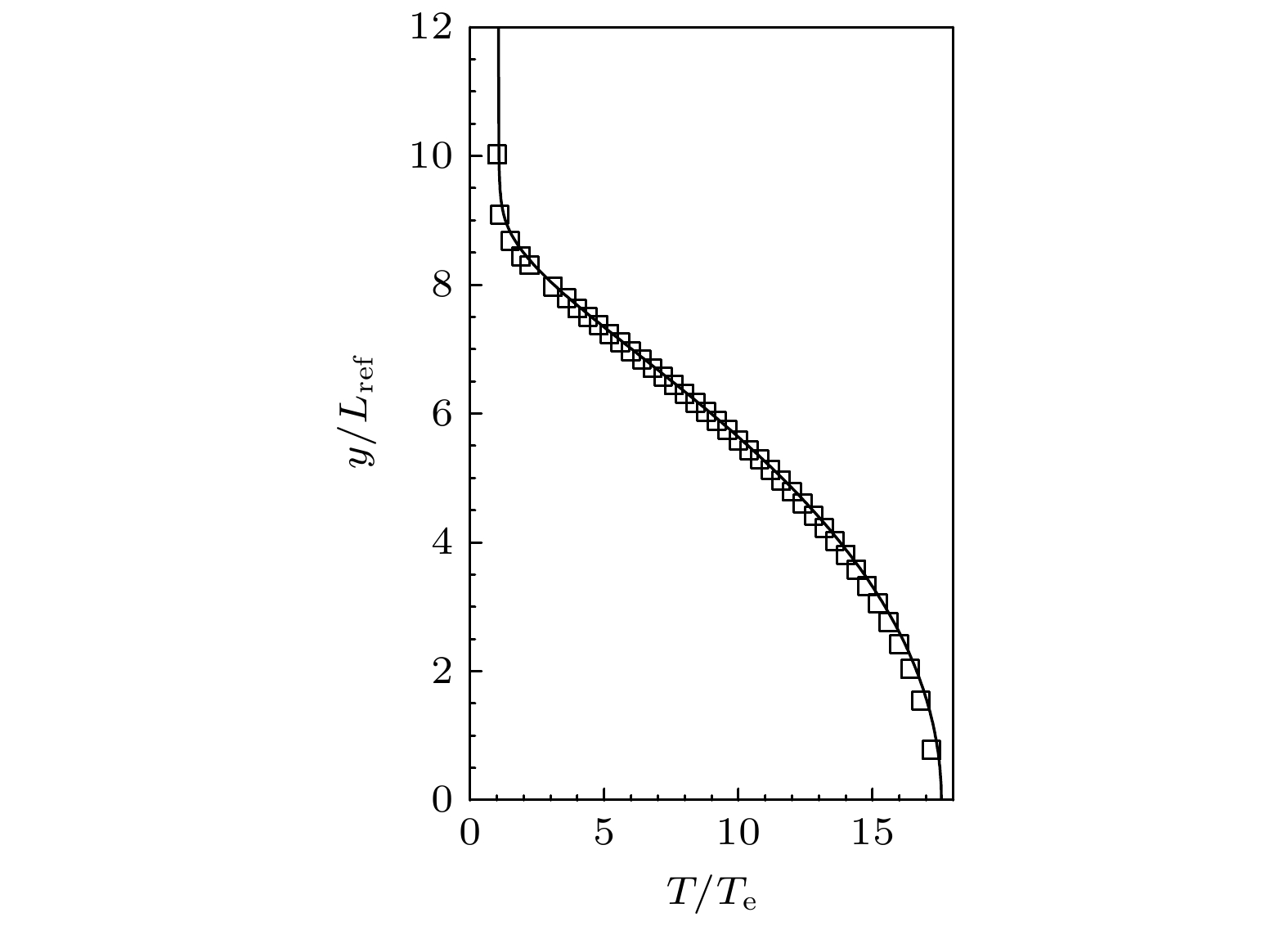

图 2 CPG工况流向x/Lref = 600处温度剖面对比
Figure 2. Temperature profile comparison under CPG circumstance at x/Lref = 600.

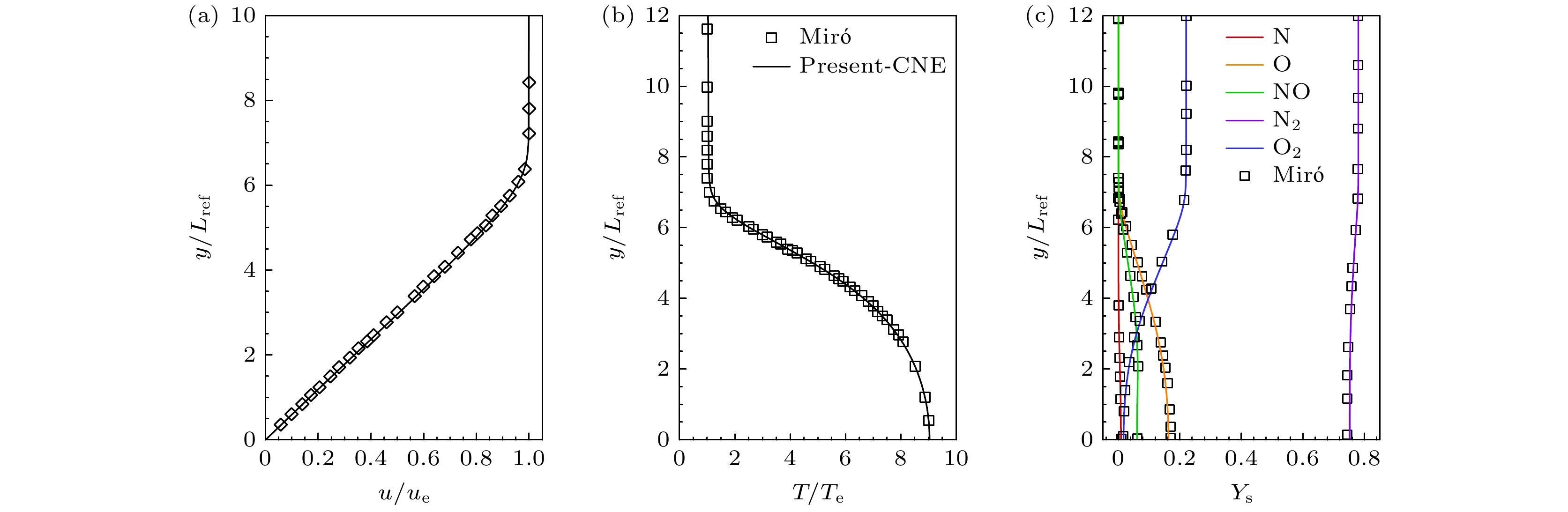

图 3 CNE工况流向x/Lref = 600处基本流对比 (a)流向速度; (b)温度; (c)组分浓度
Figure 3. Baisc flow profiles at x/Lref = 600 under CNE circumstance: (a) Streamwise velocity; (b) temperature; (c) species concentration.

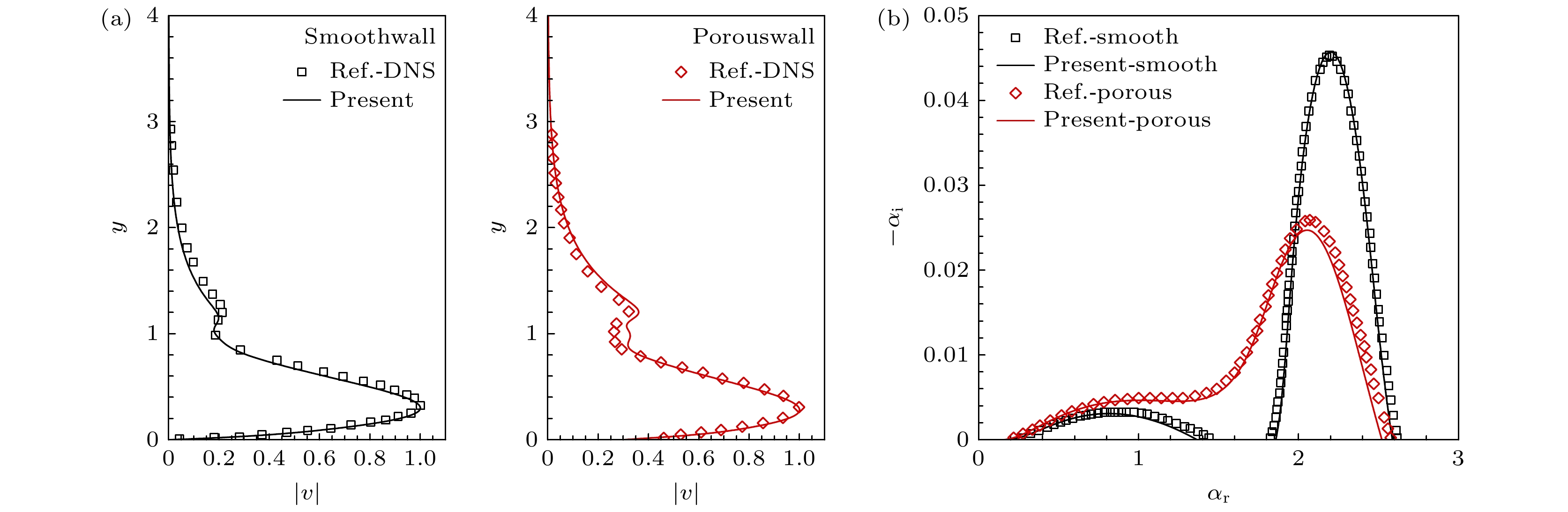

图 4 稳定性分析结果与文献对比 (a)特征函数; (b)模态增长率
Figure 4. Comparison of literature and present results: (a) Eigenfunction; (b) growth rate.

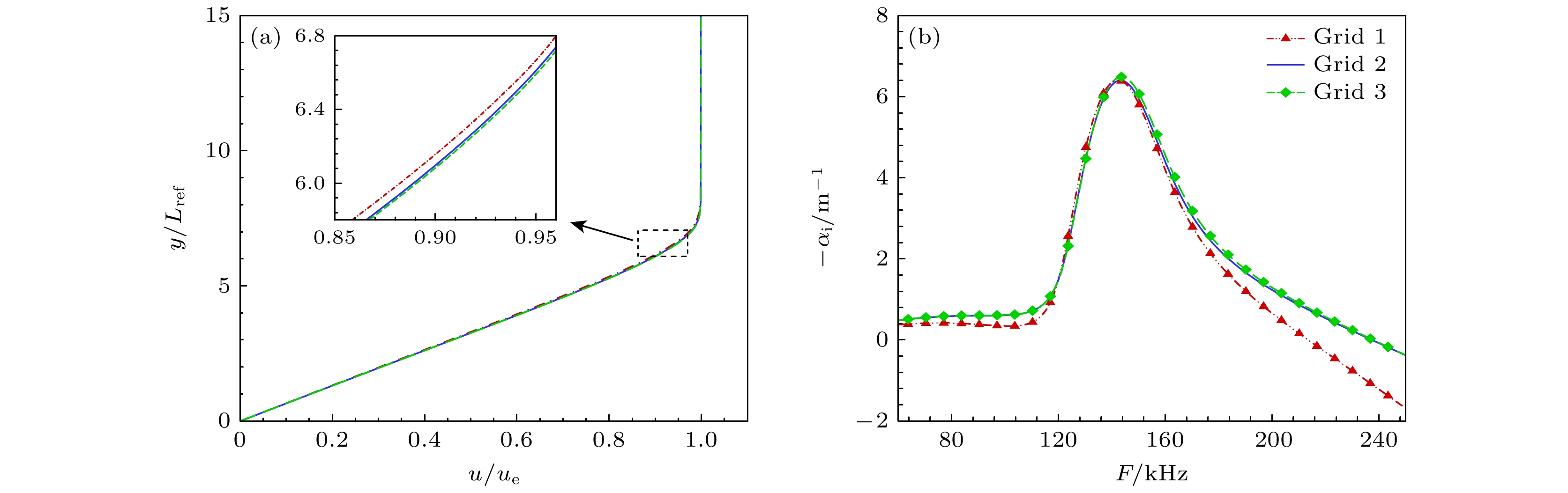

图 5 网格无关性验证 (a)流向速度; (b)模态增长率
Figure 5. Verification of grid independence: (a) Streamwise velocity; (b) growth rate.

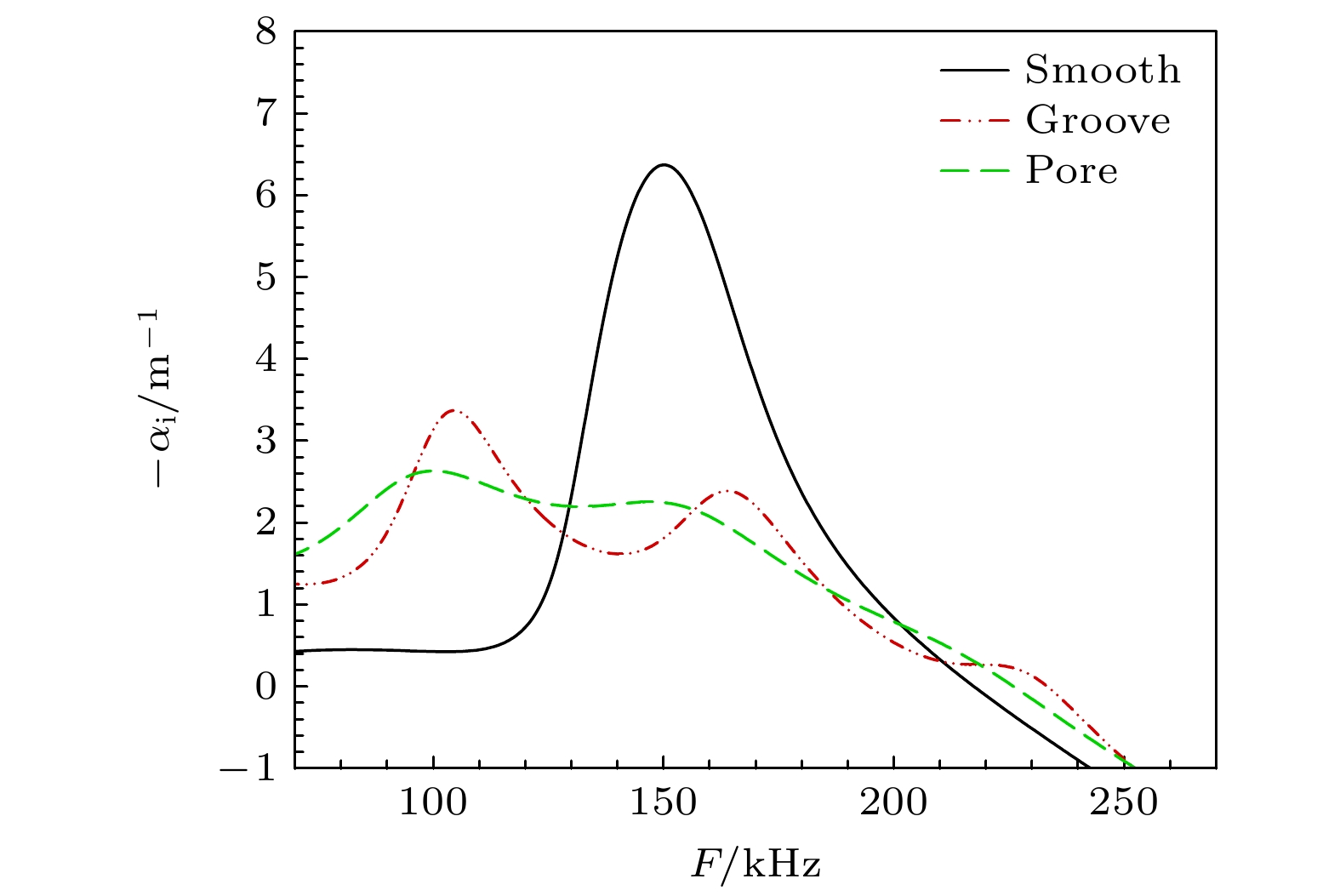

图 6 CPG下Ma10工况在位置x/Lref = 400模态增长率对比
Figure 6. Comparison of growth rate at position x/Lref = 400 for Ma10 condition under CPG.

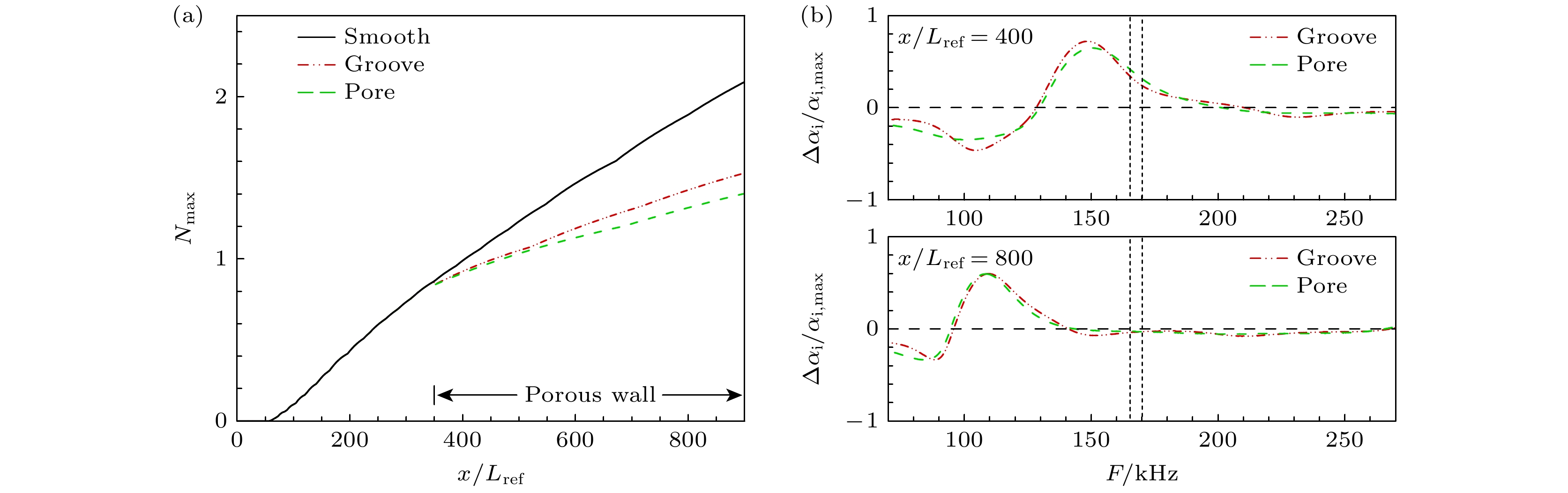

图 7 微槽和圆孔的对比 (a) N值曲线; (b) 模态增长率变化率
Figure 7. Comparison of results between microgrooves and micropores: (a) N-value curves; (b) relative change of growth rate.

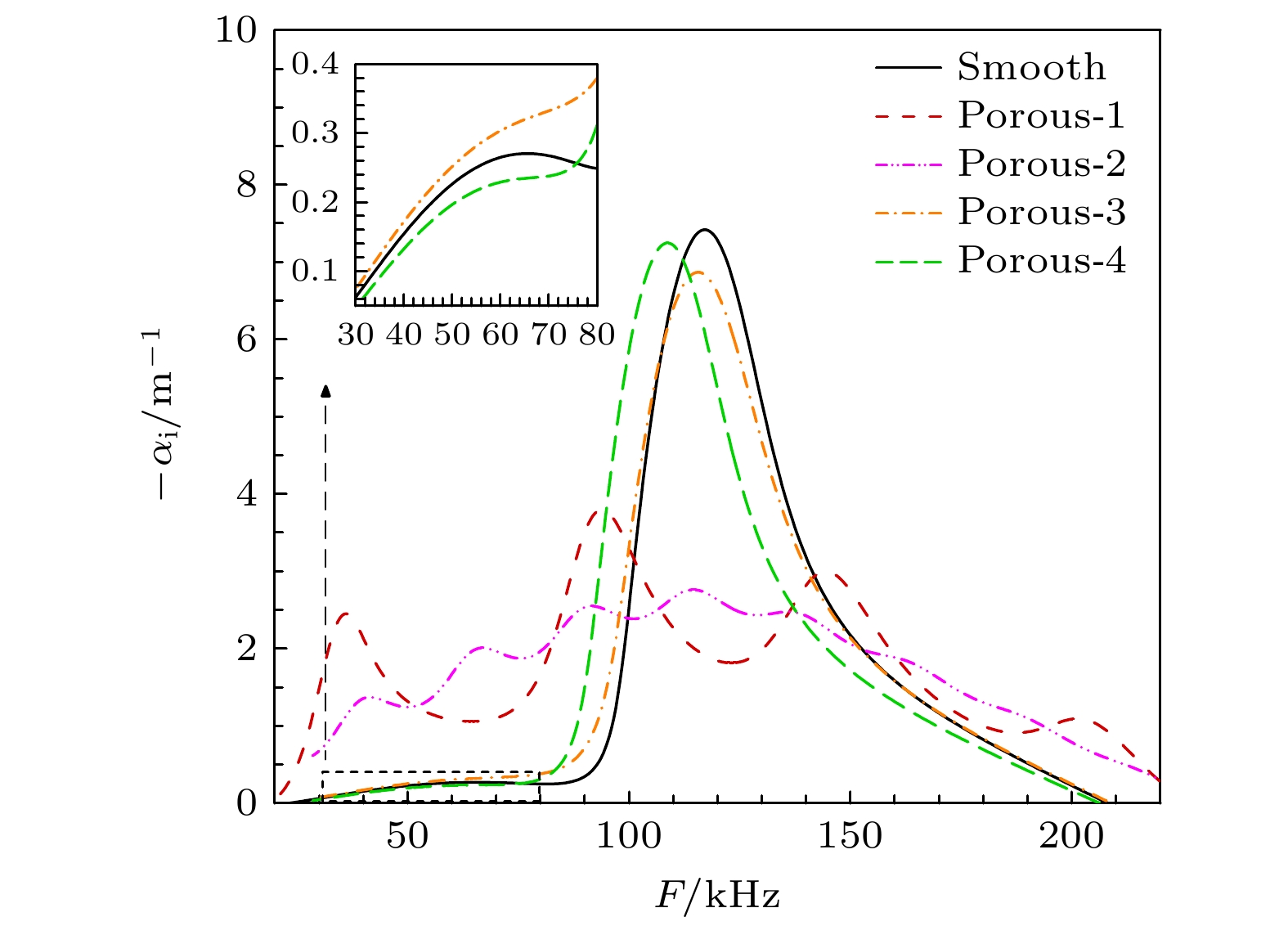

图 8 不同截面参数下在位置x/Lref = 600的模态增长率变化
Figure 8. Changes in growth rate under different cross-sectional parameters at x/Lref = 600.

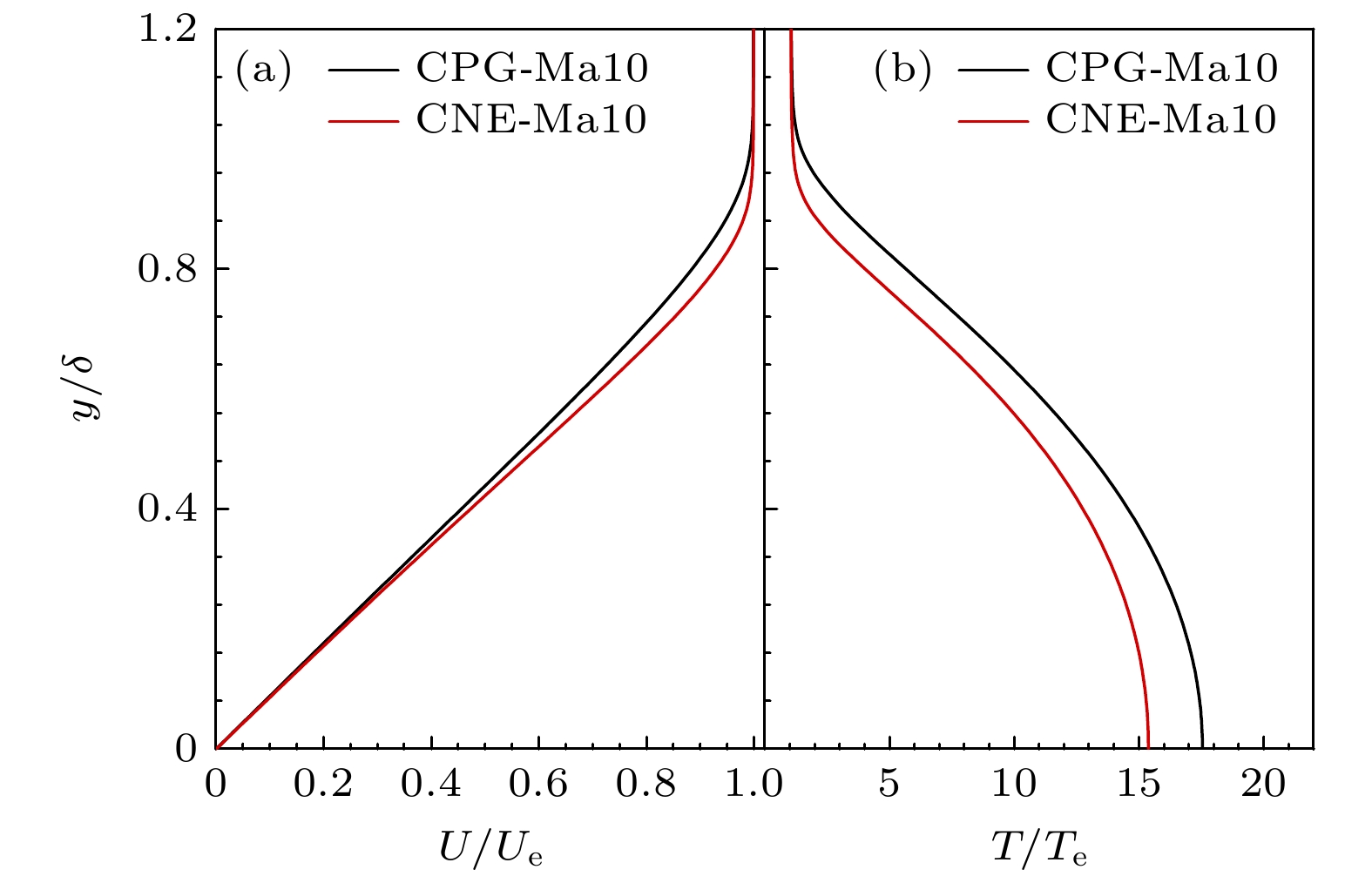

图 9 Ma10工况不同气体模型边界层基本流剖面 (a)速度; (b)温度
Figure 9. Basic flow profiles of boundary layer for different gas models under Ma10 condition: (a) Streamwise velocity; (b) temperature.

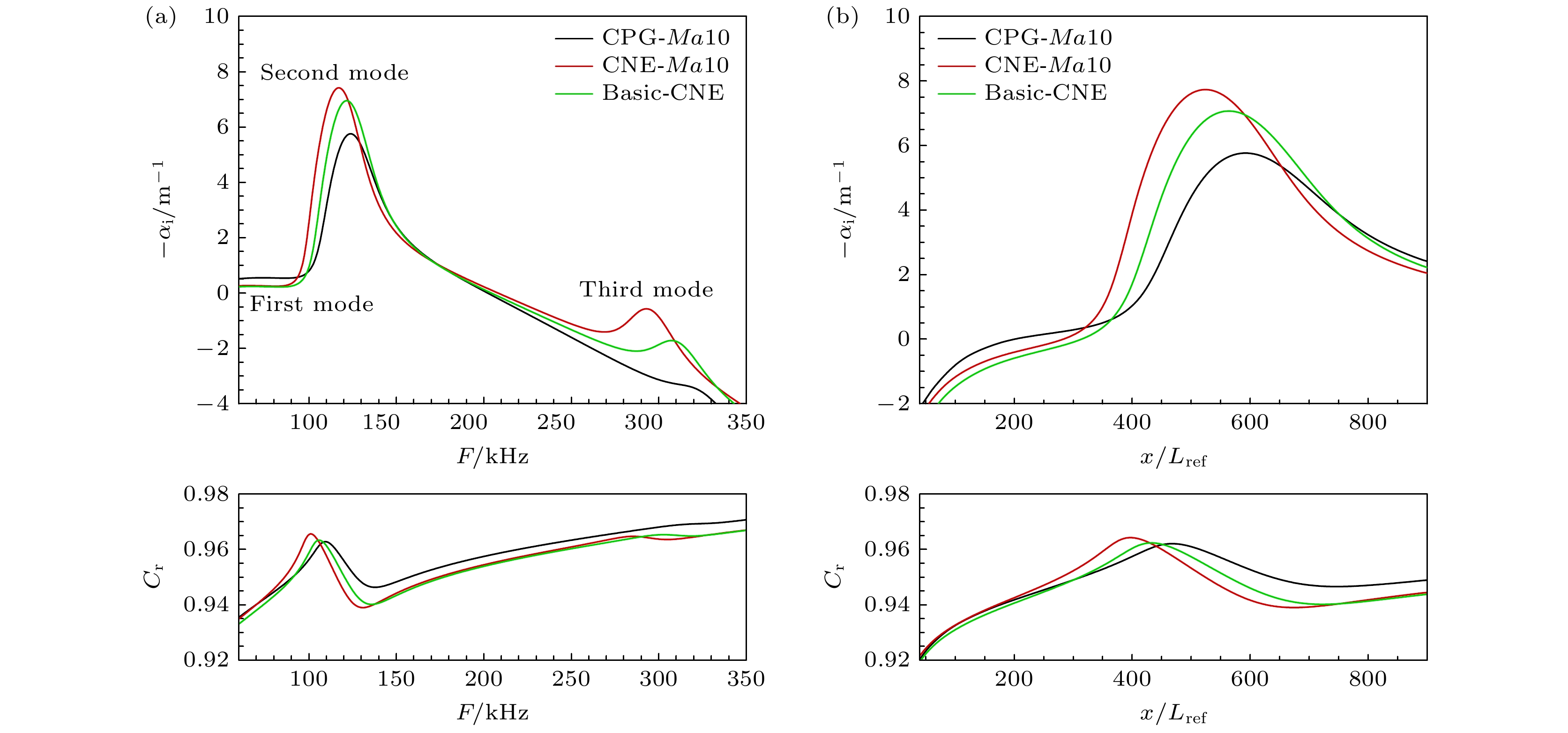

图 10 Ma10工况不同气体模型模态增长率和相速度对比 (a) x/Lref = 600; (b)沿流向F = 124 kHz
Figure 10. Comparison of growth rate and phase velocity of different gas models under Ma10: (a) x/Lref = 600; (b) modal frequency F = 124 kHz along the streamwise direction.
图 11 Ma10工况不同气体模型对比 (a)中性曲线; (b)N值包络
Figure 11. Comparison of different gas model under Ma10: (a) Neutral curve; (b) N-value envelope.

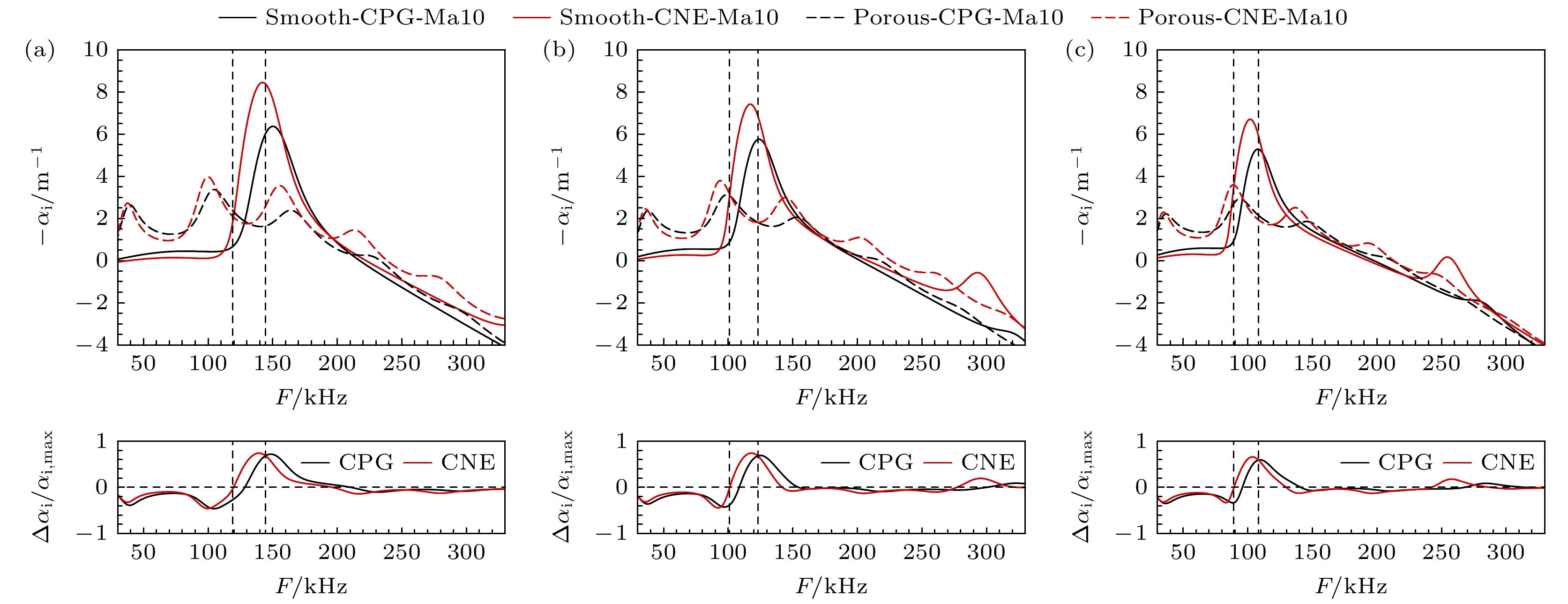

图 12 不同气体模型光滑和多孔壁增长率及其相对变化率对比 (a) x/Lref = 400; (b) x/Lref = 600; (c) x/Lref = 800
Figure 12. Comparing the growth rates of smooth and porous walls and their relative change for different gas models: (a) x/Lref = 400; (b) x/Lref = 600; (c) x/Lref = 800.

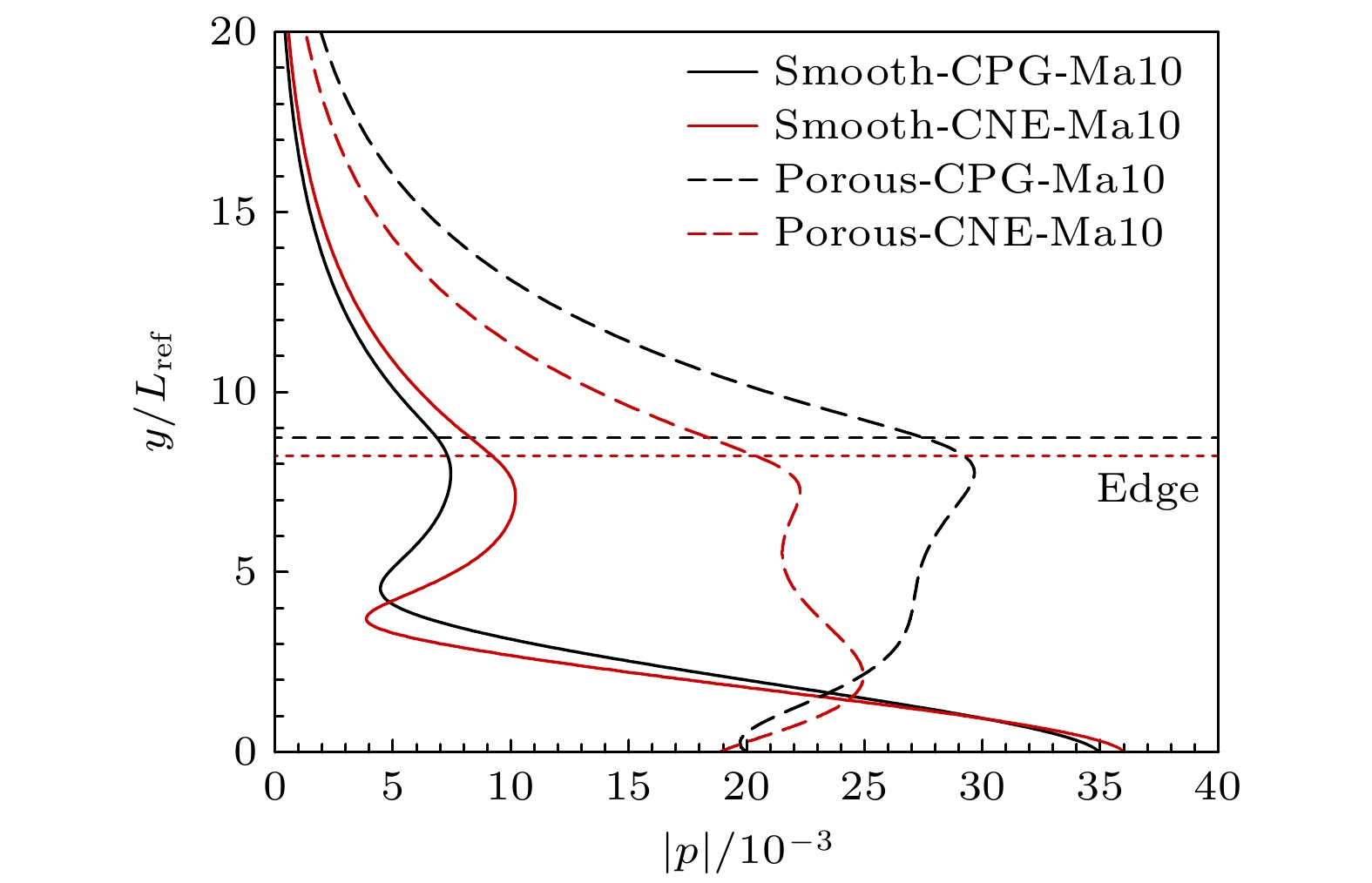

图 13 光滑和多孔壁在x/Lref = 600处压力特征函数对比
Figure 13. Comparison of the pressure eigenfunctions at x/Lref = 600 for smooth and porous walls.

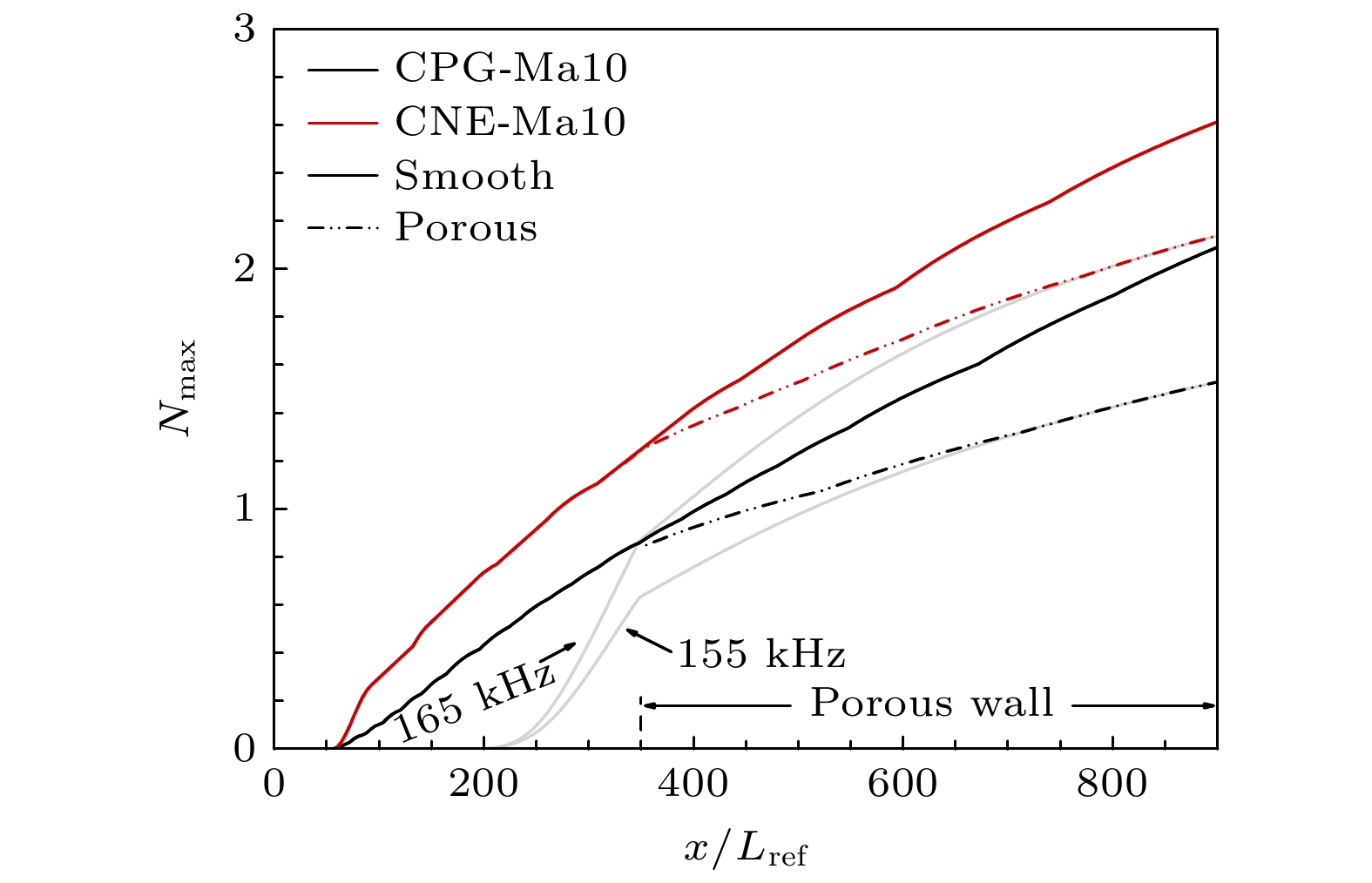

图 14 不同气体模型光滑与多孔壁的N值包络线对比
Figure 14. Comparison of N-value envelope for smooth and porous walls of different gas models.

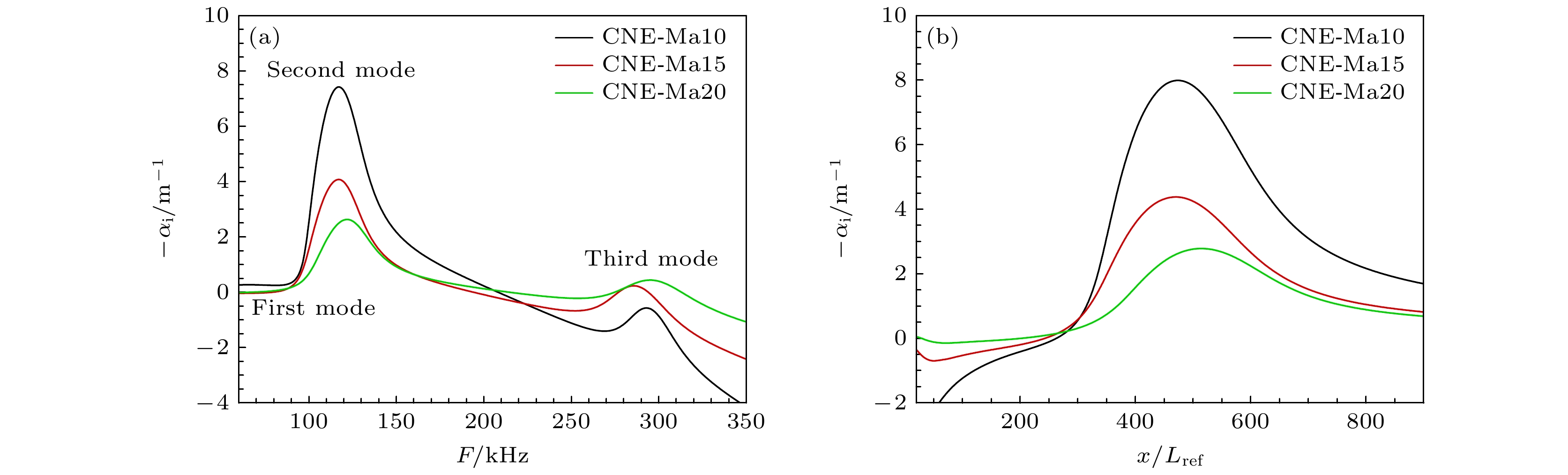

图 15 CNE工况不同马赫数的模态增长率对比 (a) x/Lref = 600; (b) 沿流向F = 130 kHz
Figure 15. Comparison of growth rates at different Mach numbers under CNE condition: (a) x/Lref = 600; (b) modal frequency F = 130 kHz along the streamwise direction

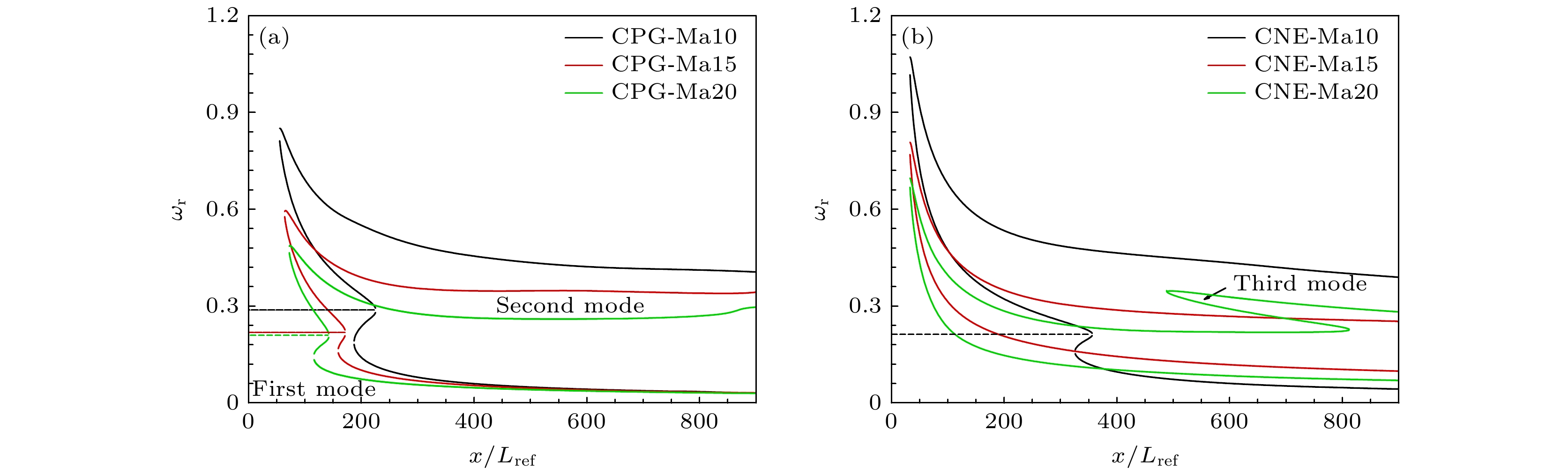

图 16 不同马赫数中性曲线对比 (a) CPG; (b) CNE
Figure 16. Comparison of neutral curves at different Mach numbers: (a) CPG; (b) CNE.

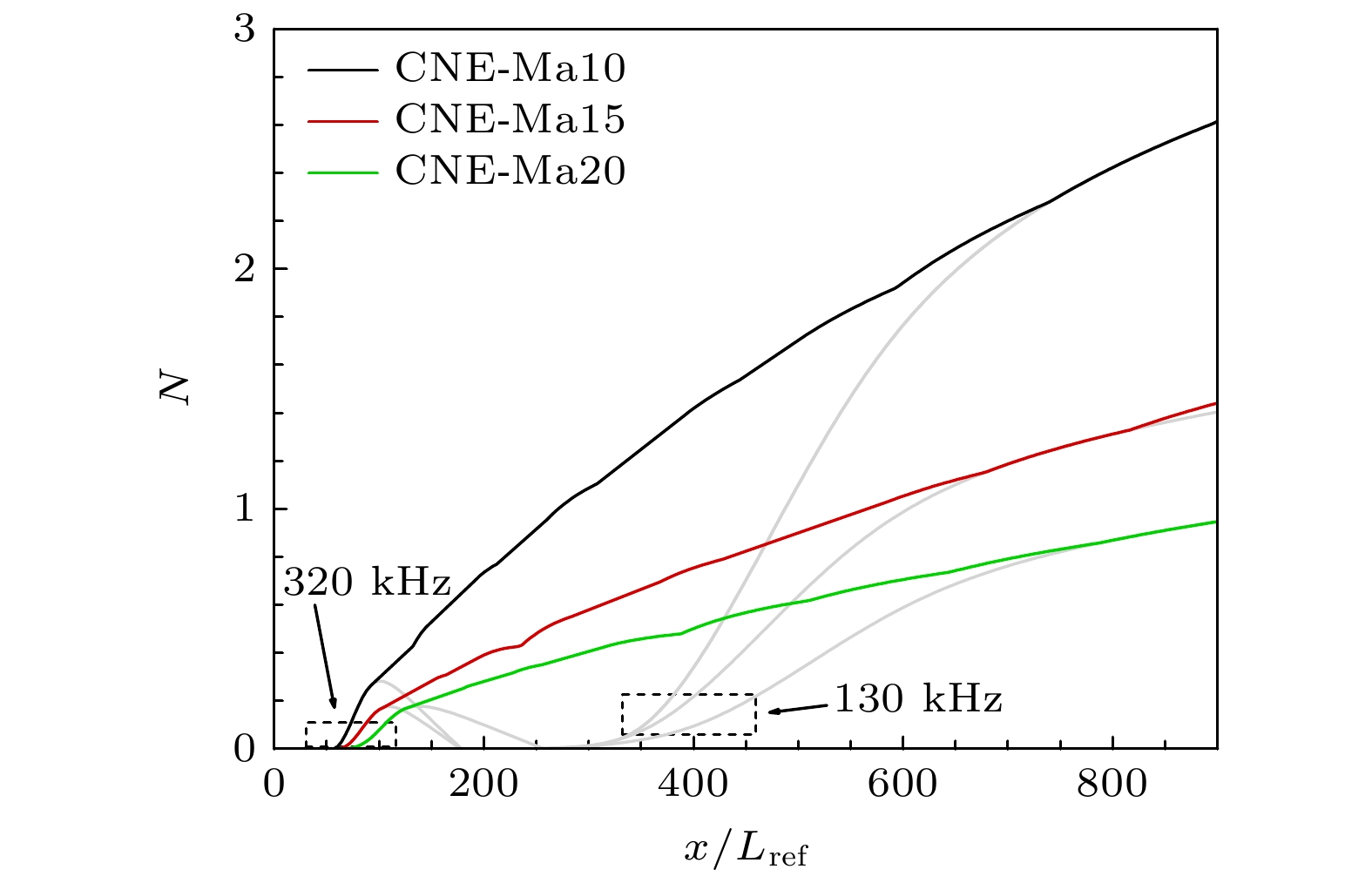

图 17 CNE工况不同马赫数N值包络对比
Figure 17. Comparison of N-value envelopes at different Mach numbers under CNE condition.

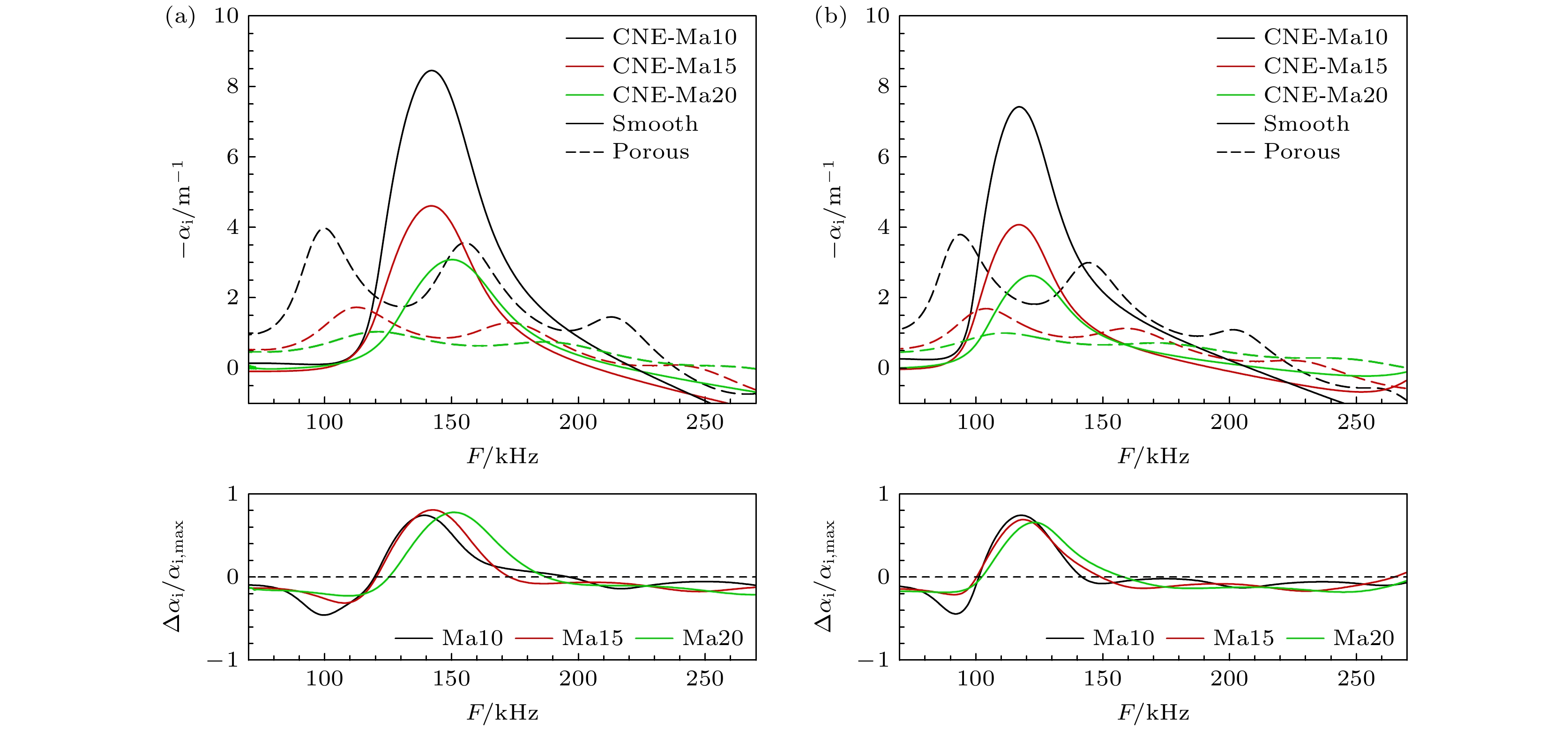

图 18 不同马赫数光滑和多孔壁增长率及相对变化率对比 (a) x/Lref = 400; (b) x/Lref = 600
Figure 18. Comparison of growth rates and relative change of smooth and porous walls at different Mach numbers: (a) x/Lref = 400; (b) x/Lref = 600.

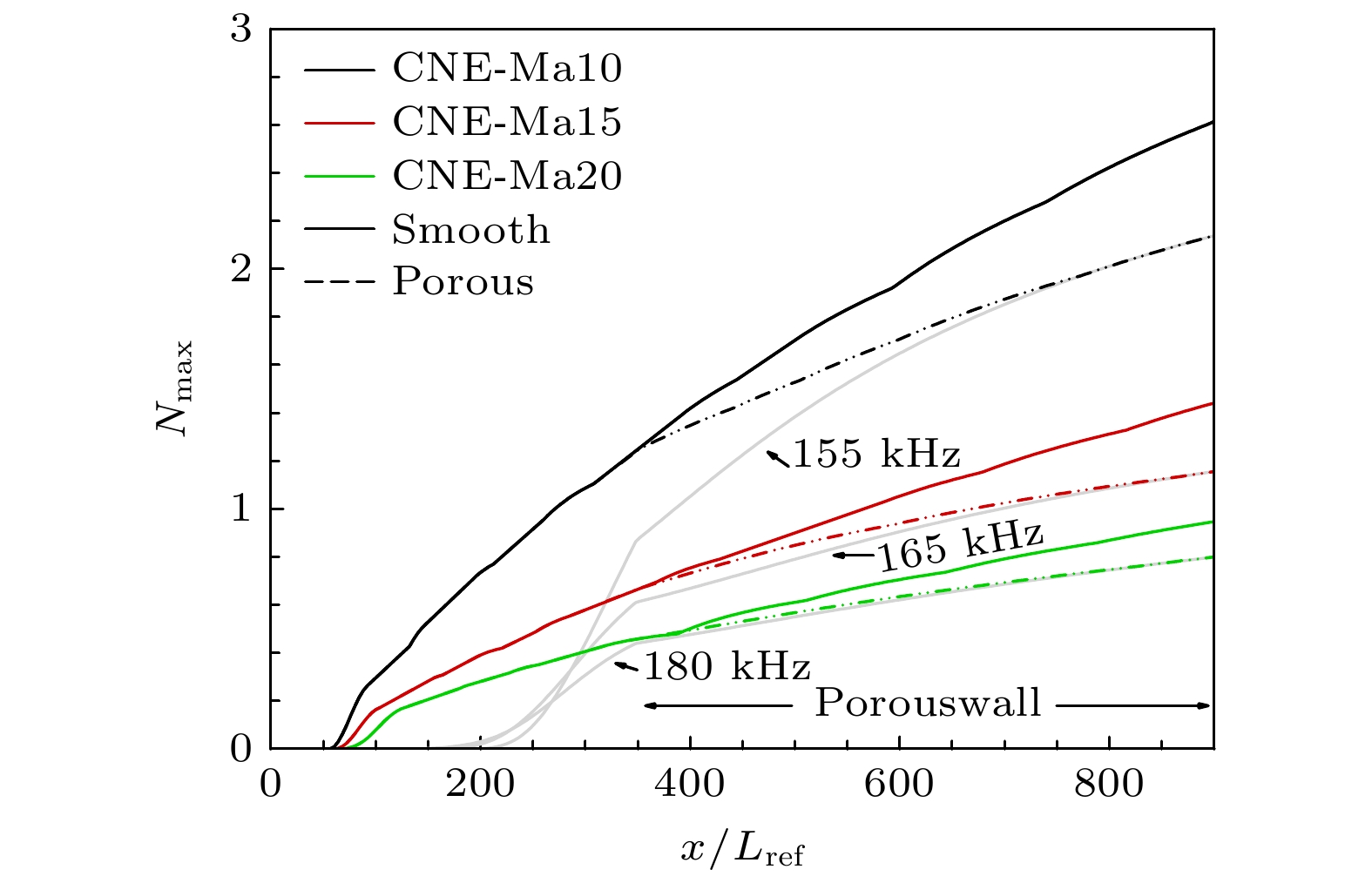

图 19 不同马赫数下光滑与多孔壁的N值包络
Figure 19. N-value envelopes of smooth and porous walls at different Mach numbers.
表 1 不同马赫数对应来流参数
Table 1. Flow characteristics for various Mach numbers.
Ma Te/K ρe/(kg·m–3) Ue/(m·s–1) Re/m–1 10 221.55 0.040085 2983.6 8.26×106 15 221.55 0.040085 4475.4 1.24×107 20 221.55 0.040085 5967.2 1.65×107
DownLoad: CSV
表 3 不同马赫数下x/Lref=900位置的N值相对变化率
Table 3. Relative change of N-values at x/Lref=900 under different Mach numbers.
Ma (ΔN/Nmax, smooth) CPG (ΔN/Nmax, smooth) CNE 10 26.8% 18.2% 15 22.1% 19.8% 20 27.2% 15.5%
DownLoad: CSV
-
