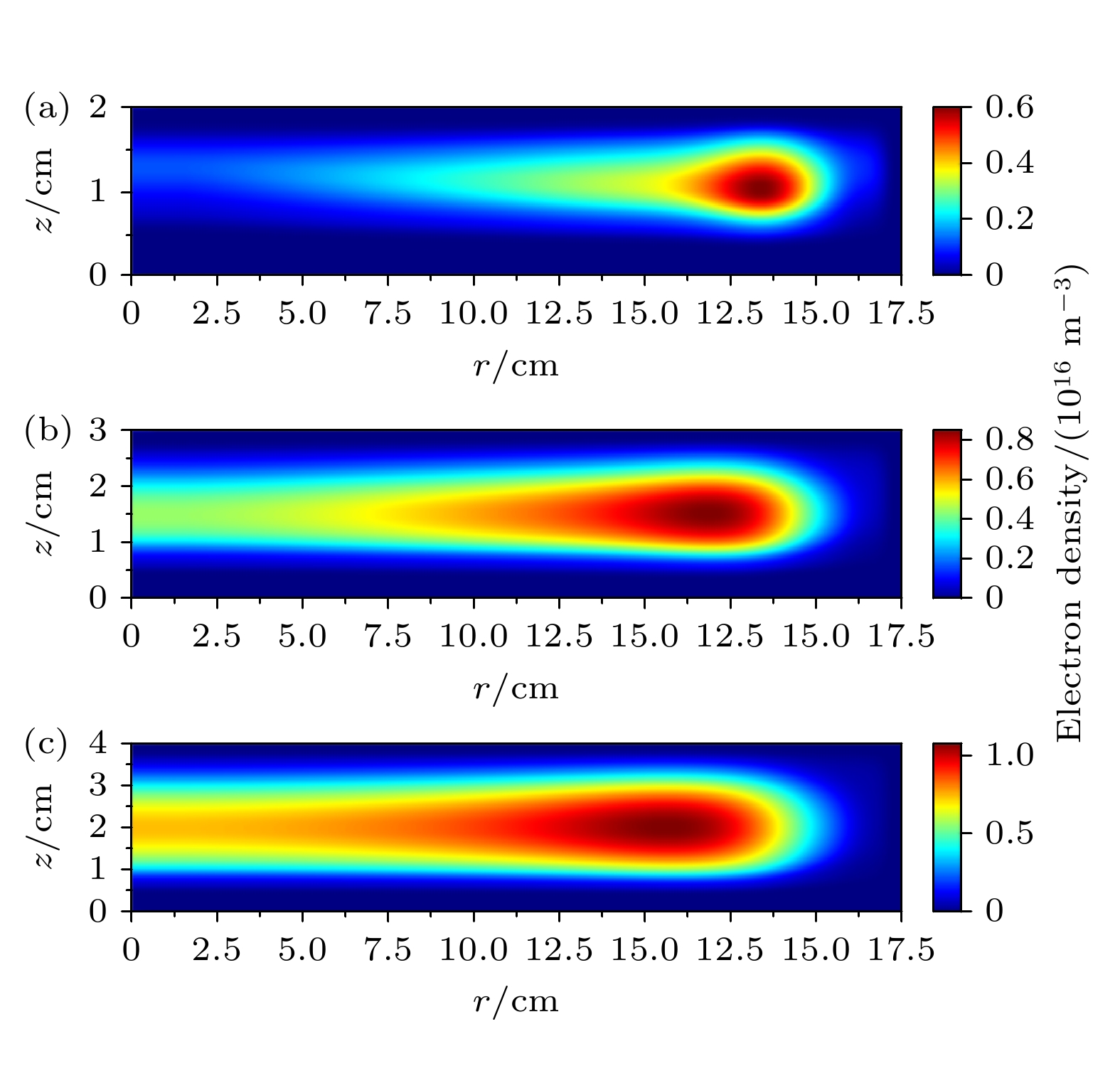

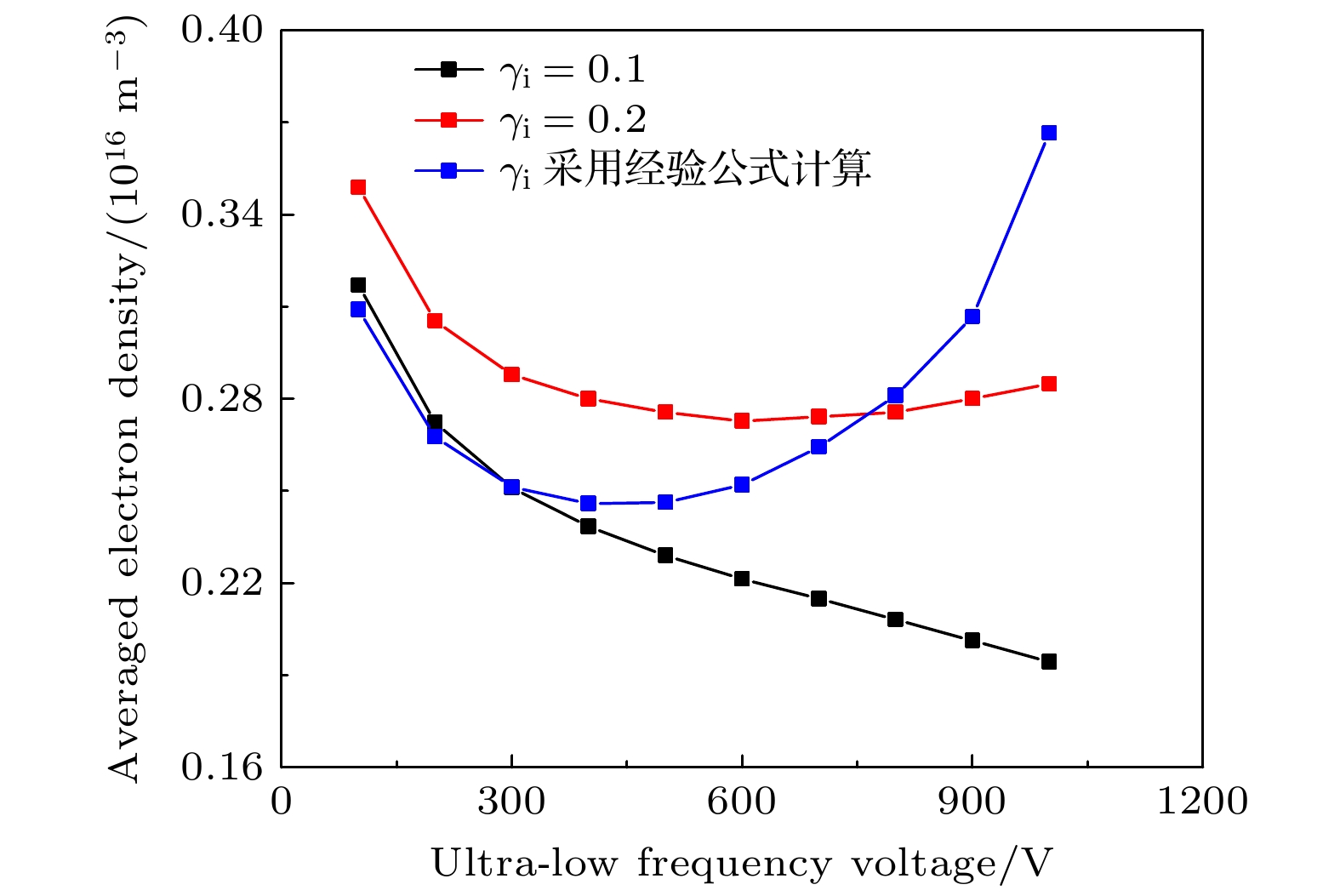

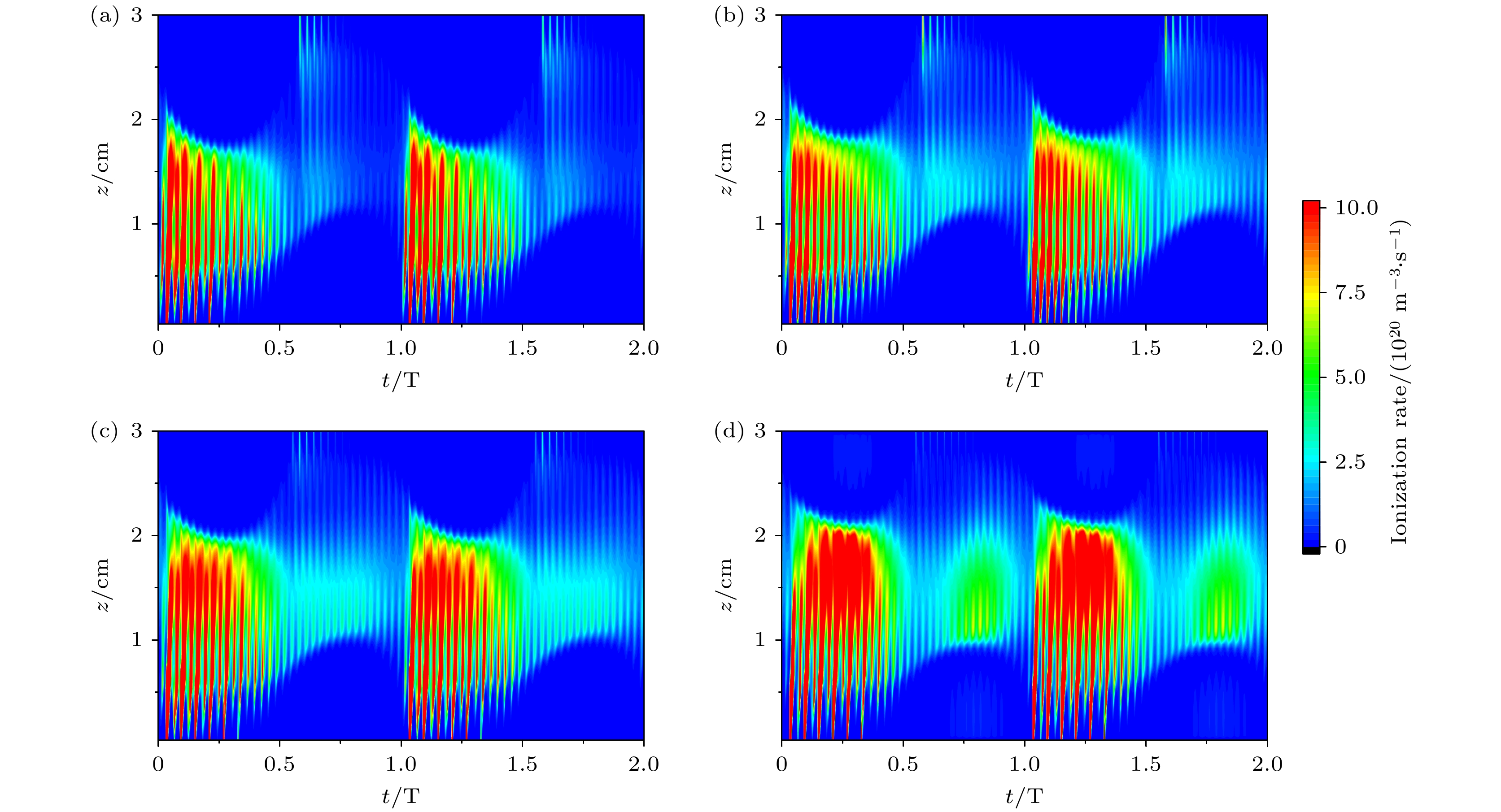

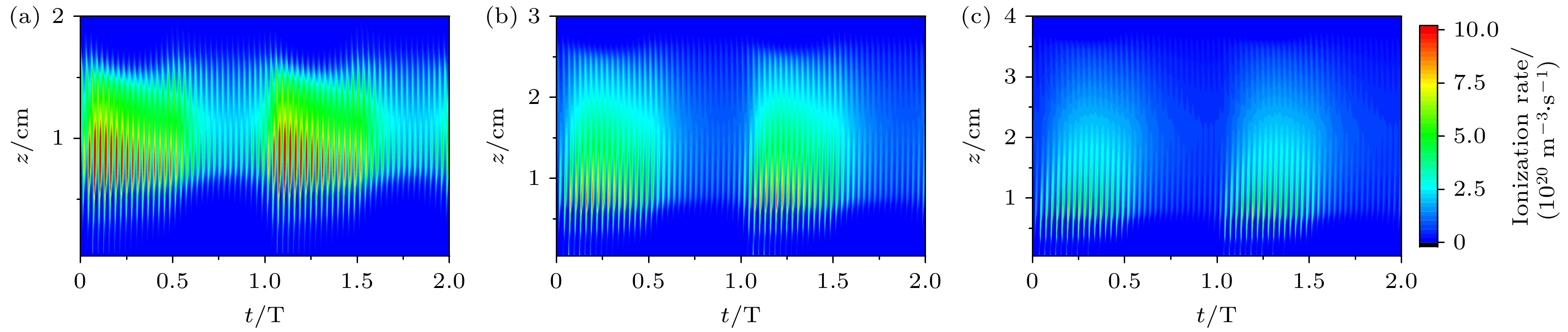

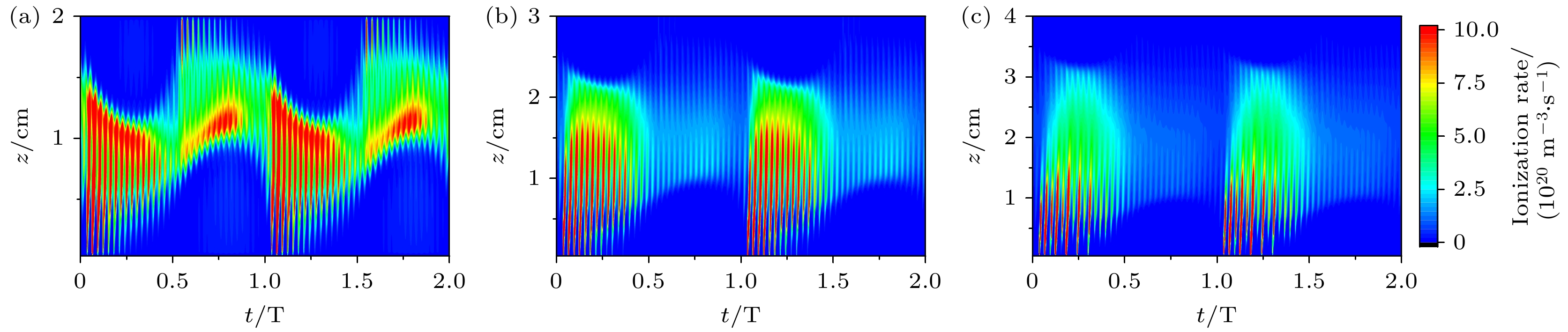

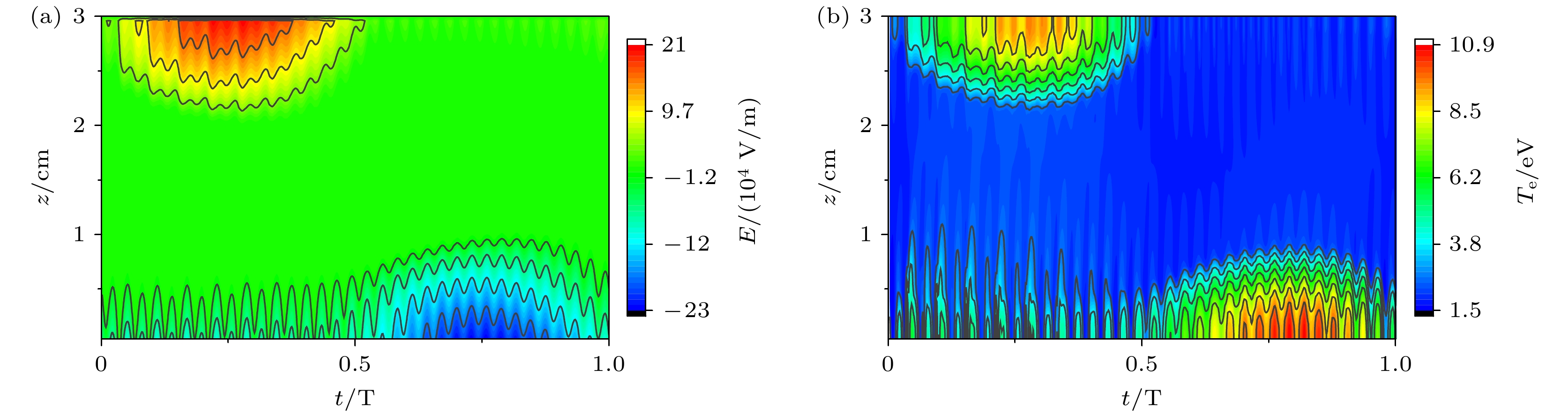

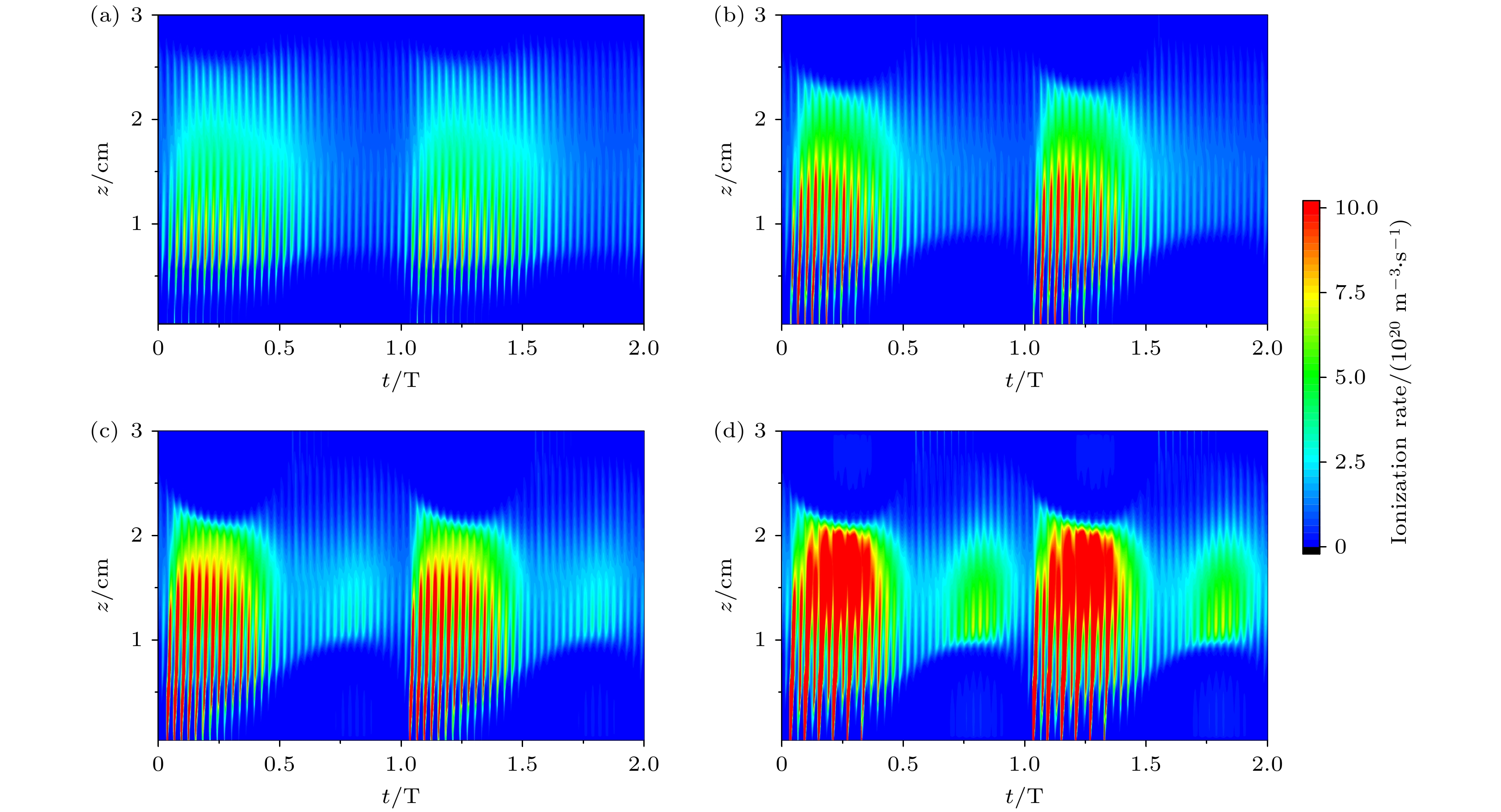

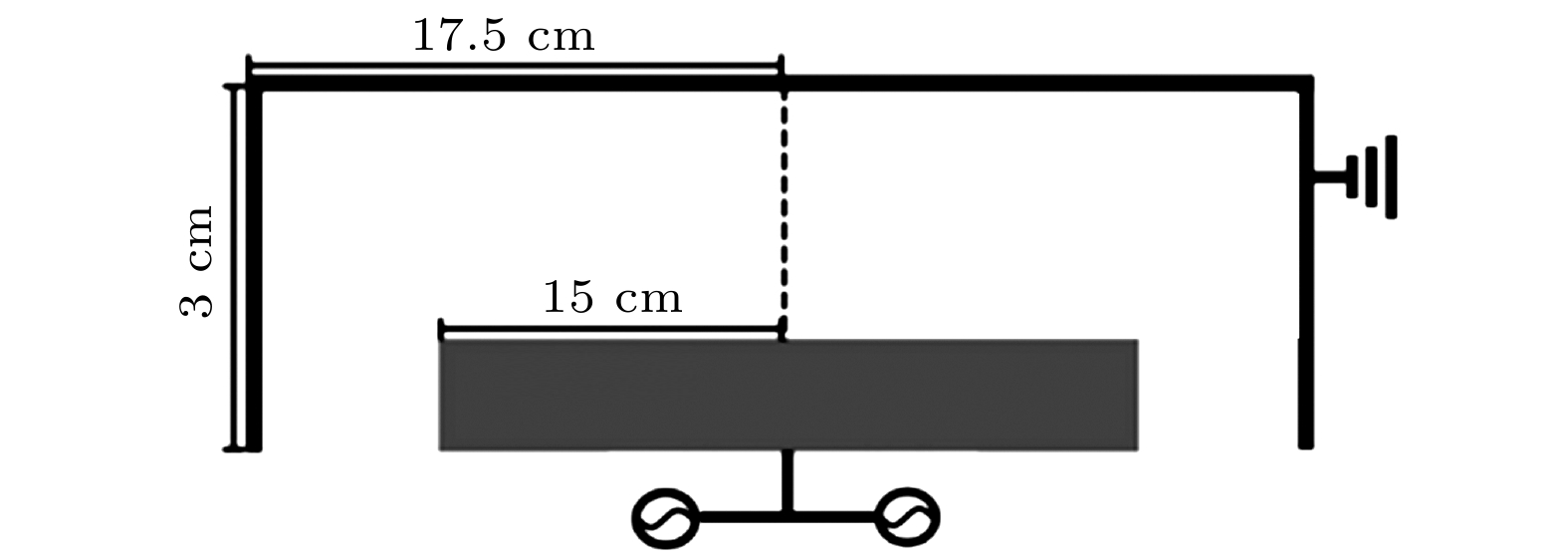

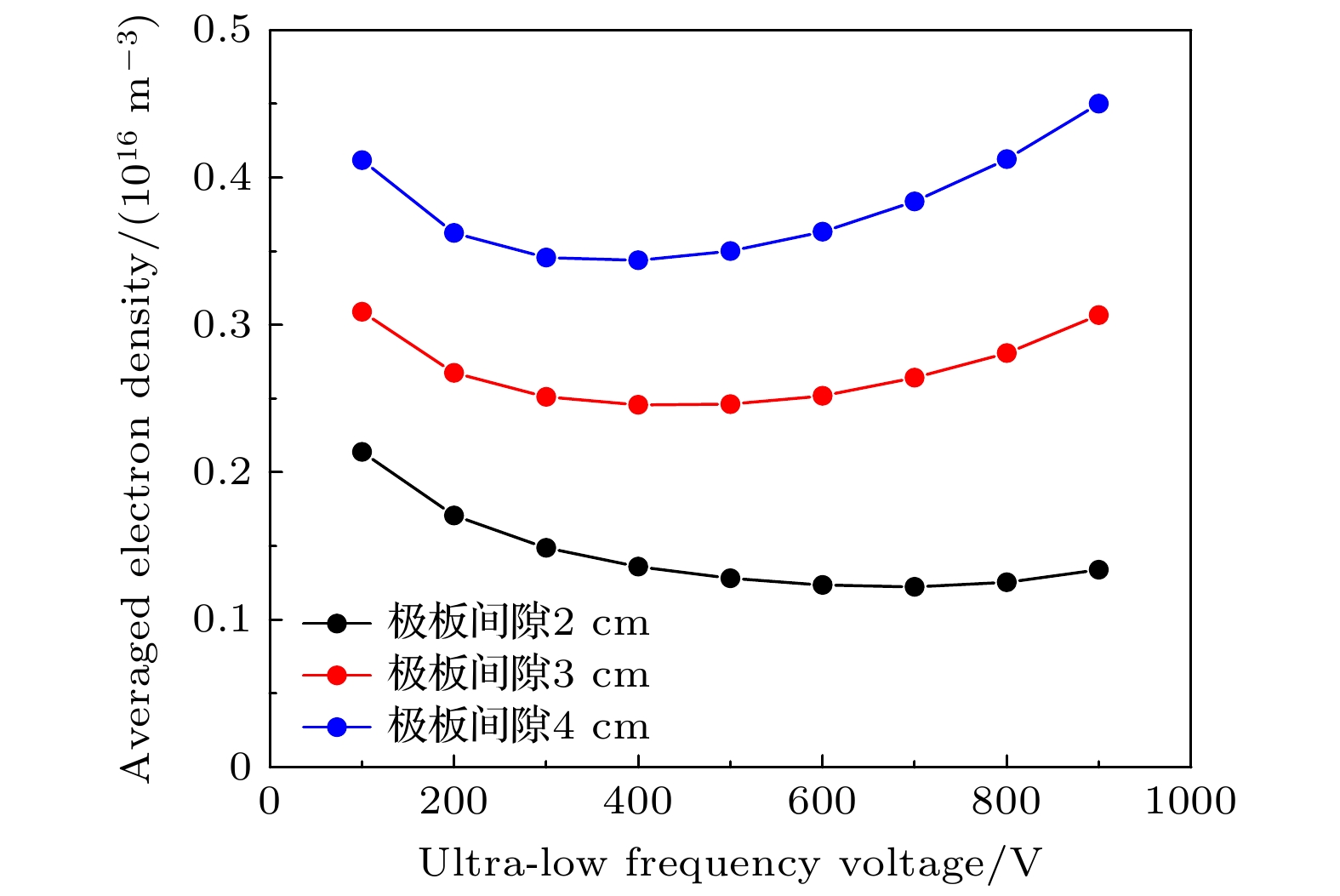

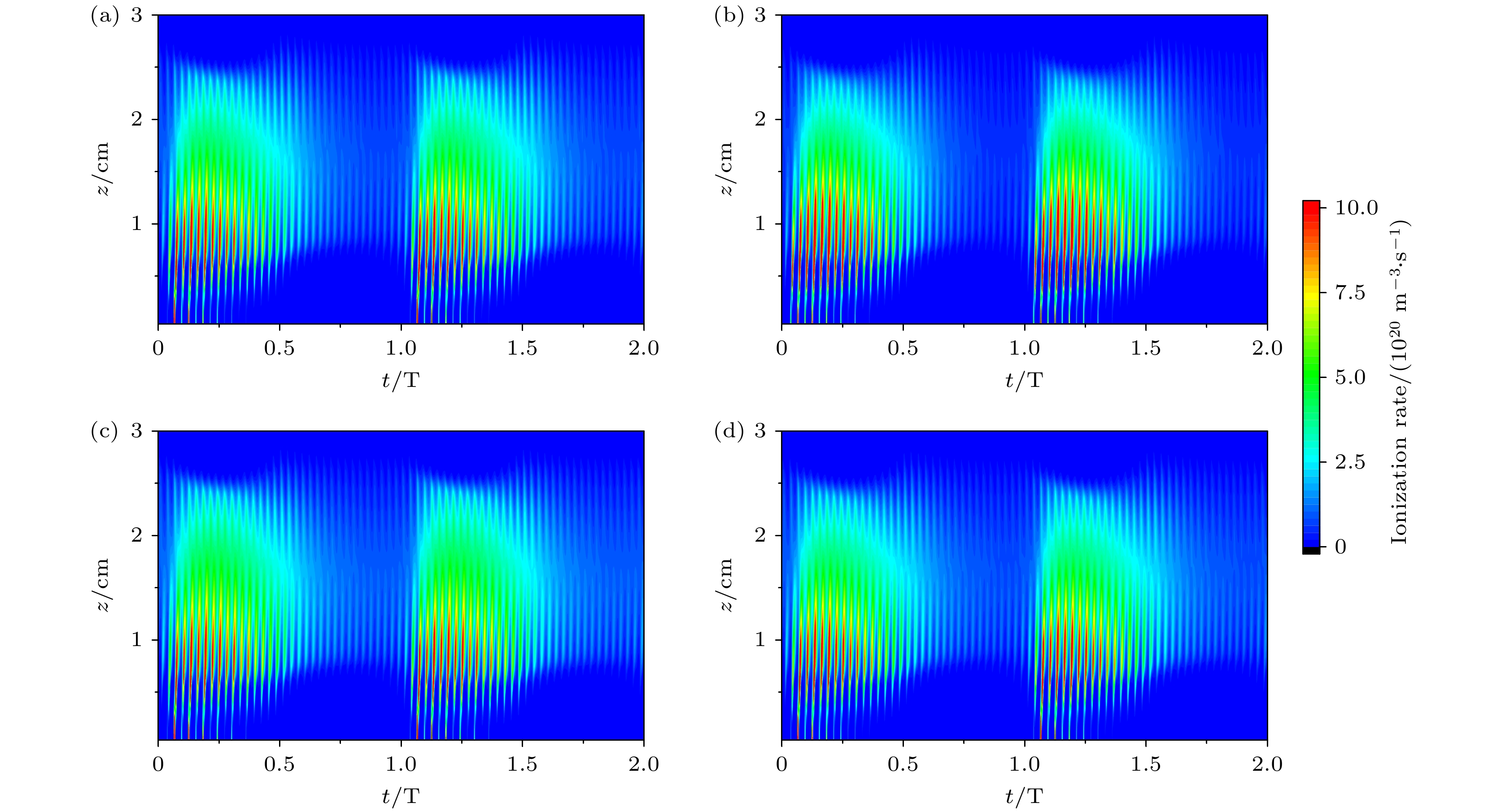

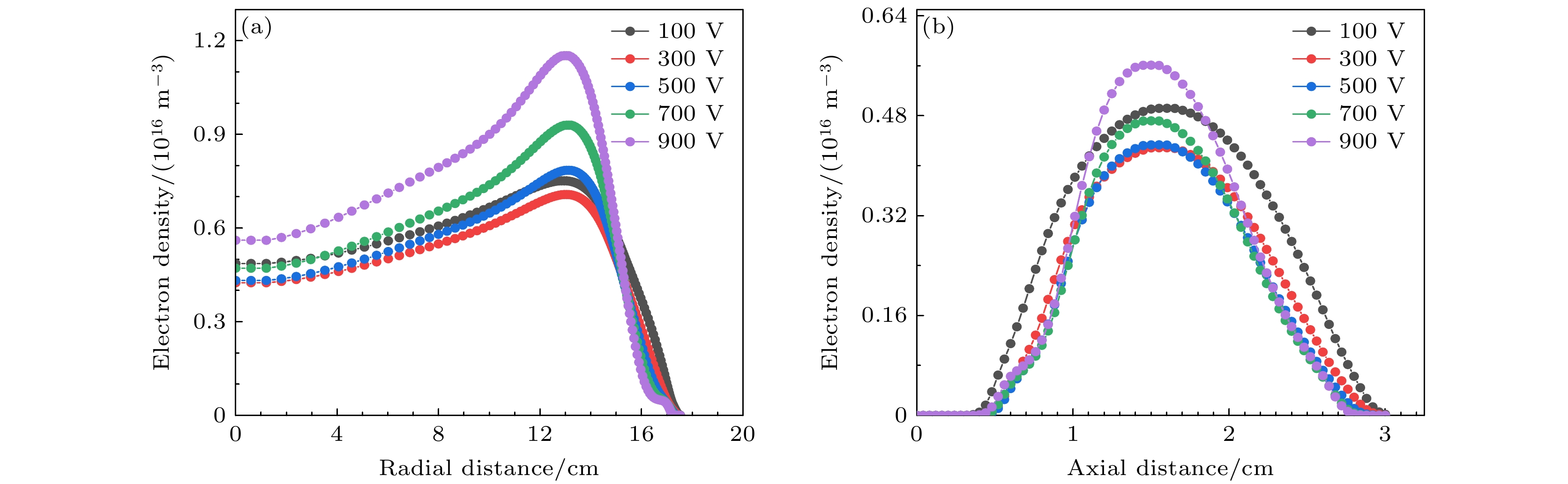

In recent years, capacitively coupled plasmas driven by ultra-low frequency source have garnered increasing attention, because they are beneficial for generating ions with high energy and small scattering angle, which aligns well with the current trend in high aspect ratio etching. Since the sheath becomes thicker when a ultra-low frequency source is applied, the secondary electron emission becomes significant. Indeed, these energetic secondary electrons could enhance the ionization process and even influence the discharge mode. In this work, a two-dimensional fluid model is employed to study the influence of secondary electrons on the dual frequency capacitively coupled plasmas under different ultra-low frequency voltages, secondary electron emission coefficients and inter-electrode gaps. The high frequency is fixed at 13.6 MHz, and the ultra-low frequency is fixed at 400 kHz. First, by using the ion energy dependent secondary electron emission coefficient, it is shown that the electron density first decreases and then increases with ultra-low frequency voltage. This is because on one hand, the higher ultra-low frequency voltage leads to thicker sheath, and therefore, the effective discharge volume is compressed. On the other hand, secondary electrons emitted from electrodes could obtain more energy, and thus enhance the ionization process. By comparing with the results obtained with fixed secondary electron emission coefficients, it is found that in the low voltage range, the evolution of the electron density is similar to that with fixed coefficient of 0.1. While, in the high voltage range, the growth of the electron density is even more pronounced than that with fixed coefficient of 0.2, indicating that the enhancement of the secondary electron effect by ultra-low frequency voltage is non-linear. Finally, the impact of discharge gap on the plasma properties has also been discussed. It is shown that with the increase of inter-electrode gap from 2 cm to 4 cm, the maximum ionization rate becomes lower, but the electron density rises significantly, and the plasma radial uniformity is improved. When inter-electrode gap is large, secondary electrons could collide with neutral species fully, and thus their influence on the electron density at high ultra-low frequency voltage is more pronounced. The results obtained in this paper are helpful to understand the influence of ultra-low frequency source on the secondary electron effect, and provide some guidance for the optimization of plasma processing.
-
Keywords:
- capacitively coupled plasma /
- fluid model /
- ultra-low frequency power /
- secondary electron
-
[1] Dai Z L, Mao M, Wang Y N 2006 Phys 35 693 (in Chinese) [戴忠玲,毛明,王友年 2006 物理 35 693]
[2] Kim S S, Hamaguchi S, Yoon N S, Chang C S, Lee Y D, Ku S H 2001 Phys. Plasmas 8 1384
[3] Tan Y C, Wu S H, Zhu Z X, Xiang Q J, Zhu Z Y, Tian Z 2018 J Synth Cryst 47 1272
[4] Lieberman M A, Lichtenberg A J 2008 Principles of Plasma Discharges and Materials Processing Principles of Plasma Discharges & Materials Processing 11 800
[5] Chabert P, Braithwaite N 2011 Physics of Radio-Frequency Plasmas Cambridge University Press: Cambridge
[6] Lee J K, Manuilenko O V, Babaeva N Y, Kim H C, Shon J W 2005 Plasma Sources Sci. Technol 14 89
[7] Han L, Kenney J, Rauf S, Korolov I, Schulze J 2023 Plasma Sources Sci. Technol 32 115018
[8] Kim H H, Shin J H, Lee H J 2023 J. Vac. Sci. Technol. A 41 023004
[9] Zhou Y, Zhao K, Ma F F, Liu Y X, Gao F, Julian Schulze, Wang Y N 2024 Appl. Phys. Lett 124 064102
[10] Zhou Y, Zhao K, Ma F F, Sun J Y, Liu Y X, Gao F, Zhang Y R, Wang Y N 2025 Plasma Sources Sci. Technol 34 035016
[11] Wang J C, Tian P, Kenney J, Rauf S, Korolov I, Schulze J 2021 Plasma Sources Sci. Technol 30 075031
[12] Liu J, Zhang Q Z, Liu Y X, Gao F, Wang Y N 2013 J. Phys. D: Appl. Phys 46 235202
[13] Hartmann P, Korolov I, Escandon L J, Gennip W V, Buskes K, Schulze J 2022 Plasma Sources Sci. Technol 31 055017
[14] Hartmann P, Wang L, Nosges K, Berger B, Wilczek S, Brinkmann R P, Mussenbrock T, Juhasz Z, Donko Z, Derzsi A, Lee E, Schulze J 2020 Plasma Sources Sci. Technol 29 075014
[15] Liu G H, Wang X Y, Liu Y X, Sun J Y, Wang Y N 2018 Plasma Sources Sci. Technol 27 064004
[16] Schulze J, Donko Z, Luggenholscher D, Czarnetzki U 2009 Plasma Sources Sci. Technol 18 034011
[17] Takagi S, Chikata T, Sekine M 2021 Jpn. J. Appl. Phys 60 SAAB07
[18] Donko Z, Schulze J, Hartmann P, Korolov I, Czarnetzki U, Schungel E 2010 Appl. Phys. Lett 97 081501
[19] Schulze J, Donko Z, Schuengel E, Czarnetzki U 2011 Plasma Sources Sci. Technol 20 045007
[20] Saikia P, Bhuyan H, Yap S L, Escalona M, Favre M, Wyndham E, Schulze J 2019 Phys. Plasmas 26 083505
[21] Zhang Y R, Gao F, Wang Y N 2021 Acta Phys. Sin 70 095206
[22] Zhang Y R, Xiang X, Zhao S X, Bogaerts A, Wang Y N 2010 Phys.Plasma 17 113512
[23] Kurokawa M, Kitajima M, Toyoshima K, Kishino T 2011 Physical Review A 84 062717
[24] De Heer F J, Jansen R H J, Van Der Kaay W 1979 J. Phys. B: Atom. Mol. Phys 12 979
[25] Tachibana K 1986 Phys. Rev. A 34 1007
[26] Rejoub R, Lindsay B G, Stebbings R F 2002 Phys. Rev. A 65 042713
[27] Ali M A, Stone P M 2008 Int. J. Mass Spectrom 271 51
[28] Phelps A V, Pitchford L C, Pedoussat C, Donko Z 1999 Plasma Sources Sci. Technol 8 B1
[29] Brinkmann R P 2007 J. Appl. Phys 102 093303
[30] Hartmann P, Wang L, Nosges K, Berger B, Wilczek S, Brinkmann R P, Mussenbrock T, Juhasz Z, Donko Z, Derzsi A, Lee E, Schulze J 2020 Plasma Sources Sci. Technol 29 075014
[31] Horvath B, Daksha M, Korolov I, Derzsi A, Schulze J 2017 Plasma Sources Sci. Technol 26 124001
[32] Campanell M D, Khrabrov A V, Kaganovich I D 2012 Phys Rev Lett 108 255001
[33] Campanell M D 2013 Phys Rev E 88 033103
