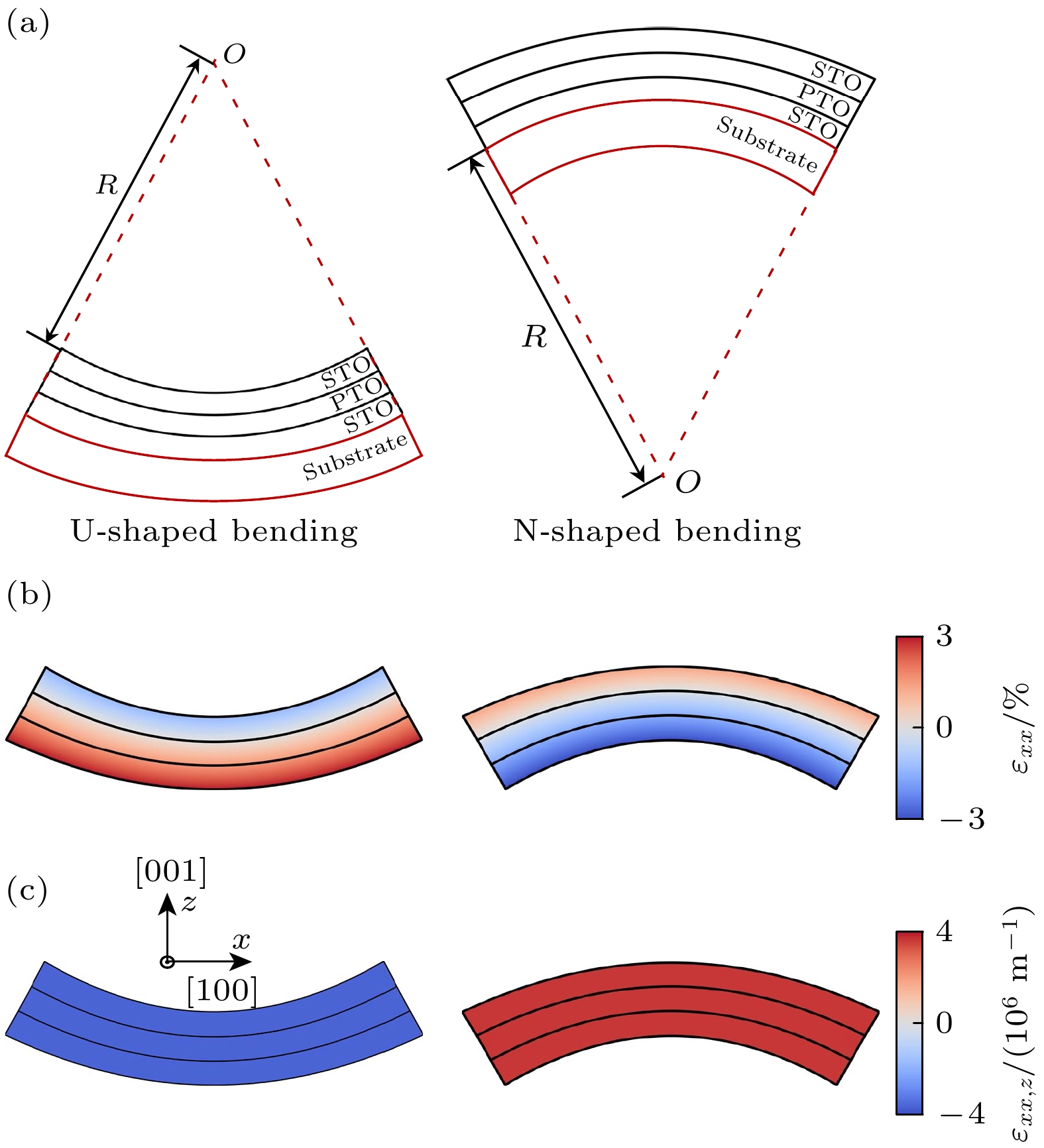

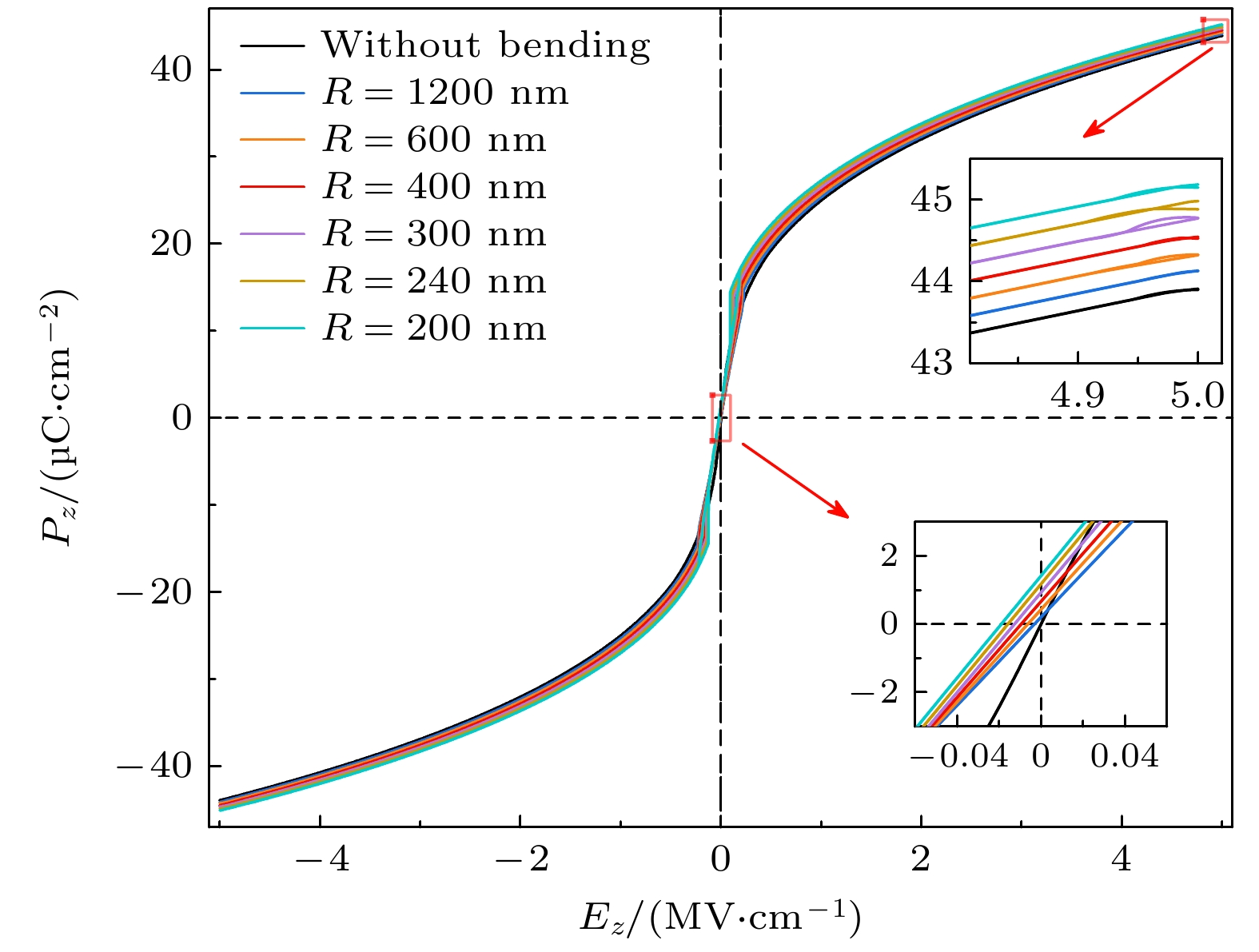

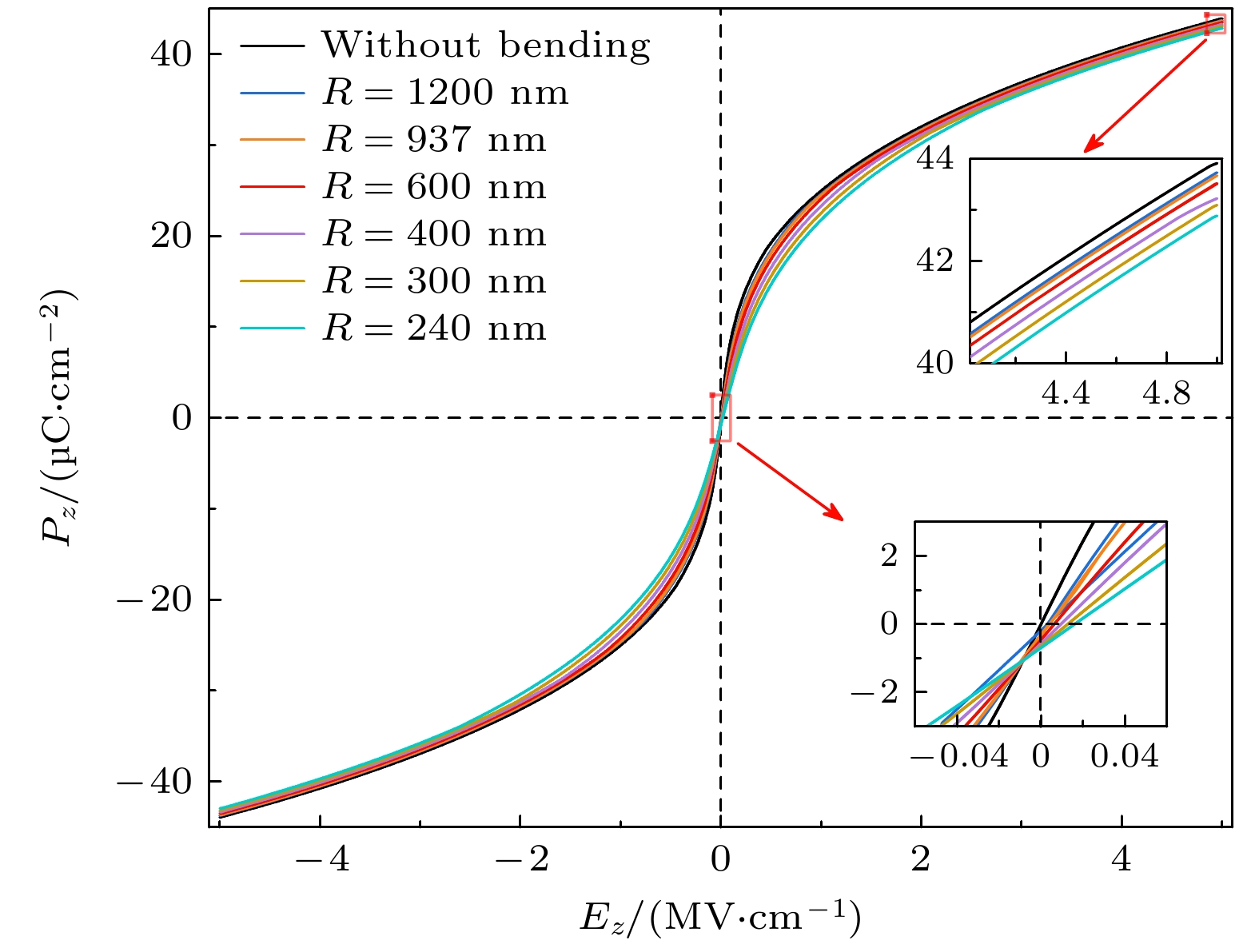

柔性铁电材料在可穿戴电子领域具有重要应用前景，然而其动态弯曲过程中应变梯度与极化翻转的力-电耦合物理机制仍缺乏系统性研究．本研究基于相场模拟，系统探讨了(SrTiO3)10/(PbTiO3)10/(SrTiO3)10三层异质膜在U型和N型弯曲下的畴结构演化及其宏观电学响应．研究表明，通过改变弯曲变形方向可以产生方向相反的挠曲电场，导致电滞回线发生相应方向的偏移．此外，弯曲应变和应变梯度可驱动极性涡旋态与单畴态之间的拓扑相变，其中界面静电能、弹性约束及梯度能的协同作用对拓扑结构的稳定性起关键作用．本研究揭示了弯曲变形通过力-电耦合效应实现畴构型与电响应的定向调控机制，为高密度柔性存储器和能量收集器件的跨尺度设计奠定了理论基础，并进一步拓展了拓扑态工程在柔性电子领域的应用前景．Flexible ferroelectric materials demonstrate considerable potential for wearable electronics and bio-inspired devices, yet their mechano-electric coupling mechanisms under dynamic bending conditions remain incompletely understood. This study systematically investigates the effects of bending deformation on domain structures and macroscopic ferroelectric responses in (SrTiO3)10/(PbTiO3)10/(SrTiO3)10 flexible ferroelectric trilayer films using phase-field simulations. By constructing computational models for upward-concave (U-shaped) and downward-concave (N-shaped) bending configurations, we analyze strain distribution under varying curvature radii and its regulation mechanisms on polarization patterns. Results reveal distinct strain gradients across bending modes: U-shaped bending induces compressive strain in the upper layer and tensile strain in the lower layer, generating a negative out-of-plane strain gradient. Conversely, N-shaped bending reverses this strain distribution. Such inhomogeneous strains drive significant polarization reconfiguration within the PTO layer. At moderate curvature (large R), the system retains stable vortex-antivortex pairs. Reducing bending radius (smaller R) promotes divergent topological transitions—U-shaped bending facilitates vortex pair transformation into zigzag-like domains, while N-shaped bending drives vortex-to-out-of-plane c-domain evolution. Notably, bending-induced strain gradients impose transverse flexoelectric fields that markedly alter trilayer hysteresis loops. U-shaped bending introduces a negative flexoelectric field, shifting loops rightward with reduced maximum polarization (Pmax). In contrast, N-shaped bending generates a positive field, enhancing Pmax via leftward loop shifting. Polarization switching analysis under electric fields further demonstrates bending-mediated control over domain evolution pathways and reversal dynamics. These findings not only elucidate profound bending effects on flexible ferroelectrics’ domain architectures and functional properties but also provide theoretical guidance for designing strain-programmable ferroelectric memories, adaptive sensors, and neuromorphic electronics.
-
Keywords:
- Phase-Field Simulation /
- Bending /
- Strain Gradient /
- Ferroelectric Vortex
-
[1] Setter N, Damjanovic D, Eng L, Fox G, Gevorgian S, Hong S, Kingon A, Kohlstedt H, Park N Y, Stephenson G B, Stolitchnov I, Taganstev A K, Taylor D V, Yamada T, Streiffer S 2006J. Appl. Phys. 100 051606
[2] Martin L W, Rappe A M 2016Nat. Rev. Mater. 2 1
[3] Scott J F, Paz de Araujo C A 1989Science 246 1400
[4] Ramesh R, Aggarwal S, Auciello O 2001Mater. Sci. Eng. R. Rep. 32 191
[5] R. Bowen C, A. Kim H, M. Weaver P, Dunn S 2014Energy Environ. Sci. 7 25
[6] Silva J P B, Silva J M B, Oliveira M J S, Weingärtner T, Sekhar K C, Pereira M, Gomes M J M 2019Adv. Funct. Mater. 29 1807196
[7] Singh A, Monga S, Sharma N, Sreenivas K, Katiyar R S 2022J. Asian Ceram. Soc. 10 275
[8] Lancaster M J, Powell J, Porch A 1998Supercond. Sci. Technol. 11 1323
[9] Wang W, Li J, Liu H, Ge S 2021Adv. Sci. 8 2003074
[10] Han X, Ji Y, Yang Y 2022Adv. Funct. Mater. 32 2109625
[11] Park J S, Jung S Y, Kim D H, Park J H, Jang H W, Kim T G, Baek S H, Lee B C 2023Microsyst. Nanoeng. 9 1
[12] Yu H, Chung C C, Shewmon N, Ho S, Carpenter J H, Larrabee R, Sun T, Jones J L, Ade H, O'Connor B T, So F 2017Adv. Funct. Mater. 27 1700461
[13] Yao M, Cheng Y, Zhou Z, Liu M 2020J. Mater. Chem. C 8 14
[14] Gao W, Zhu Y, Wang Y, Yuan G, Liu J M 2020J. Materiomics 6 1
[15] Jia X, Guo R, Tay B K, Yan X 2022Adv. Funct. Mater. 32 2205933
[16] Ryu J, Priya S, Park C S, Kim K Y, Choi J J, Hahn B D, Yoon W H, Lee B K, Park D S, Park C 2009J. Appl. Phys. 106 024108
[17] Shi Q, Parsonnet E, Cheng X, Fedorova N, Peng R C, Fernandez A, Qualls A, Huang X, Chang X, Zhang H, Pesquera D, Das S, Nikonov D, Young I, Chen L Q, Martin L W, Huang Y L,Íñiguez J, Ramesh R 2022Nat. Commun. 13 1110
[18] Ji D, Cai S, Paudel T R, Sun H, Zhang C, Han L, Wei Y, Zang Y, Gu M, Zhang Y, Gao W, Huyan H, Guo W, Wu D, Gu Z, Tsymbal E Y, Wang P, Nie Y, Pan X 2019Nature 570 87
[19] Dong G, Li S, Yao M, Zhou Z, Zhang Y Q, Han X, Luo Z, Yao J, Peng B, Hu Z, Huang H, Jia T, Li J, Ren W, Ye Z G, Ding X, Sun J, Nan C W, Chen L Q, Li J, Liu M 2019Science 366 475
[20] Peng B, Peng R C, Zhang Y Q, Dong G, Zhou Z, Zhou Y, Li T, Liu Z, Luo Z, Wang S, Xia Y, Qiu R, Cheng X, Xue F, Hu Z, Ren W, Ye Z G, Chen L Q, Shan Z, Min T, Liu M 2020Sci. Adv. 6 eaba5847
[21] Zhou Y, Guo C, Dong G, Liu H, Zhou Z, Niu B, Wu D, Li T, Huang H, Liu M, Min T 2022Nano Lett. 22 2859
[22] Cai S, Lun Y, Ji D, Lv P, Han L, Guo C, Zang Y, Gao S, Wei Y, Gu M, Zhang C, Gu Z, Wang X, Addiego C, Fang D, Nie Y, Hong J, Wang P, Pan X 2022Nat. Commun. 13 5116
[23] Wang J, Liu Z, Wang Q, Nie F, Chen Y, Tian G, Fang H, He B, Guo J, Zheng L, Li C, Lü W, Yan S 2024Adv. Sci. 11 2401657
[24] Tanwani M, Gupta P, Powar S, Das S 2025Small 21 2405688
[25] Yadav A K, Nelson C T, Hsu S L, Hong Z, Clarkson J D, Schlepütz C M, Damodaran A R, Shafer P, Arenholz E, Dedon L R, Chen D, Vishwanath A, Minor A M, Chen L Q, Scott J F, Martin L W, Ramesh R 2016Nature 530 198
[26] Hsu S L, McCarter M R, Dai C, Hong Z, Chen L Q, Nelson C T, Martin L W, Ramesh R 2019Adv. Mater. 31 1901014
[27] Hong Z, Damodaran A R, Xue F, Hsu S L, Britson J, Yadav A K, Nelson C T, Wang J J, Scott J F, Martin L W, Ramesh R, Chen L Q 2017Nano Lett. 17 2246
[28] Das S, Tang Y L, Hong Z, Gonçalves M a. P, McCarter M R, Klewe C, Nguyen K X, Gómez-Ortiz F, Shafer P, Arenholz E, Stoica V A, Hsu S L, Wang B, Ophus C, Liu J F, Nelson C T, Saremi S, Prasad B, Mei A B, Schlom D G,Íñiguez J, García-Fernández P, Muller D A, Chen L Q, Junquera J, Martin L W, Ramesh R 2019Nature 568 368
[29] Lun Y, Wang X, Kang J, Ren Q, Wang T, Han W, Gao Z, Huang H, Chen Y, Chen L Q, Fang D, Hong J 2023Adv. Mater. 35 2302320
[30] Guo C, Yang H, Dong S, Tang S, Wang J, Wang X, Huang H 2024Adv. Electron. Mater. 10 2400001
[31] Guo C, Wang J, Huang H 2024Appl. Phys. Lett. 125 062903
[32] Zhou M J, Peng K, Tan Y, Yang T, Chen L Q, Nan C W 2025Acta Mater. 120805
[33] 刘迪,王静,王俊升,黄厚兵2020 69127801Liu D, Wang J, Wang J S, Huang H B 2020Acta Phys. Sin. 69 127801
[34] 高荣贞,王静,王俊升,黄厚兵2020 69217801Gao R Z, Wang J, Wang J S, Huang H B 2020Acta Phys. Sin. 69 217801
[35] 梁德山,黄厚兵,赵亚楠,柳祝红,王浩宇,马星桥2021 70 044202 Liang D S, Huang H B, Zhao Y N, Liu Z H, Wang H Y, Ma X Q 2021Acta Phys. Sin. 70 044202
[36] Li Y, Zatterin E, Conroy M, Pylypets A, Borodavka F, Björling A, Groenendijk D J, Lesne E, Clancy A J, Hadjimichael M, Kepaptsoglou D, Ramasse Q M, Caviglia A D, Hlinka J, Bangert U, Leake S J, Zubko P 2022Adv. Mater. 34 2106826
[37] Li Q, Nelson C T, Hsu S L, Damodaran A R, Li L L, Yadav A K, McCarter M, Martin L W, Ramesh R, Kalinin S V 2017Nat. Commun. 8 1468
[38] Xu T, Wu C, Zheng S, Wang Y, Wang J, Hirakata H, Kitamura T, Shimada T 2024Phys. Rev. Lett. 132 086801
