The double-ring perfect vortex beam (DR-PVB) is generated through the superposition of two concentric perfect vortex beams (PVBs). In this work, firstly, the intensity and phase distribution of the DR-PVB in the source plane are studied. Secondly, based on the Huygens-Fresnel principle and the Collins formula, the intensity distribution of the DR-PVB after being focused by an ABCD optical system that includes a focusing lens is obtained. The results indicate that the intensity distribution of the focused beam is consistent with the interference pattern of two Bessel Gaussian beams. Furthermore, the number of spots in the focused intensity distribution is a multiple of the absolute value of the difference in topological charges between two PVBs. On the other hand, the overall size of the light beam can be adjusted by changing the focal length of the lens. Thirdly, the optical radiation force, exerted by the focused DR-PVB, on Rayleigh particles with different refractive indices, silica and bubbles, are analyzed, respectively. The results show that the focused DR-PVB can capture both high and low refractive index particles in water. In addition, by comparing the focused DR-PVBs under different radius combinations, it found that the light intensity distribution can be changed with the beam radius, which leads the position and quantity of the captured particles to change. This result provides a new idea for adjusting the capture of particles in future experiments. Finally, the gradient forces, scattering, and Brownian forces acting on the particles in the x, y, and z directions are analyzed, respectively. Based on our analysis, the condition for stable particle capture, where the gradient force must overcome the effects of Brownian motion and scattering forces, is established. Therefore, the theoretical size range of particles that can be captured by the focused DR-PVB is determined. Compared with other beams, such as Airy beams and Bessel beams, the focused DR-PVB can be modulated by changing the topological charges of the two PVBs, making it possible to capture multiple particles. These results have potential applications in optical manipulation.
-
图 1 PVB在源平面处的光强分布图和相位分布图 (a1), (a2) R = 600 μm, m = –5; (b1), (b2) R = 600 μm, m = 5; (c1), (c2) R = 800 μm, m = 3; (d1), (d2) R = 800 μm, m = 5
Figure 1. Intensity distribution and phase distribution of PVB at the source plane: (a1), (a2) R = 600 μm, m = –5; (b1), (b2) R = 600 μm, m = 5; (c1), (c2 ) R = 800 μm, m = 3; (d1), (d2) R = 800 μm, m = 5.
图 2 DR-PVB在源平面处(z = 0)的光强分布图和相位分布图 (a) (b) R1 = 600 μm, m1 = –5; R2 = 800 μm, m2 = 5; (c) (d) R1 = 500 μm, m1 = –5; R2 = 800 μm, m2 = 5
Figure 2. Intensity distribution and phase distribution of DR-PVB at the source plane (z = 0): (a), (b) R1 = 600 μm, m1 = –5; R2 = 800 μm, m2 = 5; (c), (d) R1 = 500 μm, m1 = –5; R2 = 800 μm, m2 = 5.

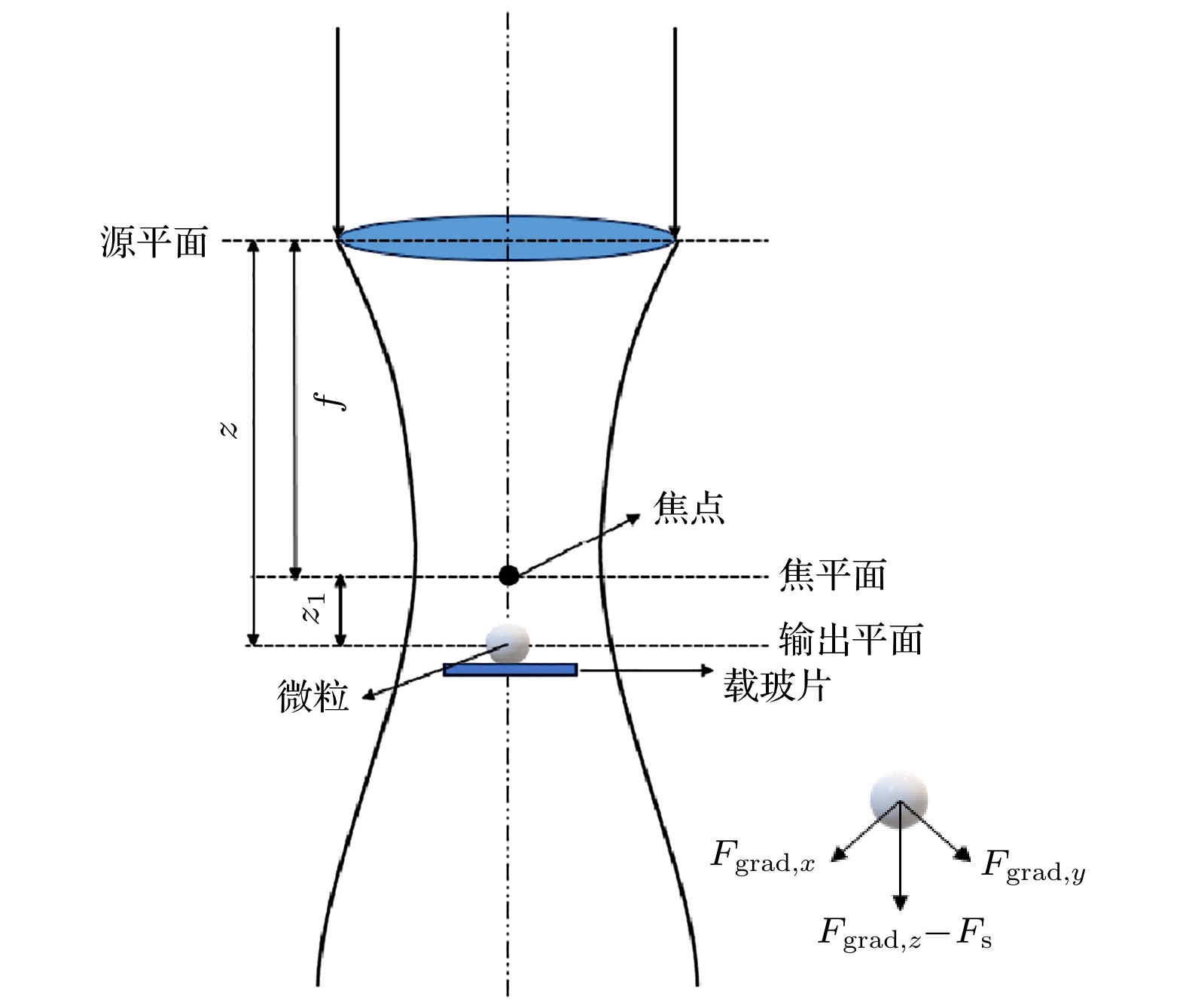

图 4 DR-PVB在焦平面处的光强分布, f = 5 mm, λ0 = 0.6328 μm (a) R1 = 600 μm, m1 = –5; R2 = 800 μm, m2 = 5; (b) R1 = 500 μm, m1 = –5; R2 = 800 μm, m2 = 5
Figure 4. Intensity distribution of DR-PVB at the focal plane, f = 5 mm, λ0 = 0.6328 μm: (a) R1 = 600 μm, m1 = –5; R2 = 800 μm, m2 = 5; (b) R1 = 500 μm, m1 = –5; R2 = 800 μm, m2 = 5.
图 5 聚焦DR-PVB对高折射率微粒在x-y平面的光辐射力分布, 箭头表示FGrad, x和FGrad, y合力的方向, 背景为焦平面处的光强分布, nm = 1.332, np = 1.592, a = 5 nm (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm; 其余参数与图4相同
Figure 5. Distribution of optical radiation force in the x-y plane for high refractive index particles by focused DR-PVB, the arrows indicate the direction of the combined FGrad, x and FGrad, y, and the background is the intensity distribution at the focal plane, nm = 1.332, np = 1.592, a = 5 nm: (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm; R2 = 800 μm; the rest of the parameters are the same as in Fig. 4.
图 6 微粒在不同光强极大值位置处受到的光辐射力随x轴或y轴的变化图 (a), R1 = 800 μm, (b) R2 = 600 μm; (c), R1 = 800 μm, (d) R2 = 500 μm, 其余参数与图5相同
Figure 6. Plots of the variation of the optical radiative force received by the particles at the positions of different light intensity maxima with the x-axis or y-axis: (a), (b) R1 = 800 μm, R2 = 600 μm; (c), (d) R1 = 800 μm, R2 = 500 μm, and the rest of the parameters are the same as in Fig. 5.
图 7 微粒在点附近受到的z轴方向光辐射力Fz(FGrad, z+Fscat)随z轴坐标的变化 (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm, 其余参数与图5相同
Figure 7. Variation of z-axis oriented optical radiation force Fz(FGrad, z+Fscat) with z-axis coordinates for particles near the point: (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm, and the rest of the parameters are the same as in Fig. 5.
图 8 聚焦DR-PVB对低折射率微粒在x-y平面的光辐射力分布, np = 1, nm = 1.332, a = 5 nm (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm; 其余参数与图4相同
Figure 8. Distribution of optical radiation force in the x-y plane for low refractive index particles by focused DR-PVB, np = 1, nm = 1.332, a = 5 nm: (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm; the rest of the parameters are the same as in Fig. 4.

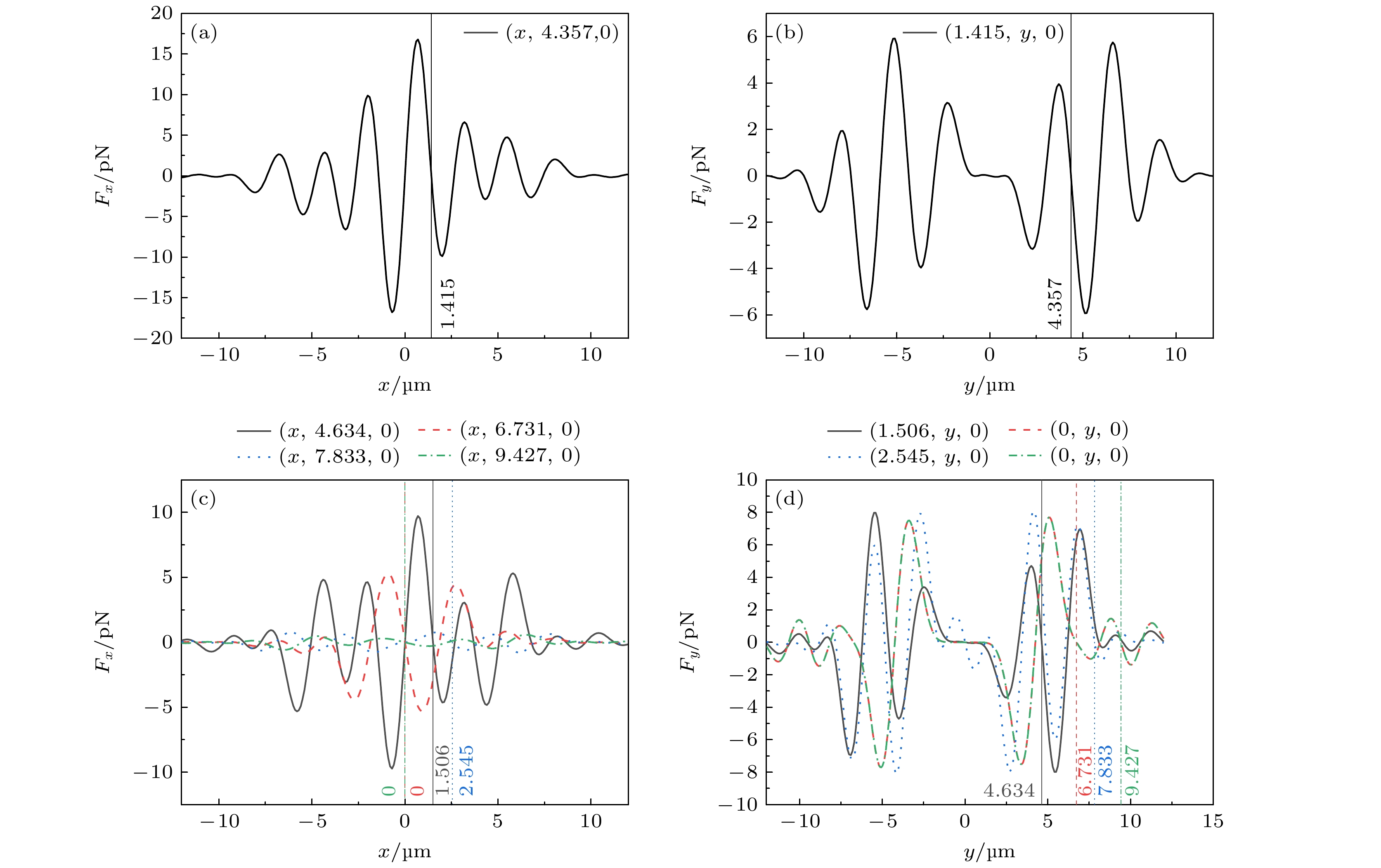

图 9 微粒在光强极小值位置处受到的光辐射力随x轴或y轴的变化图 (a), (b) R1 = 800 μm, R2 = 600 μm; (c), (d) R1 = 800 μm, R2 = 500 μm, 其余参数与图8相同
Figure 9. Plots of the optical radiation force on particles at the position of the light intensity minima versus the x-axis or y-axis: (a), (b) R1 = 800 μm, R2 = 600 μm; (c), (d) R1 = 800 μm, R2 = 500 μm, and the rest of the parameters are the same as in Fig. 8.
图 10 微粒在光强极小值点附近受到的光辐射力Fz(FGrad, z + Fscat)随z轴坐标的变化 (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm, 其余参数与图8相同
Figure 10. Variation of z-axis-directed optical radiation Fz(FGrad, z + Fscat) received by particles near the point of light intensity minima with z-axis coordinates: (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm, and the rest of the parameters are the same as in Fig. 8.
图 11 在不同R组合情况下, 高(np = 1.592)、低(np = 1)折射率粒子所受到的最大轴向梯度力FGrad, zmax跟其他力(FB, FScat)的比值随粒子半径的变化图, nm = 1.332 (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm, 其余参数与图4相同
Figure 11. Plots of the ratio of the maximum axial gradient force FGrad, zmax to the other forces (FB, FScat) with respect to the particle radius for high (np = 1.592) and low (np = 1) refractive index particles for different R combinations, nm = 1.332: (a) R1 = 600 μm, R2 = 800 μm; (b) R1 = 500 μm, R2 = 800 μm, and the rest of the parameters are the same as in Fig. 4.
不同R组合 焦平面处光强极大值位置 R1 = 800 μm,
R2 = 600 μm第1组 (0, ±4.286, 0), (±2.519, ±3.467, 0), (±4.076, ±1.324, 0) 第2组 (±1.898, ±5.843, 0), (±4.97, ±3.611, 0), (±6.144, 0, 0) 第3组 (±2.69, ±8.27, 0), (±7.043, ±5.117, 0), (±8.706, 0, 0) R1 = 800 μm,
R2 = 500 μm第1组 (0, ±4.244, 0), (±2.494, ±3.433, 0), (±4.036, ±1.311, 0) 第2组 (±1.996, ±6.145, 0), (±5.227, ±3.798, 0), (±6.461, 0, 0) 第3组 (0, ±8.160, 0), (±4.796, ±6.601, 0), (±7.760, ±2.521, 0) 第4组 (±2.839, ±8.740, 0), (±7.435, ±5.401, 0), (±9.190, 0, 0) 第5组 (0, ±10.658, 0), (±10.136, ±3.293, 0), (±6.264, ±8.622, 0) 表 2 不同R组合情况下聚焦DR-PVB对高折射率粒子的俘获位置
Table 2. Capture positions of high refractive index particles by focused DR-PVB for different R combinations.
不同R组合 稳定俘获位置 R1 = 600 μm, R2 = 800 μm 第1组 (0, ±4.286, –0.502) (±2.519, ±3.467, –0.502) (±4.076, ±1.324, –0.502) 第2组 (±1.898, ±5.843, –0.427) (±4.97, ±3.611, –0.427) (±6.144, 0, –0.427) 第3组 (±2.69, ±8.27, –0.745) (±7.043, ±5.117, –0.745) (±8.706, 0, –0.745) R1 = 500 μm, R2 = 800 μm 第1组 (0, ±4.244, –0.346) (±2.49, ±3.43, –0.346) (±4.03, ±1.31, –0.346) 第2组 (±1.99, ±6.14, –0.308) (±5.22, ±3.79, –0.308) (±6.46, 0, –0.308) 第3组 (0, ±8.160, –0.2) (±4.796, ±6.601, –0.2) (±7.760, ±2.521, –0.2) 第4组 (0, ±10.658, –0.37) (±10.136, ±3.293, –0.37) (±6.264, ±8.622, –0.37) 表 3 图8中光强极小值位置
Table 3. Location of light intensity minima in Fig. 8.
不同R组合 焦平面处光强极小值位置 R1 = 800 μm, R2 = 600 μm 第1组 (±1.415, ±4.357, 0), (±3.706, ±2.693, 0), (±4.581, 0, 0) R1 = 800 μm, R2 = 500 μm 第1组 (±1.505, ±4.634, 0) (±3.942, ±2.864, 0) (±4.872, 0, 0) 2组 (0, ±6.731, 0) (±3.956, ±5.445, 0) (±6.401, ±2.08, 0) 第3组 (±2.545, ±7.833, 0) (±6.663, ±4.840, 0) (±8.236, 0, 0) 第4组 (0, ±9.427, 0) (±5.541, ±7.627, 0) (±8.966, ±2.913, 0) 表 4 不同R组合情况下聚焦DR-PVB对低折射率粒子的俘获情况
Table 4. Capture positons of low refractive index particles by focused DR-PVB for different R combinations.
不同R组合 稳定俘获位置 R1 = 600 μm, R2 = 800 μm 第1组 (±1.415, ±4.357, 0) (±3.706, ±2.693, 0) (±4.581, 0, 0) R1 = 500 μm, R2 = 800 μm 第1组 (±1.505, ±4.634, 0) (±3.942, ±2.864, 0) (±4.872, 0, 0) 第2组 (0, ±6.731, –0.005) (±3.956, ±5.445, –0.005) (±6.401, ±2.08, –0.005) 第3组 (±2.545, ±7.833, –0.001) (±6.663, ±4.840, –0.001) (±8.236, 0, –0.001) 第4组 (0, ±9.427, 0) (±5.541, ±7.627, 0) (±8.966, ±2.913, 0) 表 5 不同R组合情况下聚焦DR-PVB所能俘获微粒的尺寸范围
Table 5. Size range of particles captured by focused DR-PVB with different radius combinations.
不同半径组合对不同粒子的俘获半径范围 高折射率粒子 低折射率粒子 R1 = 600 μm, R2 = 800 μm 0.44 nm < a < 22.07 nm 0.50 nm < a < 23.35 nm R1 = 500 μm, R2 = 800 μm 0.47 nm < a < 23.53 nm 0.47 nm < a < 22.68 nm -
