Under high temperature and pressure conditions, silicon-based devices experience leakage and deformation due to the self-heating effect, making them unable to operate stably for a long time. Silicon carbide (SiC), as a representative third-generation semiconductor material, is an ideal option for high-temperature, high-frequency, and high-power electronic devices. However, the high-temperature performance limitations of 4H-SiC devices stem from the stability of ohmic contact electrodes and metal interconnections. The output of the lead electrodes is unstable at present, and oxygen intrusion at high temperatures can easily cause output failures. Previous studies indicate that the SiC/Ti/TaSi2/Pt multilayer structure holds significant potential for ohmic contacts. Building upon this ohmic contact foundation, this study proposes a batch sputtering-annealing process to prepare high-temperature-resistant lead electrodes. This involves altering the sequence of annealing and sputtering: first sputtering Ti/TaSi2 onto the SiC substrate and annealing to form the ohmic contact, followed by depositing a Pt protective layer to construct a novel SiC/Ti/TaSi2/Pt electrode structure. Comparative analysis of the two experimental groups is conducted using SEM, AES, XRD, thin-film stress measurement, and semiconductor analyzers. The batch-sputtered and annealed electrode structure can enhance density and reduce residual stress, with an initial specific contact resistivity of 6.35 × 10–5 Ω·cm2. High-temperature aging tests at 600 °C demonstrates superior electrical stability for electrodes formed by sputtering Pt onto Ti/TaSi2 after ohmic contact formation. These electrodes maintain ohmic characteristics even after 20-hour air aging, whereas traditional co-sputtered ohmic contacts transition to Schottky contacts. Pt effectively suppresses atomic diffusion and oxidation reactions, resulting in a smooth electrode microstructure without curling. The batch sputtering-annealing process not only greatly enhances the overall performance of SiC ohmic contacts but also provides crucial guidance for realizing the structural design and performance improvement of ohmic contacts by using other metal combinations. This approach holds significant reference value for the high-temperature packaging of third-generation semiconductor power devices and the development of electronic systems operating in harsh environments.
-
Keywords:
- silicon carbide /
- sputtering /
- lead electrode /
- ohmic contact
-

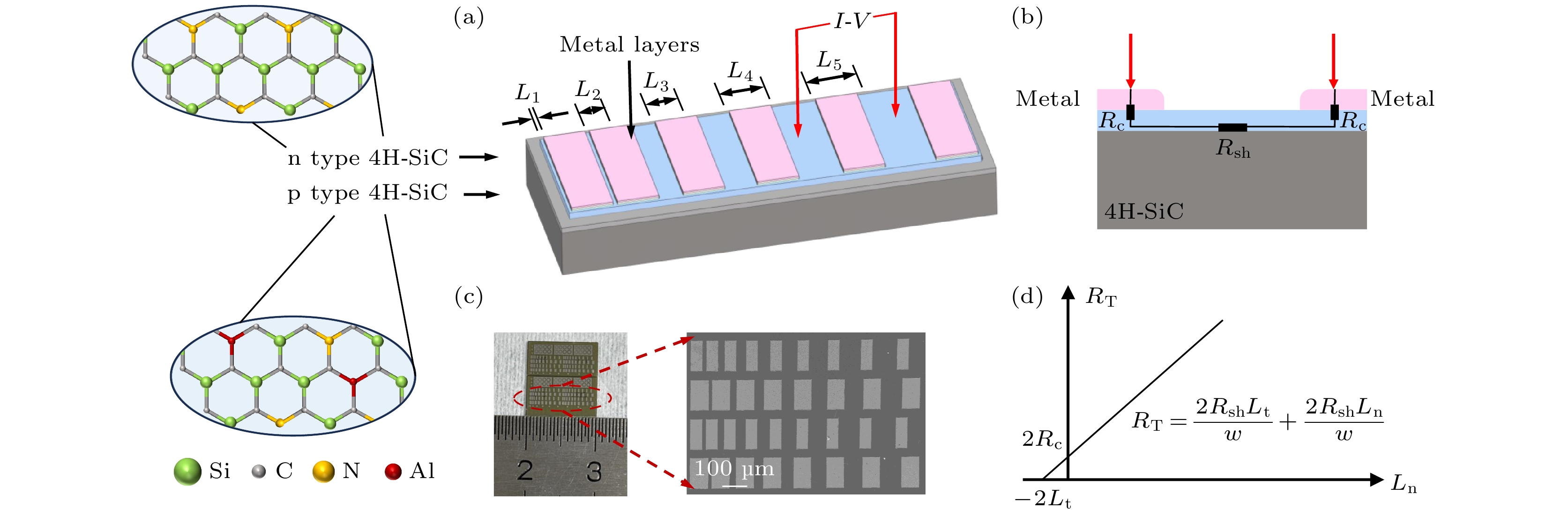

图 1 (a) 4H-SiC NPN型TLM测试方法; (b)TLM等效电极模型; (c)N型4H-SiC的TLM样品; (d) RT - Ln图
Figure 1. (a) 4H-SiC NPN type TLM test method; (b) equivalent electrical model of the RTLM method; (c) the fabricated N type 4H-SiC TLM samples; (d) RT - Ln graph.

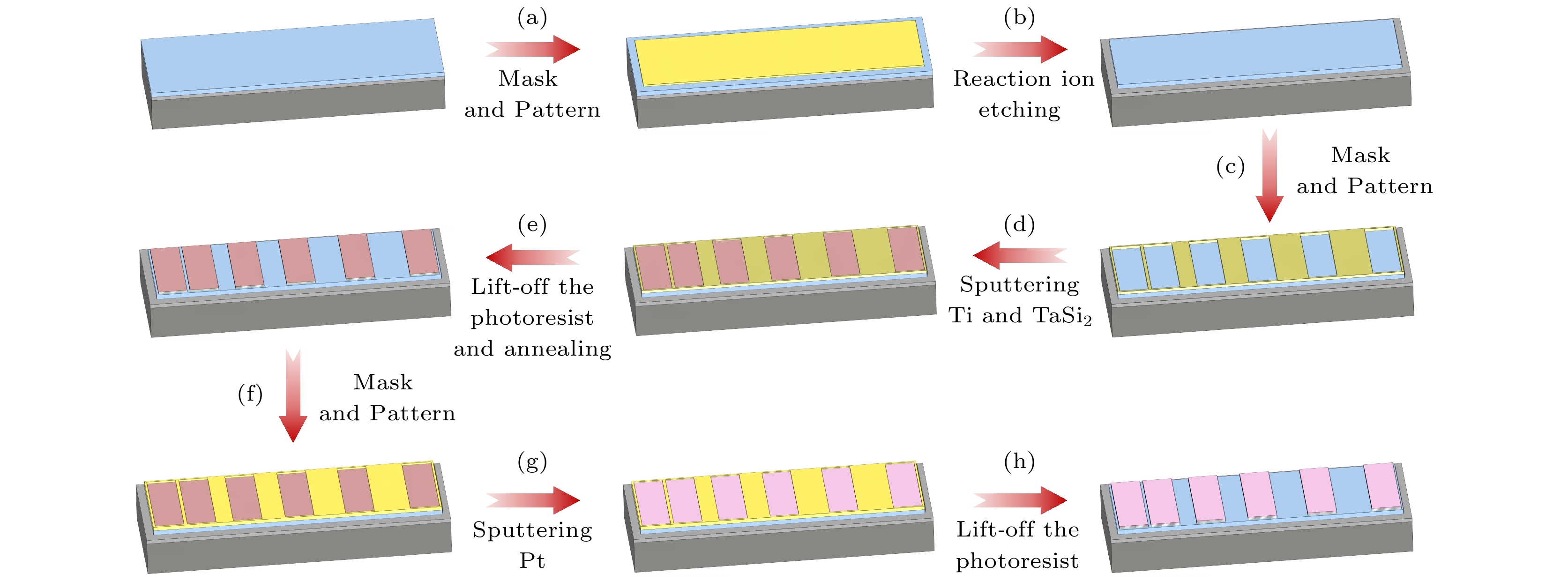

图 2 金属/SiC欧姆接触TLM样品制备流程
Figure 2. Fabricating processes of metal/SiC ohmic contact TLM samples.

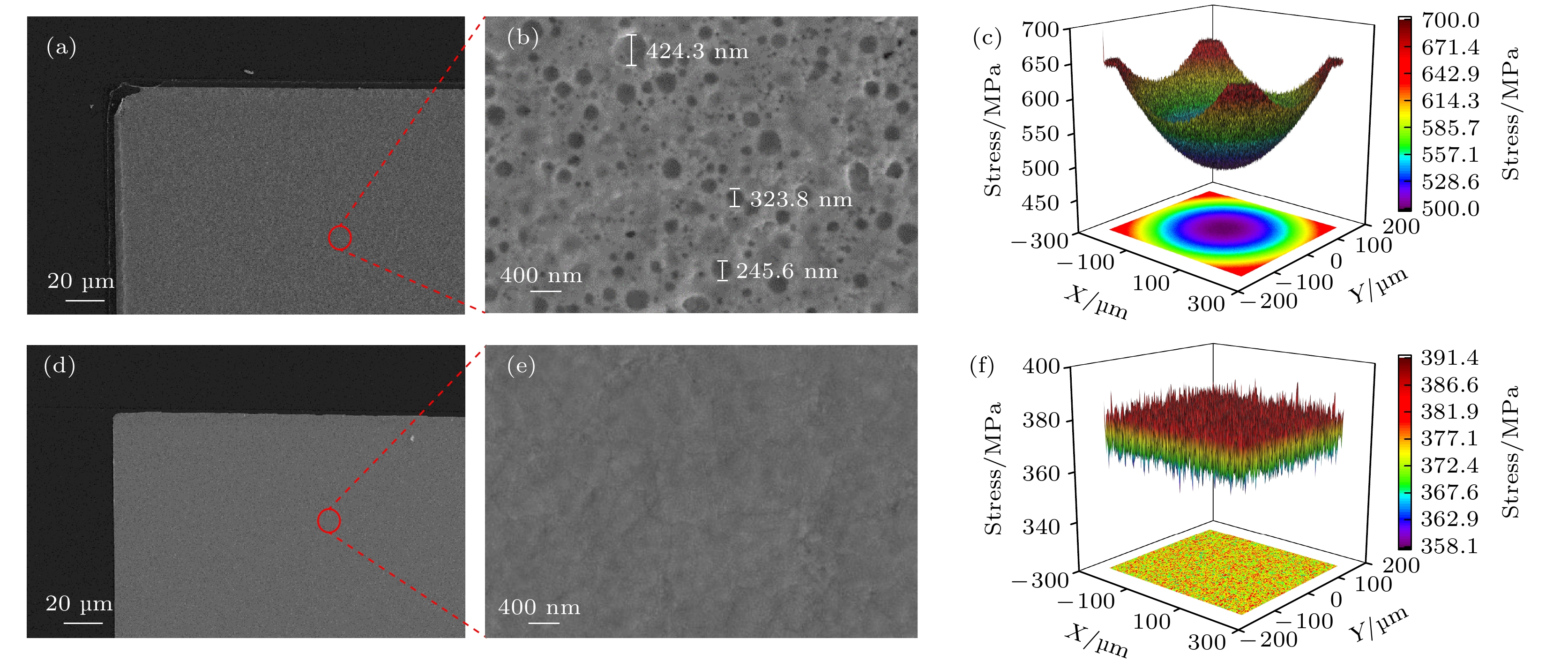

图 3 (a), (b) SiC/Ti/TaSi2/Pt高温退火后表面形貌; (c) SiC/Ti/TaSi2/Pt退火后电极应力分布; (d), (e) SiC/Ti/TaSi2退火后沉积Pt表面形貌; (f) SiC/Ti/TaSi2退火后沉积Pt电极应力分布
Figure 3. (a), (b) Surface morphology of SiC/Ti/TaSi2/Pt after high-temperature annealing; (c) electrode stress distribution of SiC/Ti/TaSi2/Pt after annealing; (d), (e) surface morphology of SiC/Ti/TaSi2 deposited Pt after annealing; (f) electrode stress distribution of SiC/Ti/TaSi2 deposited Pt after annealing.

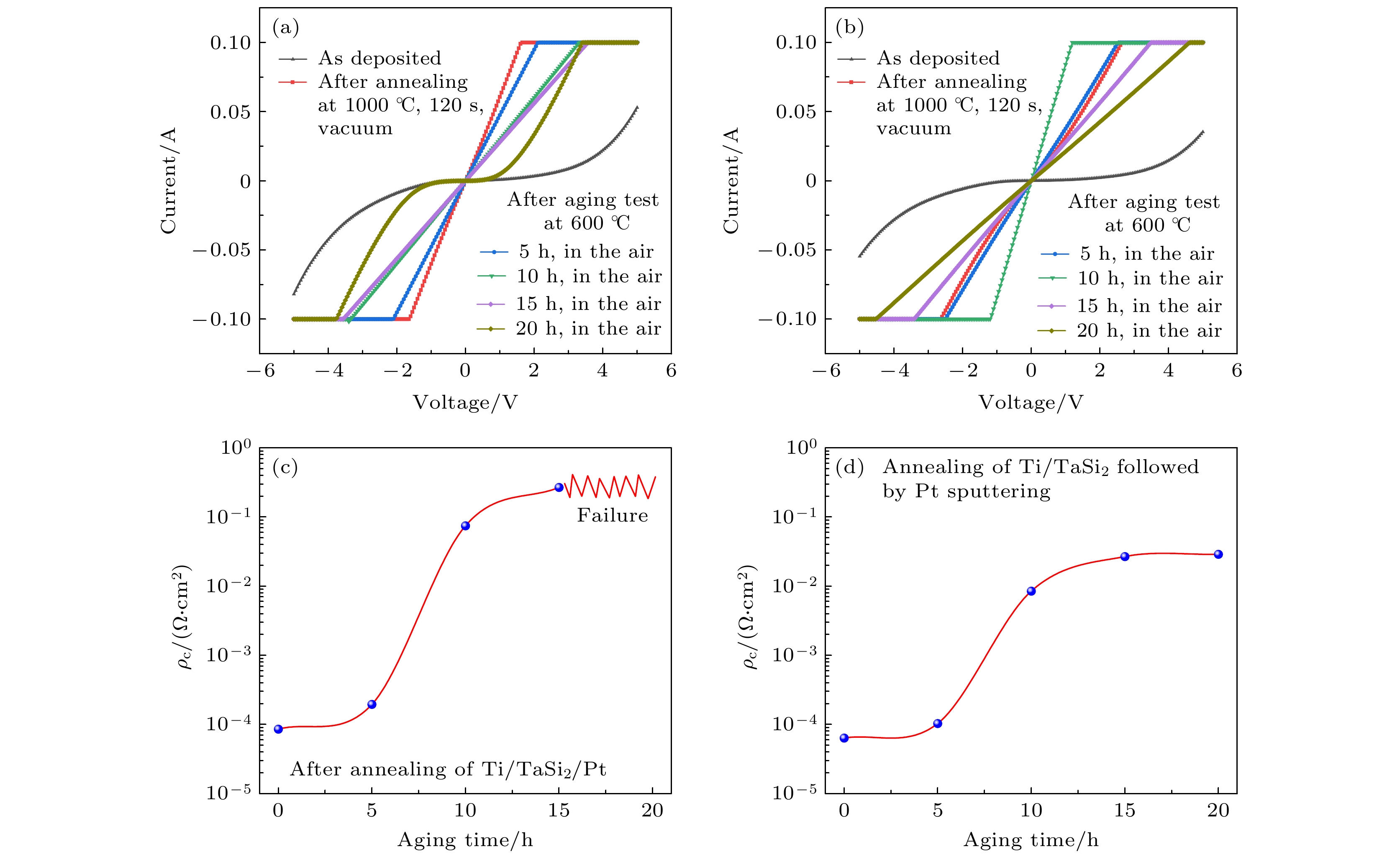

图 4 I-V特性 (a) 组合A(SiC/Ti/TaSi2/Pt); (b) 组合B(SiC/Ti/TaSi2形成欧姆接触后溅射Pt). 比接触电阻率与老化时间的关系 (c) 组合A(SiC/Ti/TaSi2/Pt); (d) 组合B(SiC/Ti/TaSi2形成欧姆接触后溅射Pt)
Figure 4. I-V characteristics: (a) Combination A(SiC/Ti/TaSi2/Pt); (b) combination B(SiC/Ti/TaSi2 sputtered Pt after forming an ohmic contact). Specific contact resistivity versus aging time: (c) Combination A(SiC/Ti/TaSi2/Pt); (d)combination B(SiC/Ti/TaSi2 sputtered Pt after forming an ohmic contact).

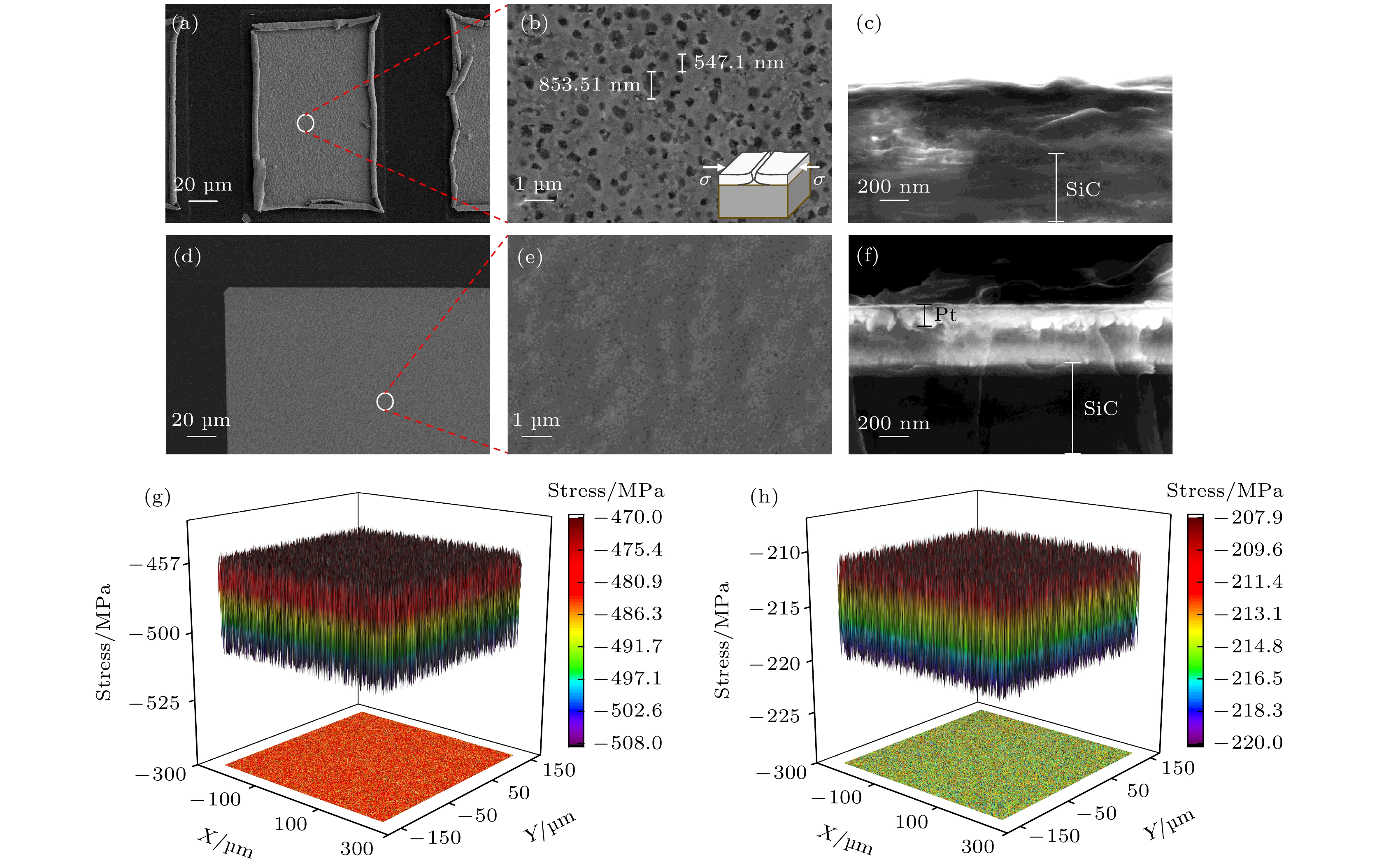

图 5 SiC/Ti/TaSi2/Pt 600 ℃老化20 h后形貌 (a), (b)表面形貌; (c)SEM截面. SiC/Ti/TaSi2退火后沉积Pt 600 ℃老化20 h后形貌 (d), (e)表面形貌; (f)SEM截面. (g) SiC/Ti/TaSi2/Pt 600 ℃老化20 h后电极应力分布; (f) SiC/Ti/TaSi2退火后沉积Pt 600 ℃老化20 h后电极应力分布
Figure 5. SiC/Ti/TaSi2/Pt morphology after aging at 600 °C for 20 hours: (a), (b) Surface morphology; (c) SEM cross-section. SiC/Ti/TaSi2 annealed followed by Pt deposition, morphology after 600 °C aging for 20 hours: (d), (e) Surface morphology; (f) SEM cross-section. (g) Electrode stress distribution of SiC/Ti/TaSi2/Pt after 600 °C aging for 20 hours. (f) SiC/Ti/TaSi2 annealed and deposited with Pt, after aging at 600 °C for 20 hours, electrode stress distribution.

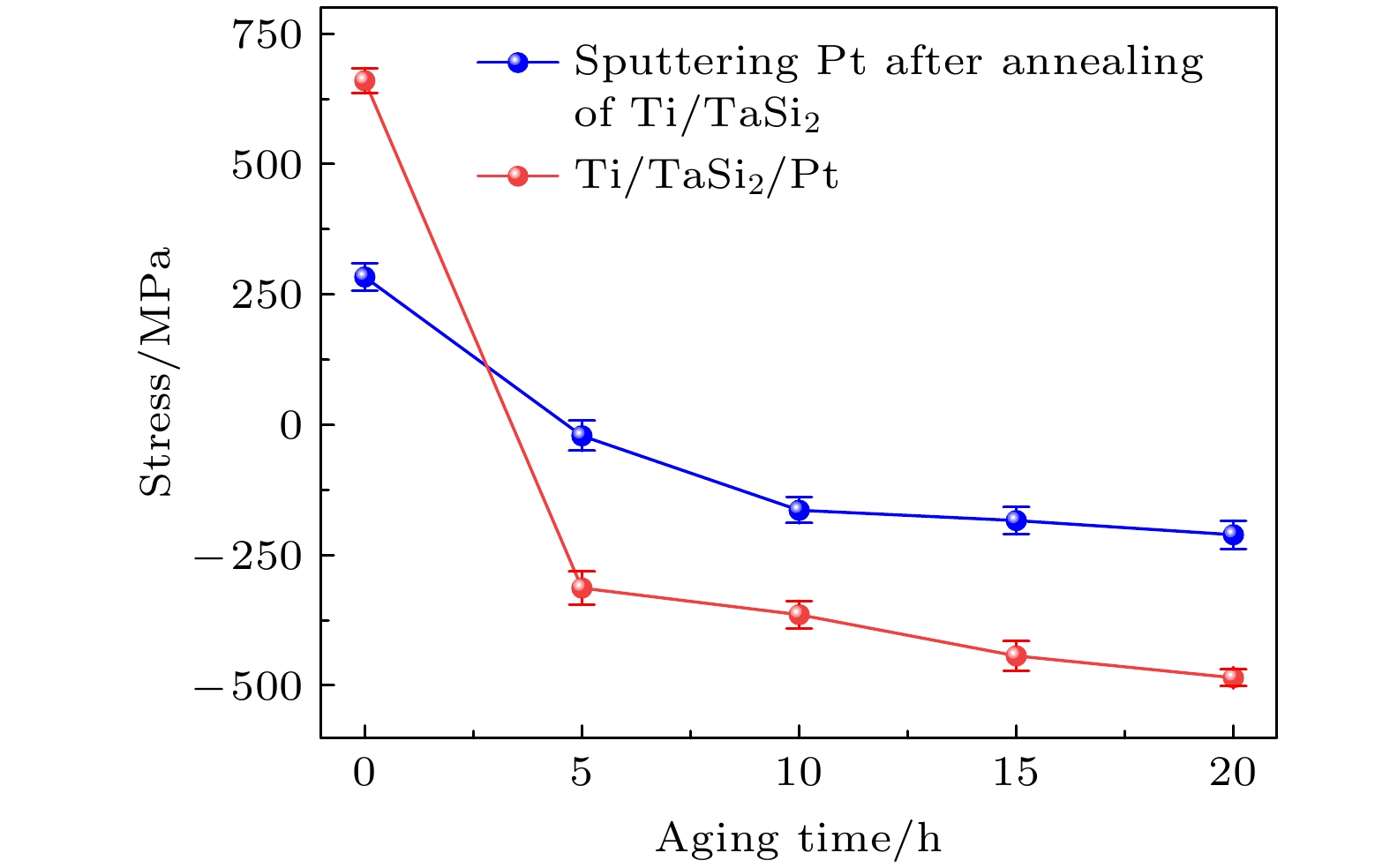

图 6 组合A (Ti/TaSi2/Pt 共溅射退火)与组合B (分批次溅射退火)在600 ℃空气环境下老化不同时间的应力变化趋势
Figure 6. Stress trends of combination A (Ti/TaSi2/Pt co-sputter annealed) and combination B (batch sputter annealed) aged at 600 °C in air for different time periods.

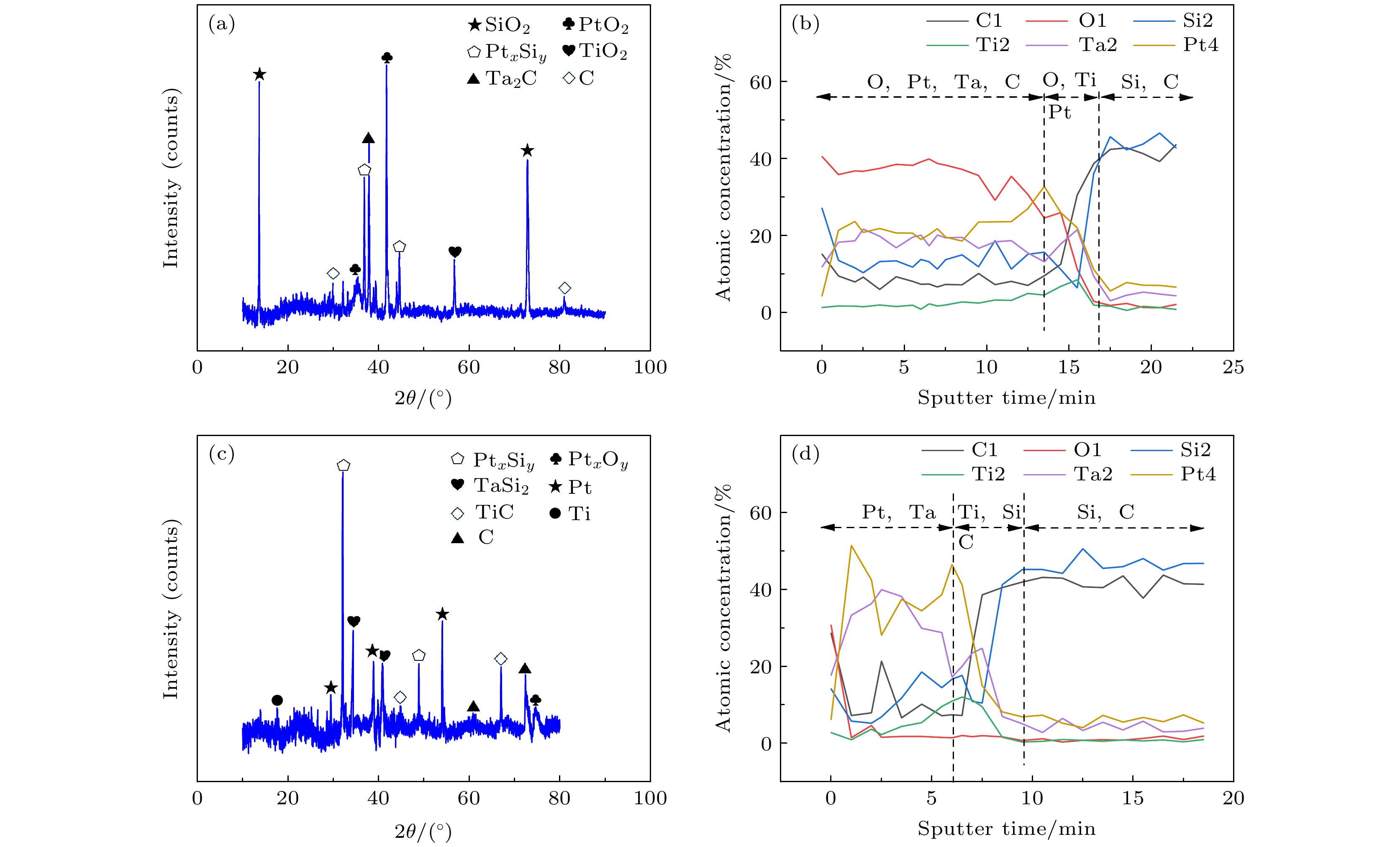

图 7 (a) Ti/TaSi2/Pt共溅射退火老化20 h后的XRD分析;(b)Ti/TaSi2/Pt 共溅射退火的AES分析; (c)分批次溅射退火老化20 h后的XRD分析; (d)分批次溅射退火的AES分析
Figure 7. (a)XRD analysis after aging for 20 hours of Ti/TaSi2/Pt co-sputtered annealing; (b) AES analysis of Ti/TaSi2/Pt co-sputtered annealing; (c) XRD analysis after aging for 20 hours of batch sputtered annealing; (d)AES analysis of batch sputtered annealing.
-
