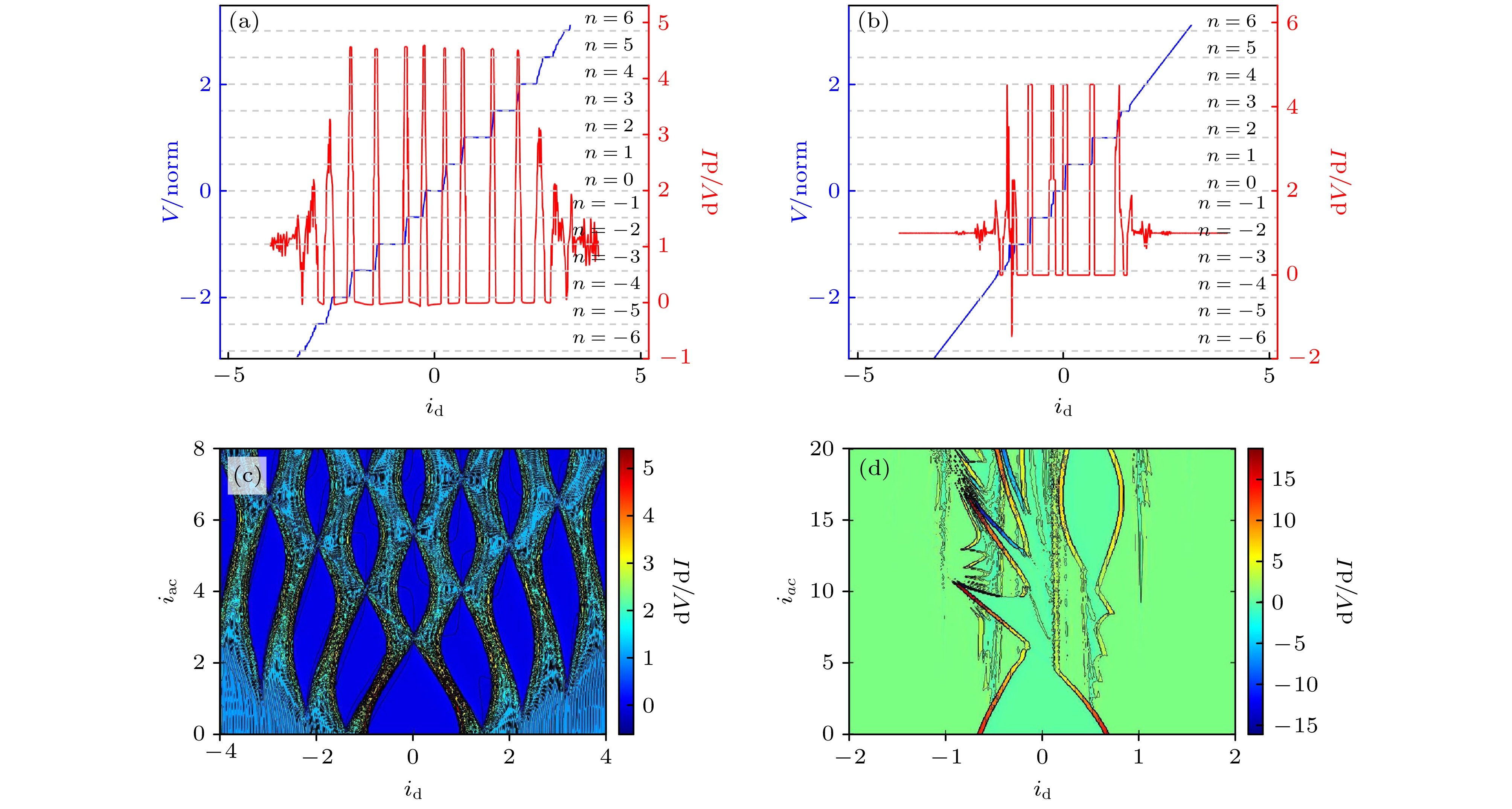

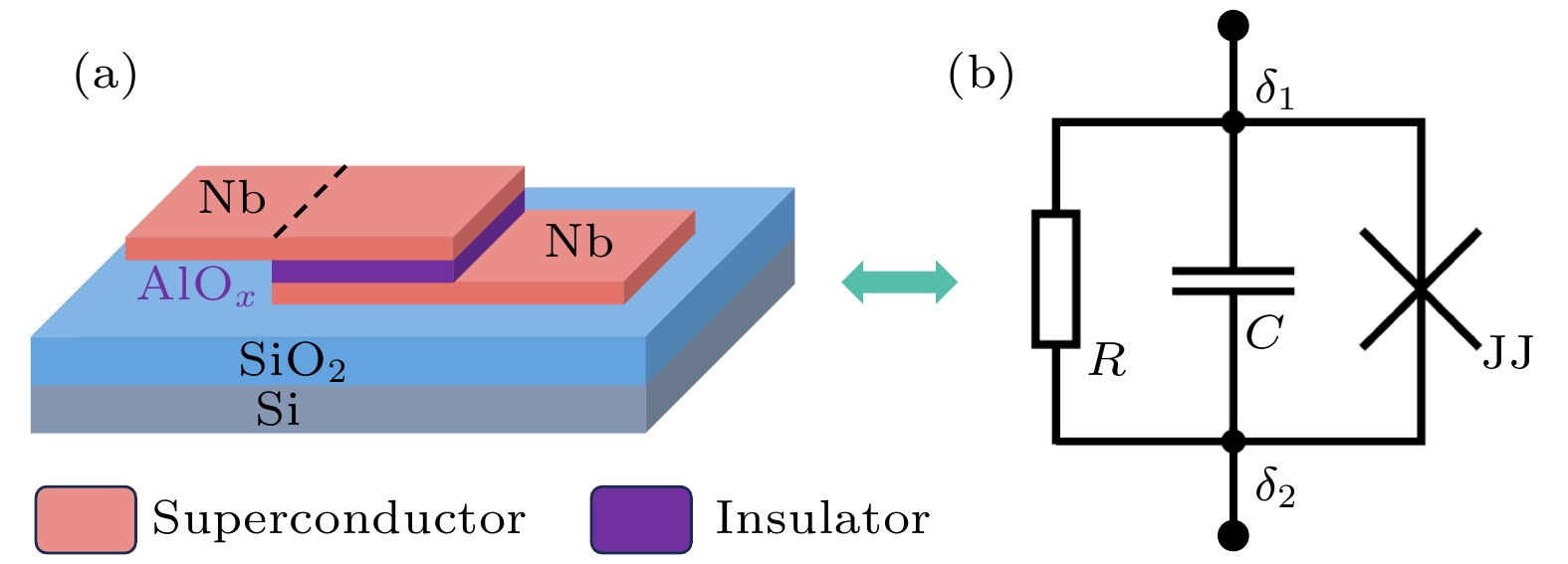

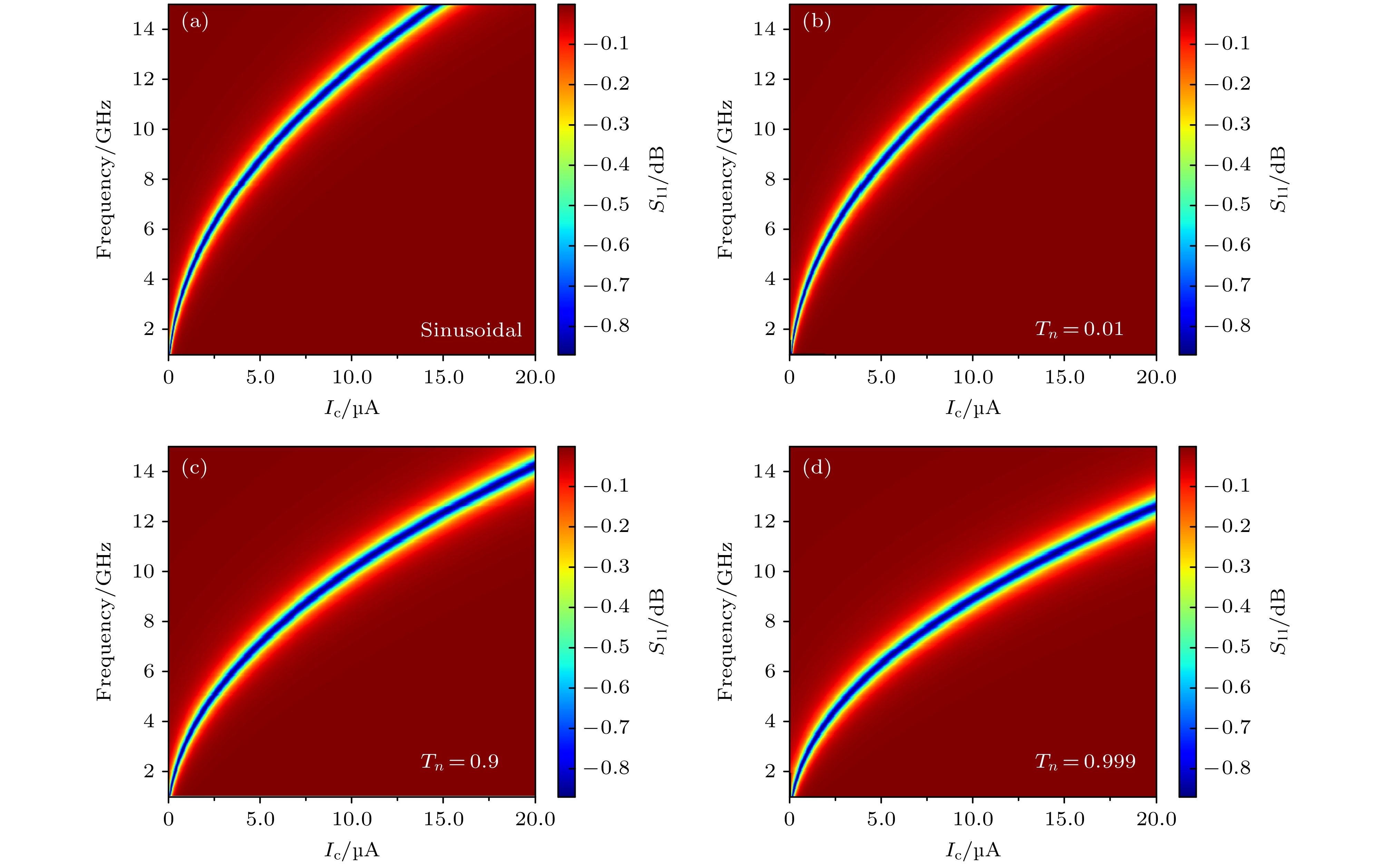

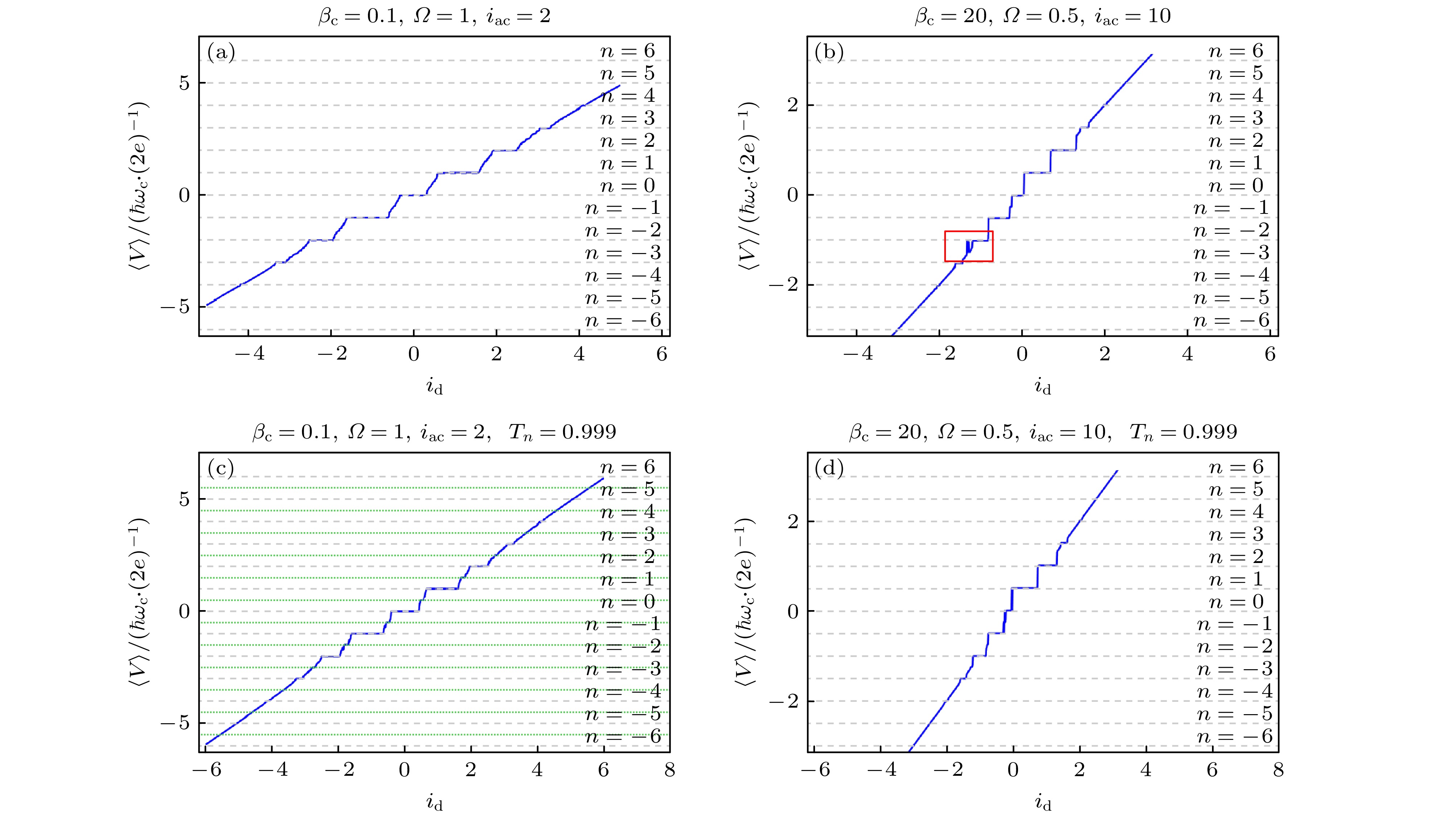

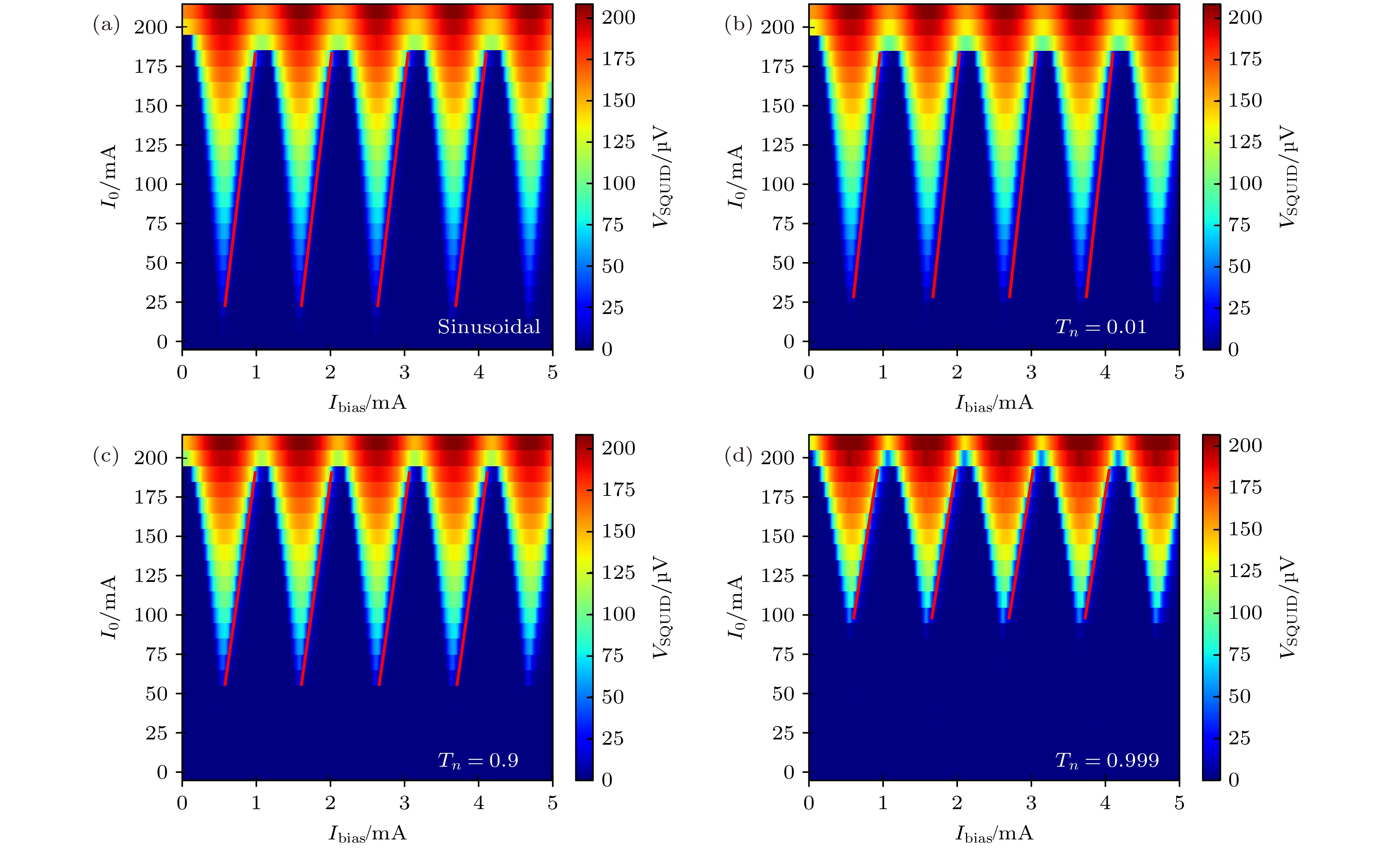

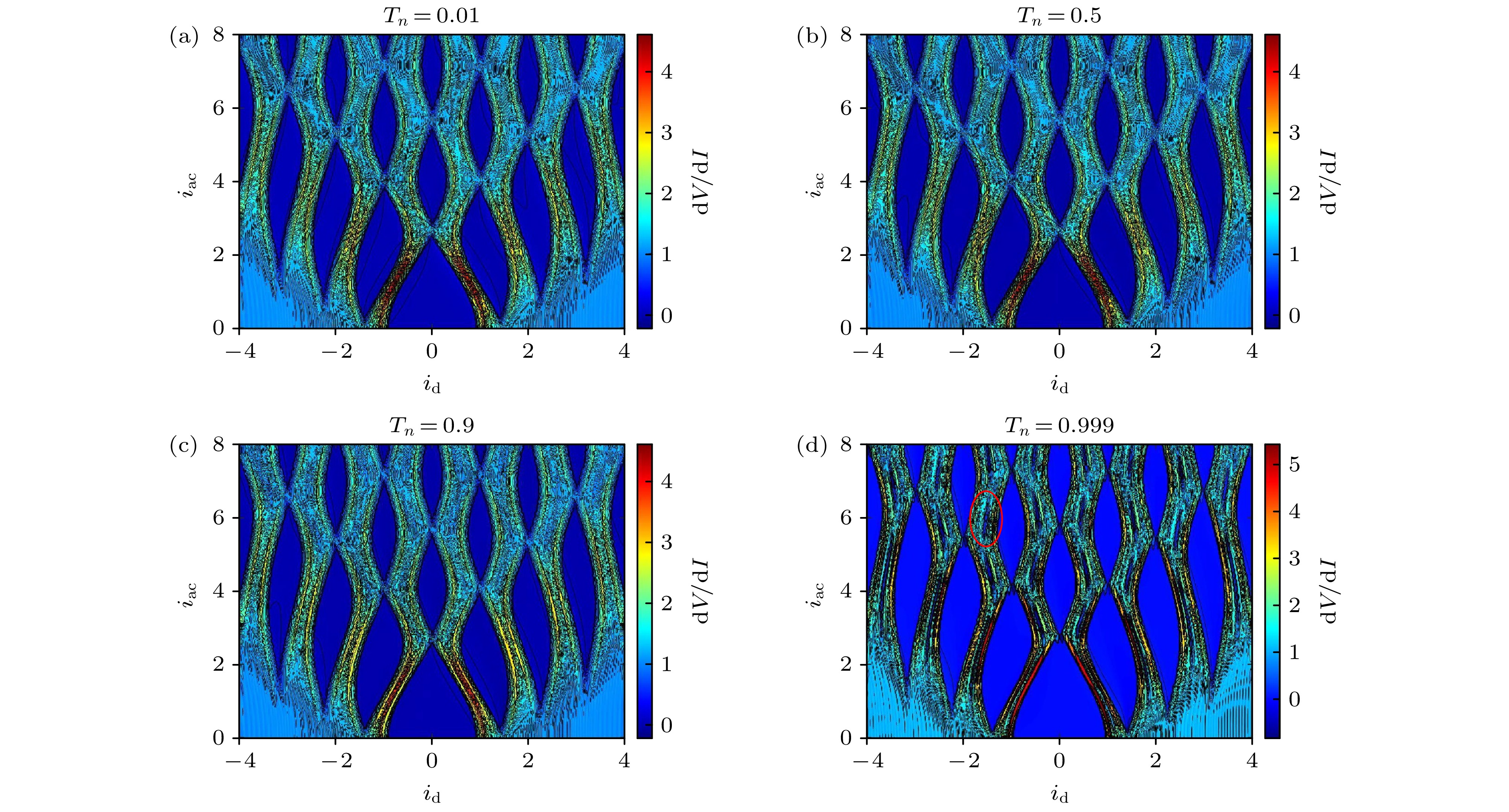

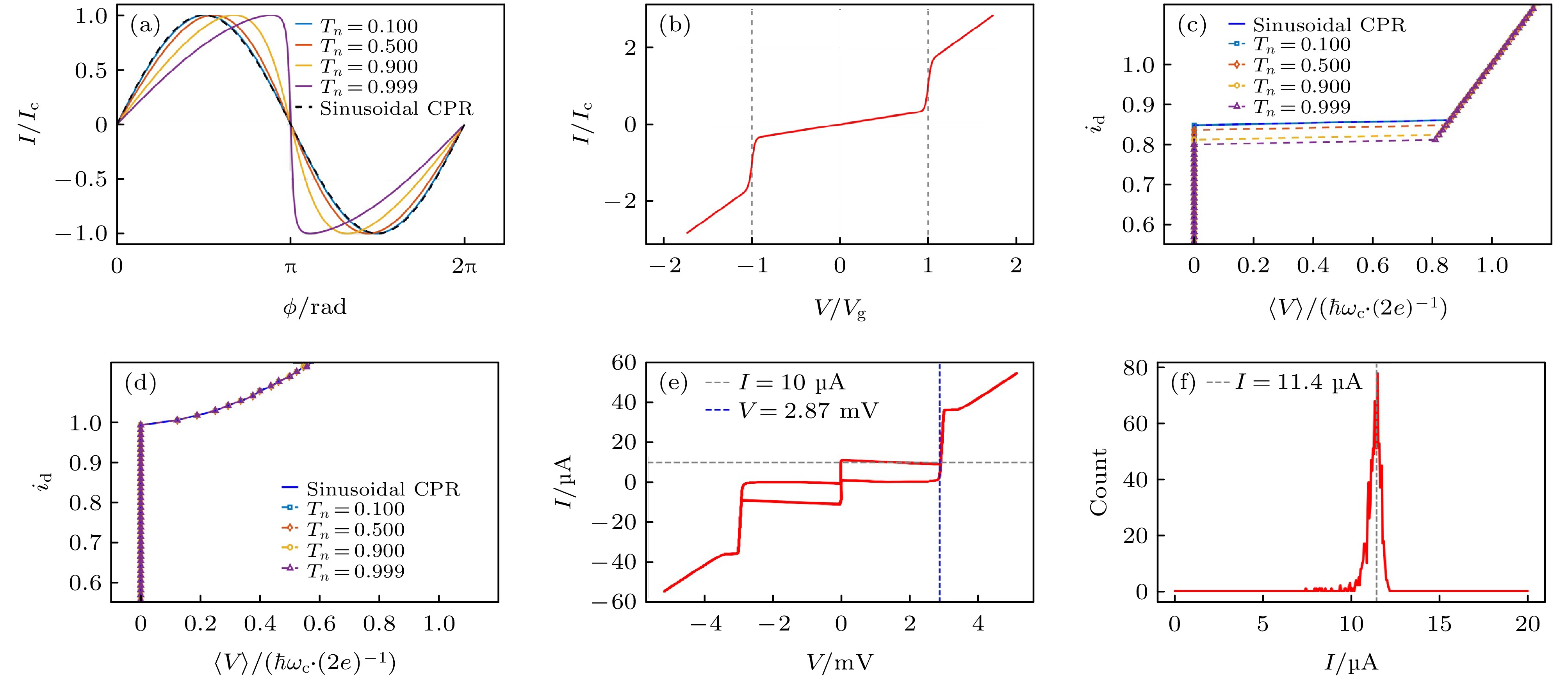

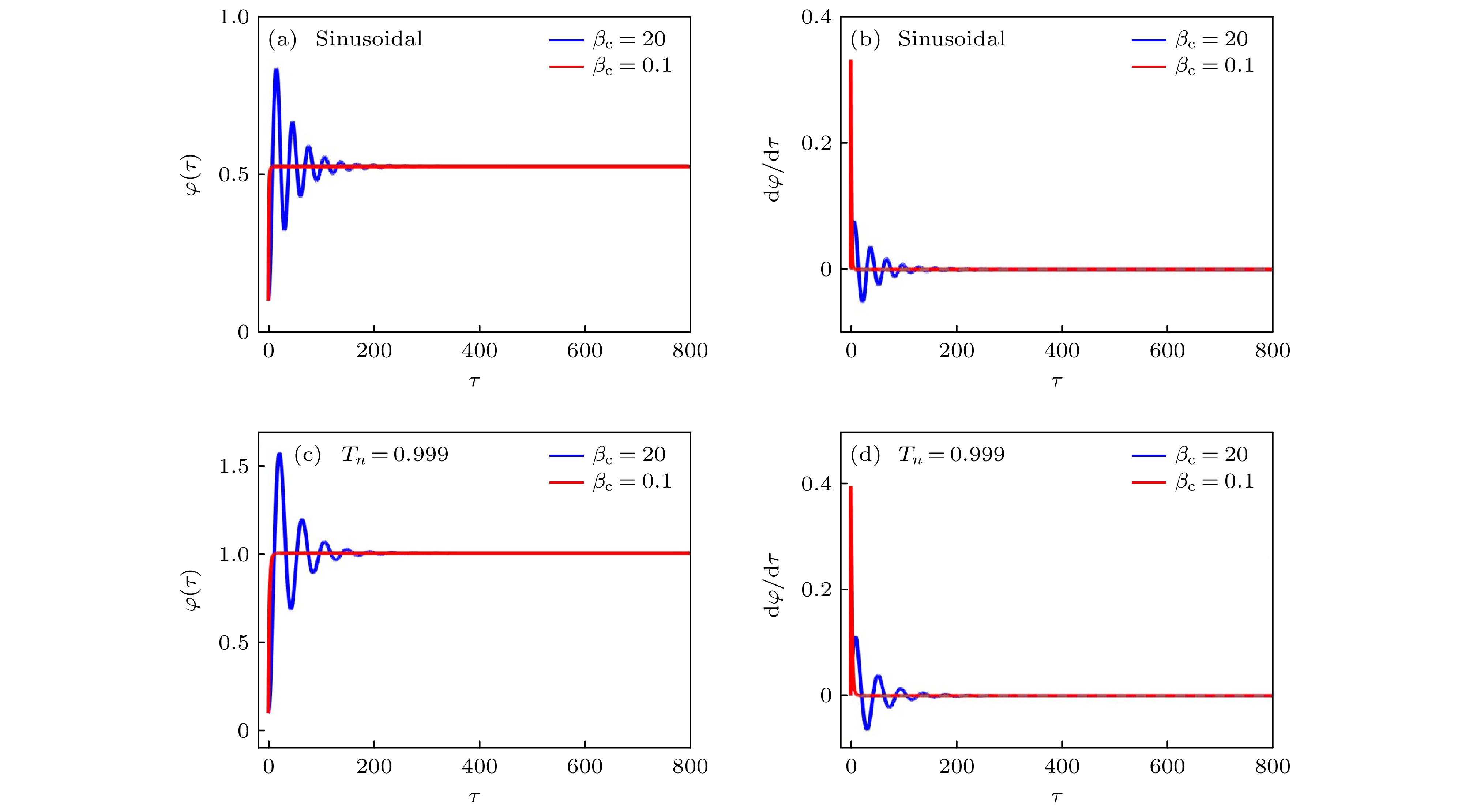

约瑟夫森结作为超导电子学中的核心非线性元件，其电流相位关系（current-phase relation,CPR）直接决定了器件的动力学行为与应用潜力。传统约瑟夫森结通常表现出标准正弦型CPR，而近年来非正弦CPR的新型约瑟夫森结引起广泛关注。本论文基于实验测量的Nb/Al-AlOx/Nb结的电流电压(I-V)特性曲线，结合阻容并联约瑟夫森结模型，构建了适用于非正弦CPR的数值计算模型，系统分析了CPR倾斜对约瑟夫森结动力学特性的影响。研究表明，欠阻尼约瑟夫森结的临界电流随CPR倾斜度增加而显著降低，从而表现出类似直流超导量子干涉器件的临界电流可调的特性；而在过阻尼结中，CPR倾斜对I-V曲线的影响不明显。进一步通过计算微波辐照下的I-V特性，发现非正弦CPR在过阻尼结中易于形成半整数夏皮罗台阶,验证了CPR倾斜是半整数夏皮罗台阶原因之一。此外，借助Advanced Design System (ADS)建立非线性谐振器与直流超导量子干涉器件电路仿真模型，深入探讨了非正弦CPR对约瑟夫森电感及磁通调制行为的影响。研究结果表明，不同CPR的约瑟夫森结显著扩展了超导量子比特、参量放大器以及无磁非互易器件的设计自由度，展示了开发新型超导电子器件的广阔前景。As the core nonlinear element underpinning superconducting electronics, the Josephson junction is characterized by its current-phase relation (CPR), which fundamentally determines the dynamical properties and functional capabilities of superconducting quantum devices. Traditional Josephson junctions typically exhibit a conventional sinusoidal CPR; however, junctions characterized by non-sinusoidal CPR have recently attracted considerable attention due to their distinctive physical properties and promising quantum device applications. In this study, we developed a numerical model tailored specifically for junctions exhibiting non-sinusoidal CPR by integrating experimentally measured current-voltage (I-V) characteristics from Nb/Al-AlOx/Nb junctions into a resistively and capacitively shunted junction (RCSJ) framework. Leveraging this refined model, we systematically explored the influence of CPR skewness on Josephson junction dynamics. Our results reveal that, in underdamped junctions, the critical current significantly diminishes with increasing CPR skewness, a behavior reminiscent of the tunable critical currents typically observed in DC superconducting quantum interference devices (SQUID). Conversely, in overdamped junctions, the influence of CPR skewness on the I-V characteristics is found to be negligible. However, our numerical simulations under microwave irradiation reveal that nonsinusoidal CPRs readily promote the emergence of half-integer Shapiro steps in overdamped junctions, thereby establishing CPR skewness as a plausible microscopic origin for this phenomenon. In addition, we employed Advanced Design System (ADS) simulations to model nonlinear resonators and DC SQUID circuits, offering a detailed investigation into how nonsinusoidal CPRs modulate the Josephson inductance and magnetic flux response. Our findings reveal that engineering the CPR of Josephson junctions provides substantial flexibility in the design of superconducting qubits, parametric amplifiers, and non-magnetic nonreciprocal devices. This tunability underscores significant opportunities for the development of next-generation superconducting electronic components. Josephson junctions with engineered CPR offer expanded functionality for superconducting quantum technologies. This study shows that tailoring CPR enables enhanced control over the dynamical behavior of junctions, facilitating optimized designs of superconducting qubits, parametric amplifiers, and nonmagnetic nonreciprocal devices.
-
Keywords:
- Josephson junction /
- Half-integer Shapiro steps /
- RCSJ model /
- DC-SQUID /
- Superconducting electronics
-
