基于水窗高次谐波阿秒光源的瞬态吸收光谱装置研究

邓意民 张煜 陆培祥 曹伟

引用本文:
Citation:

基于水窗高次谐波阿秒光源的瞬态吸收光谱装置研究

邓意民, 张煜, 陆培祥, 曹伟

Apparatus for transient absorption spectroscopy based on water-window high-order harmonic attosecond light sources

DENG Yimin, ZHANG Yu, LU Peixiang, CAO Wei
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用
  • 以软X射线相干光源作为超快探针的瞬态吸收光谱技术在化学、生物、材料领域有着广泛的应用前景. 本文介绍一种基于桌面式软X射线光源的瞬态吸收装置的设计, 该装置利用短波红外激光来驱动软X射线高次谐波阿秒光源的产生, 最大光子能量进入水窗波段(>300 eV). 利用该装置开展了氩L边及碳K边瞬态吸收光谱的初步研究, 为实现元素分辨、时间分辨、跃迁通道分辨的电子动力学测量提供了重要的工具.
    Transient absorption spectroscopy using soft X-ray coherent light sources as ultrafast probes holds significant potential applications in chemistry, biology, and materials science. This article presents the design of a transient absorption apparatus based on desktop soft X-ray light sources. A commercial femtosecond laser system (4.4 mJ, 25 fs, 800 nm, 1 kHz) drives an optical parametric amplifier, generating a 900 μJ, 28 fs, 1440 nm short-wavelength infrared (SWIR) pulse. This SWIR pulse is spectrally broadened and temporally compressed into a few-cycle pulse (400 μJ, 16.5 fs, 1530 nm) by a hollow-core fiber compressor. Then, few-cycle SWIR pulse drives the generation of attosecond soft X-ray high-order harmonic radiation, with the maximum photon energy extending into the water window region (>300 eV). The spectral resolution of the soft X-ray spectrometer is determined to be 334 meV at 243 eV. The remaining 800 nm pump pulse from the OPA system is combined with the high-order harmonic soft X-ray probe by using a hole mirror, forming a Mach-Zehnder interferometer with a time jitter of less than10 fs during the one-hour data acquisition. This setup demonstrates the feasibility of performing time-resolved soft X-ray spectroscopy in a compact experimental configuration. Preliminary studies of transient absorption near the argon L-edge and carbon K-edge are conducted, demonstrating that this system can be used as a powerful tool for element-specific, time-resolved, and transition-channel-resolved investigations of electron dynamics.

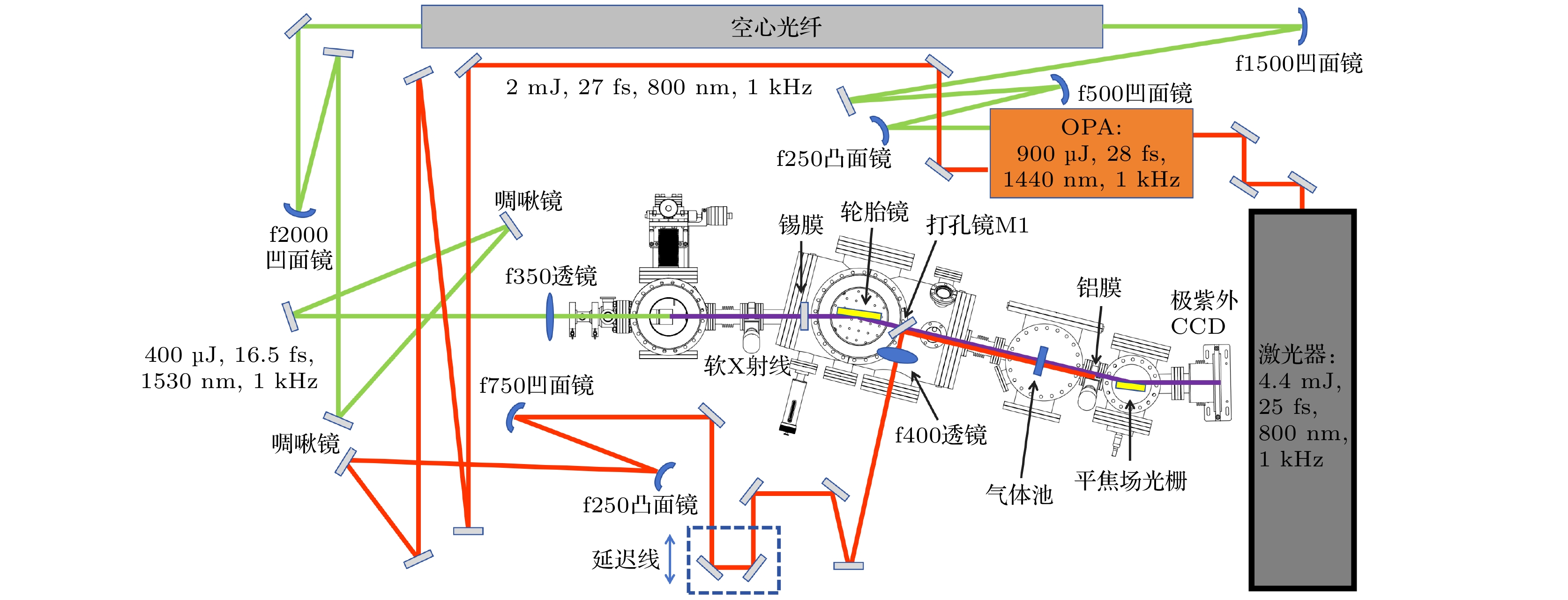

  • 图 1  利用少周期短波红外激光产生软X射线进行瞬态吸收实验光路示意图

    Fig. 1.  Schematic of transient absorption experimental carried by soft X-ray generated by few-cycle infrared laser.

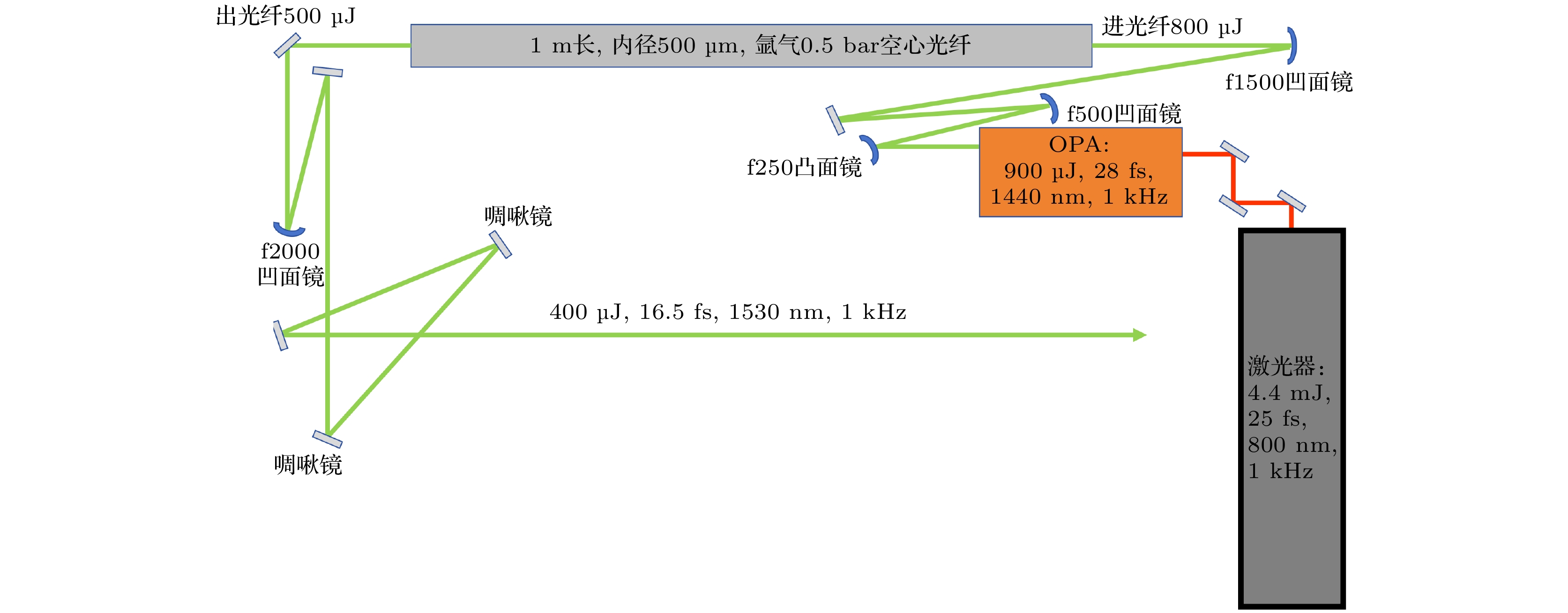

    图 2  少周期短波红外激光的产生光路示意图.

    Fig. 2.  Schematic of few-cycle SWIR laser generation.

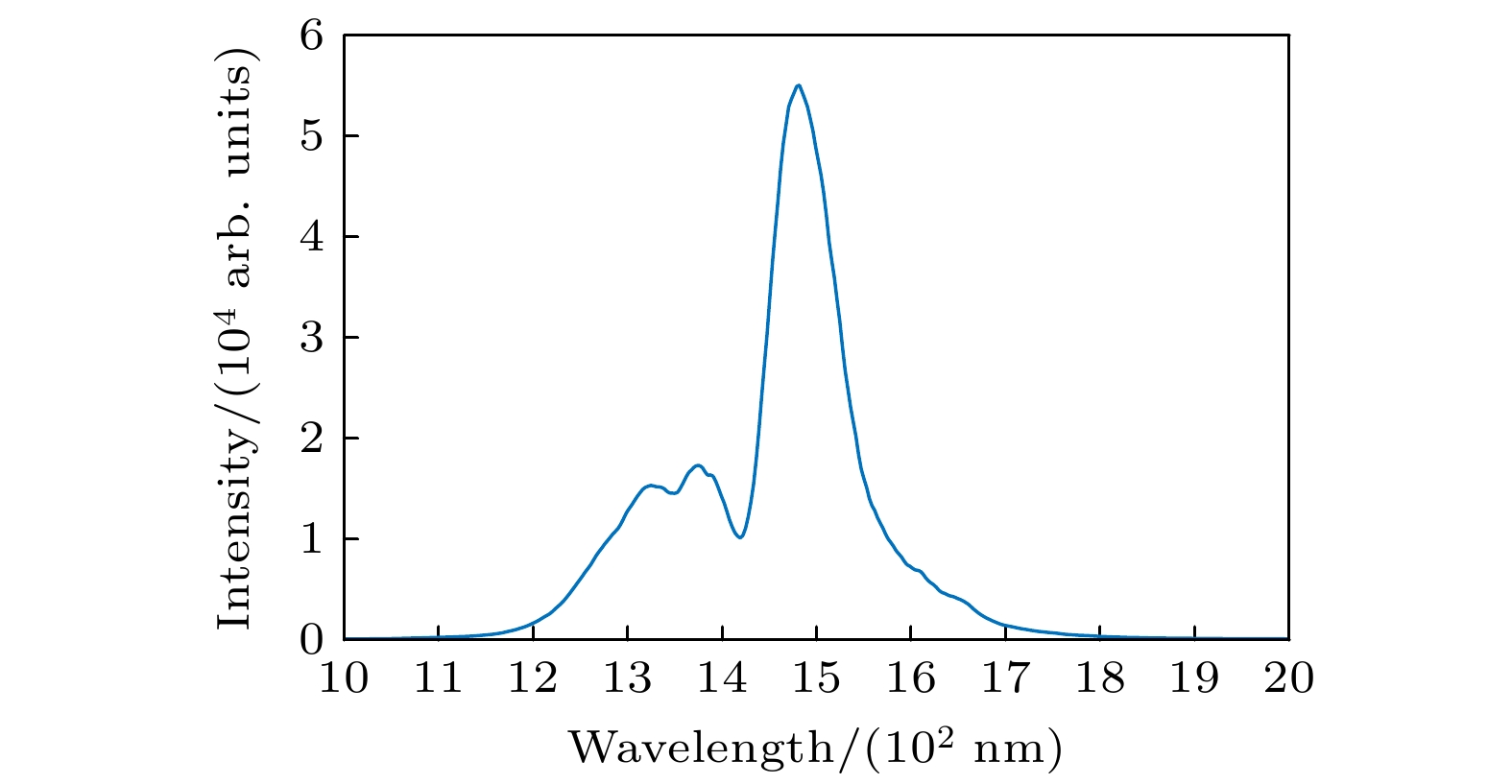

    图 3  经过空芯光纤系统展宽后的短波红外光谱

    Fig. 3.  Spectrum of SWIR laser pulse after spectral broadening in hollow-core fiber.

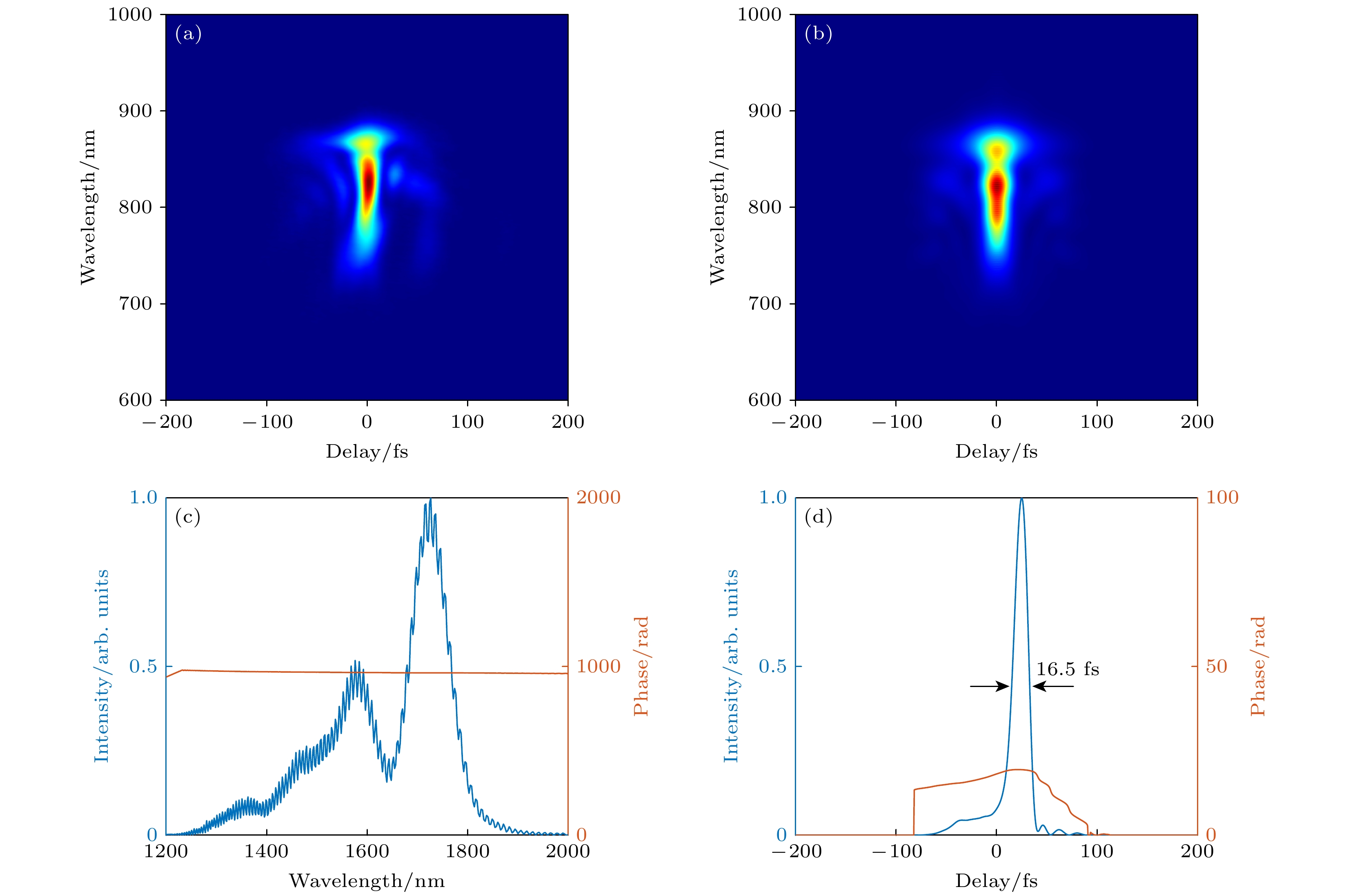

    图 4  FROG脉宽测量结果 (a)测量得到的FROG trace; (b)重构得到的FROG trace; (c)重构得到的少周期短波红外光谱强度及相位; (d)重构得到的少周期短波红外时域结构

    Fig. 4.  Results of FROG measurement: (a) Measured FROG trace; (b) reconstructed FROG trace; (c) reconstructed spectral amplitude and phase of the few-cycle SWIR laser pulse; (d) constructed temporal structure of the SWIR laser pulse.

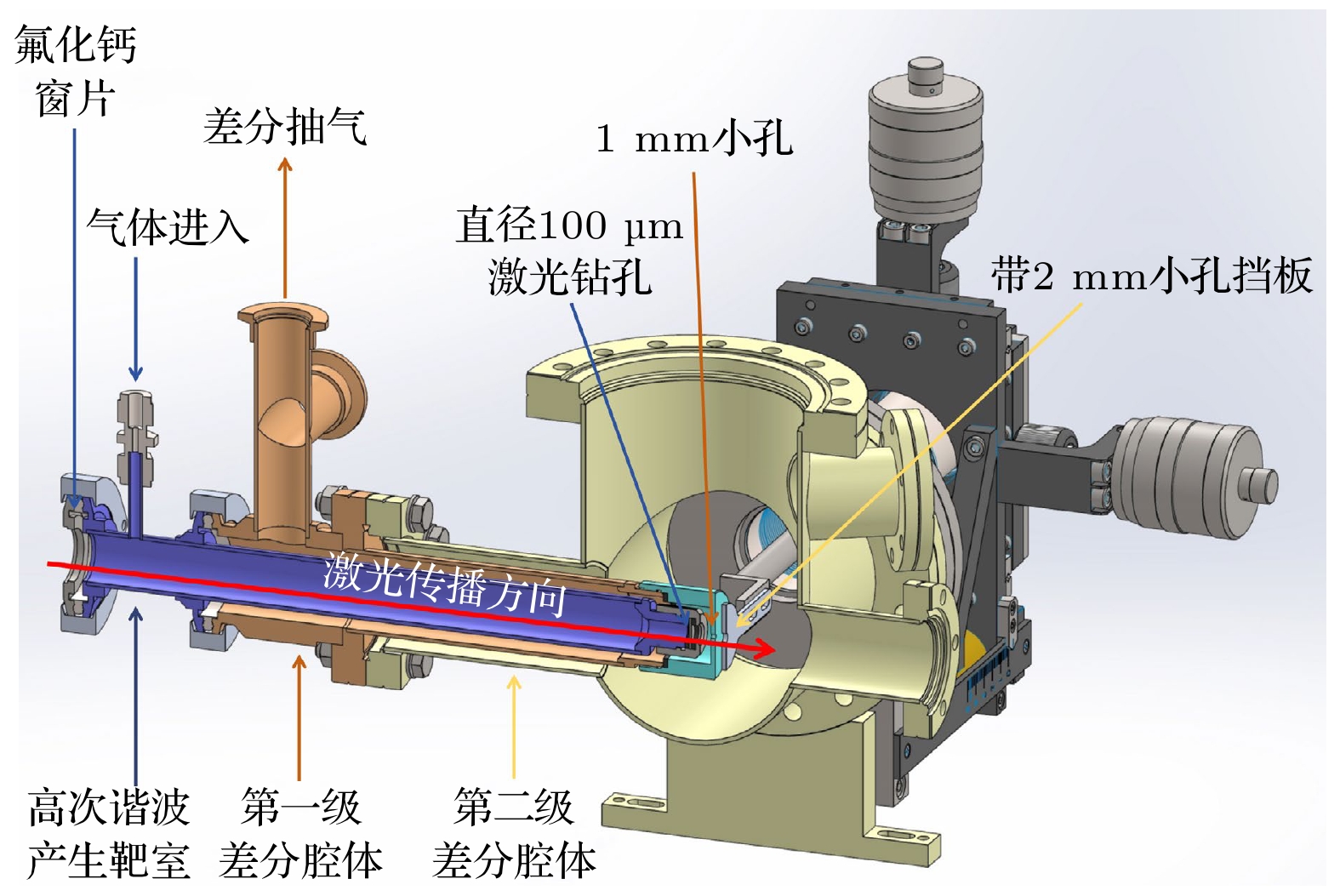

    图 5  产生软X射线高次谐波的气体靶室截面图

    Fig. 5.  Cross section view of the gas target for soft X-ray high harmonic generation.

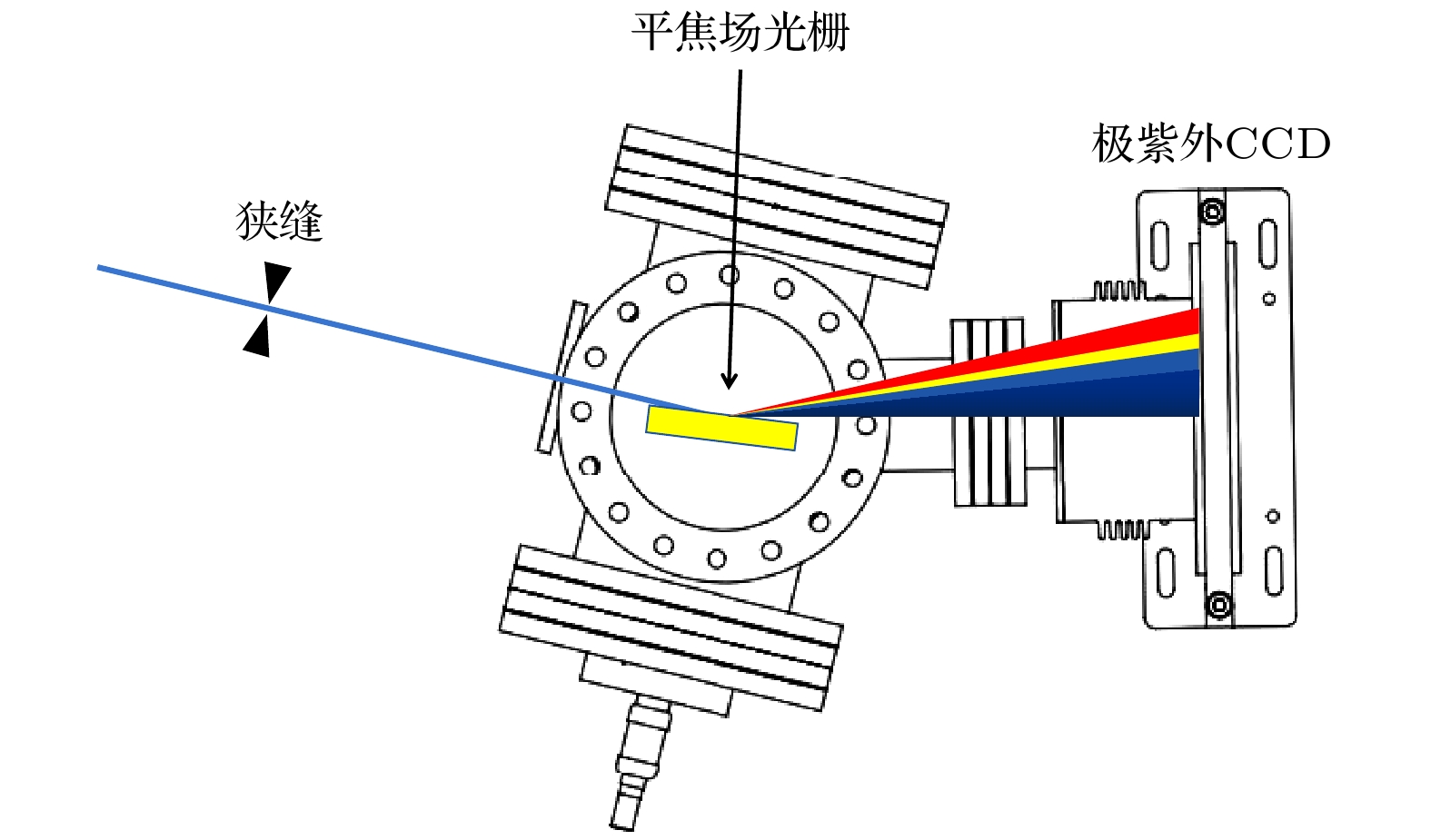

    图 6  软X射线光谱仪

    Fig. 6.  Home-built soft X-ray spectrometer.

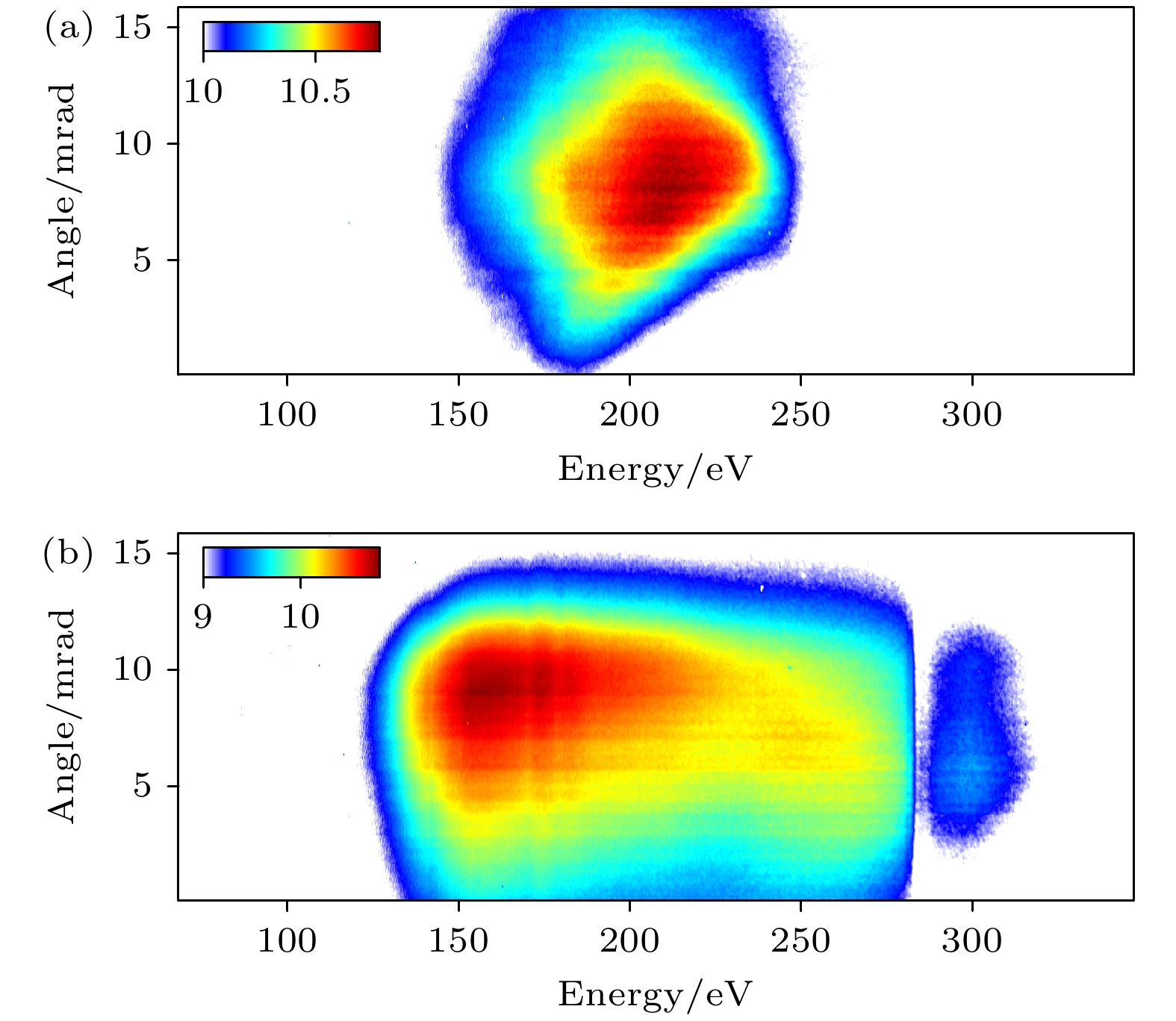

    图 7  不同气体产生的软X射线高次谐波光谱 (a)氖气; (b)氦气

    Fig. 7.  Soft X-ray high harmonic spectra from different gases: (a) Ne; (b) He.

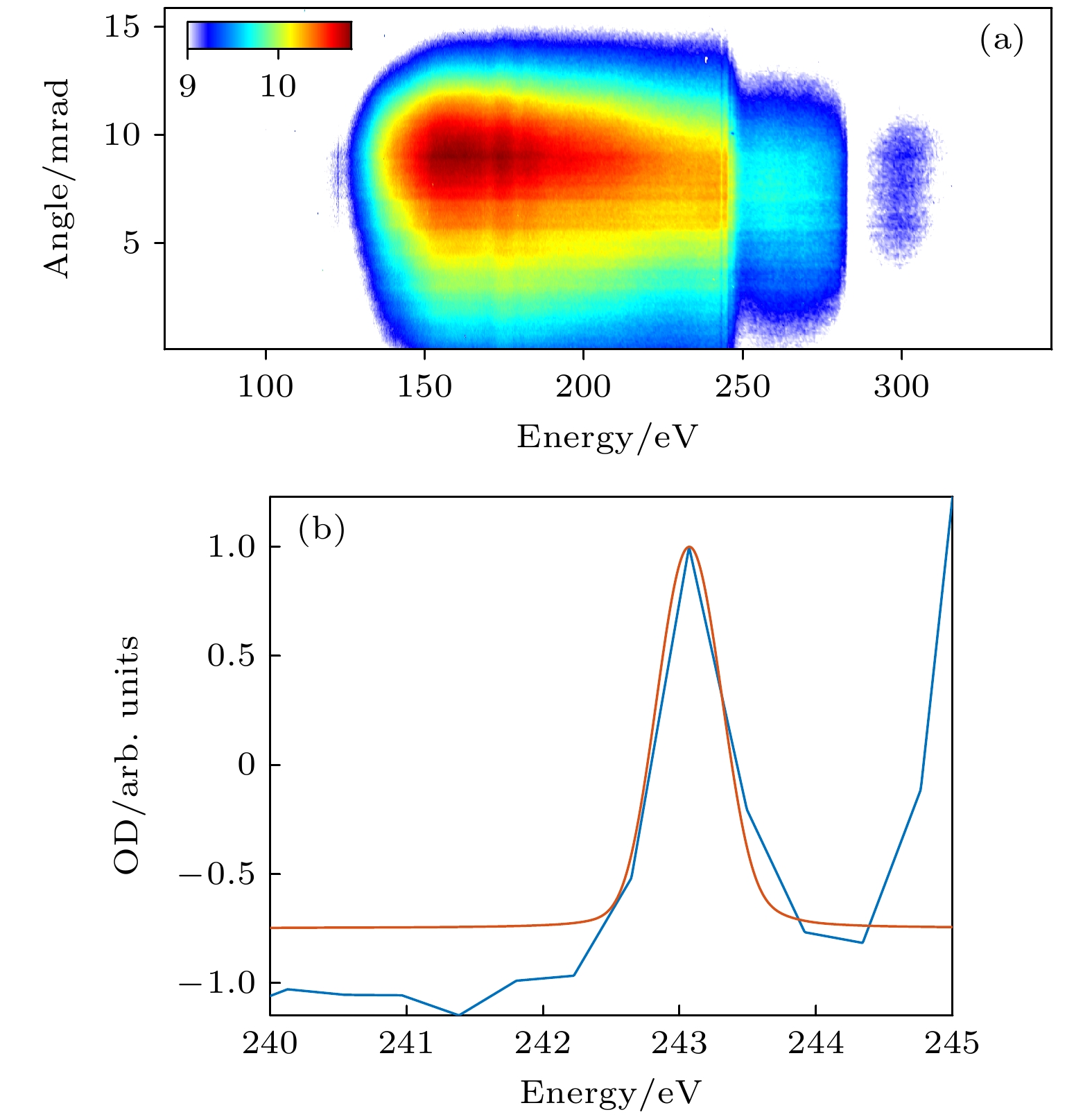

    图 8  (a)氩气的二维静态吸收谱; (b)在氩的2p2/3–14s吸收线附近对(a)进行空间积分后的吸收线型, 红色实线表示利用洛伦兹线型与高斯函数卷积的拟合结果, 结果表明该光谱仪分辨率约为344 meV

    Fig. 8.  (a) Two-dimensional static absorption spectrum of Ar gas; (b) spatial integrated absorption spectrum in panel (a) near 2p2/3–14s transition line of Ar (blue), red solid line represents the fitting by convoluting the Lorentz line shape with a Gaussian function, the fitting results indicate that the spectrometer resolution is approximately 334 meV.

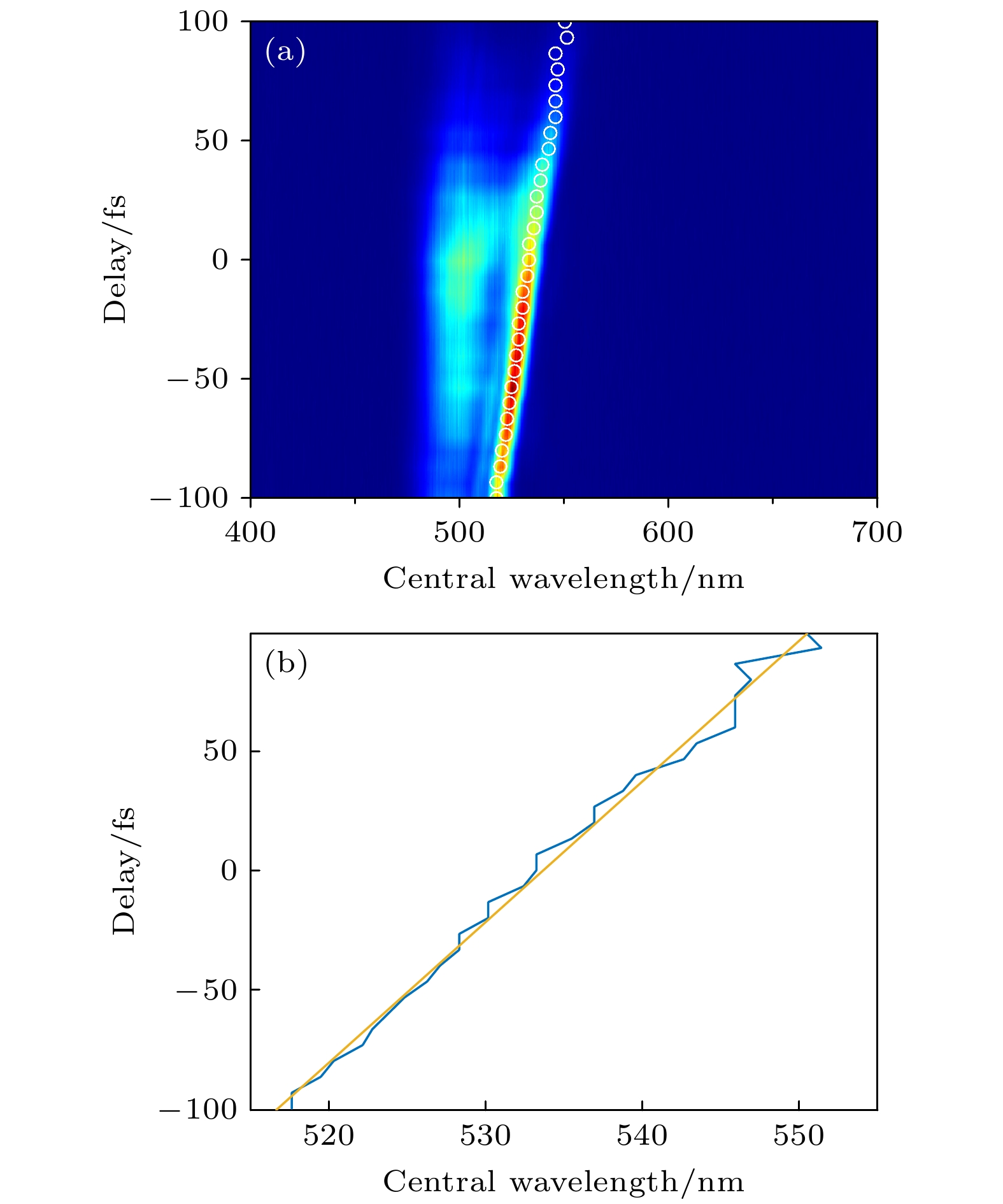

    图 9  (a)合频信号光谱随延时的变化, 白色圆圈线为合频信号中心波长位置; (b)合频信号中心波长随延时的变化(蓝线), 黄线是对蓝线的线性拟合

    Fig. 9.  (a) Sum-frequency generation spectrum as a function of delay, the white circles indicate the positions of central wavelength; (b) central wavelength of the sum-frequency generation as a function of delay (blue), yellow line represents the linear fitting of the blue line.

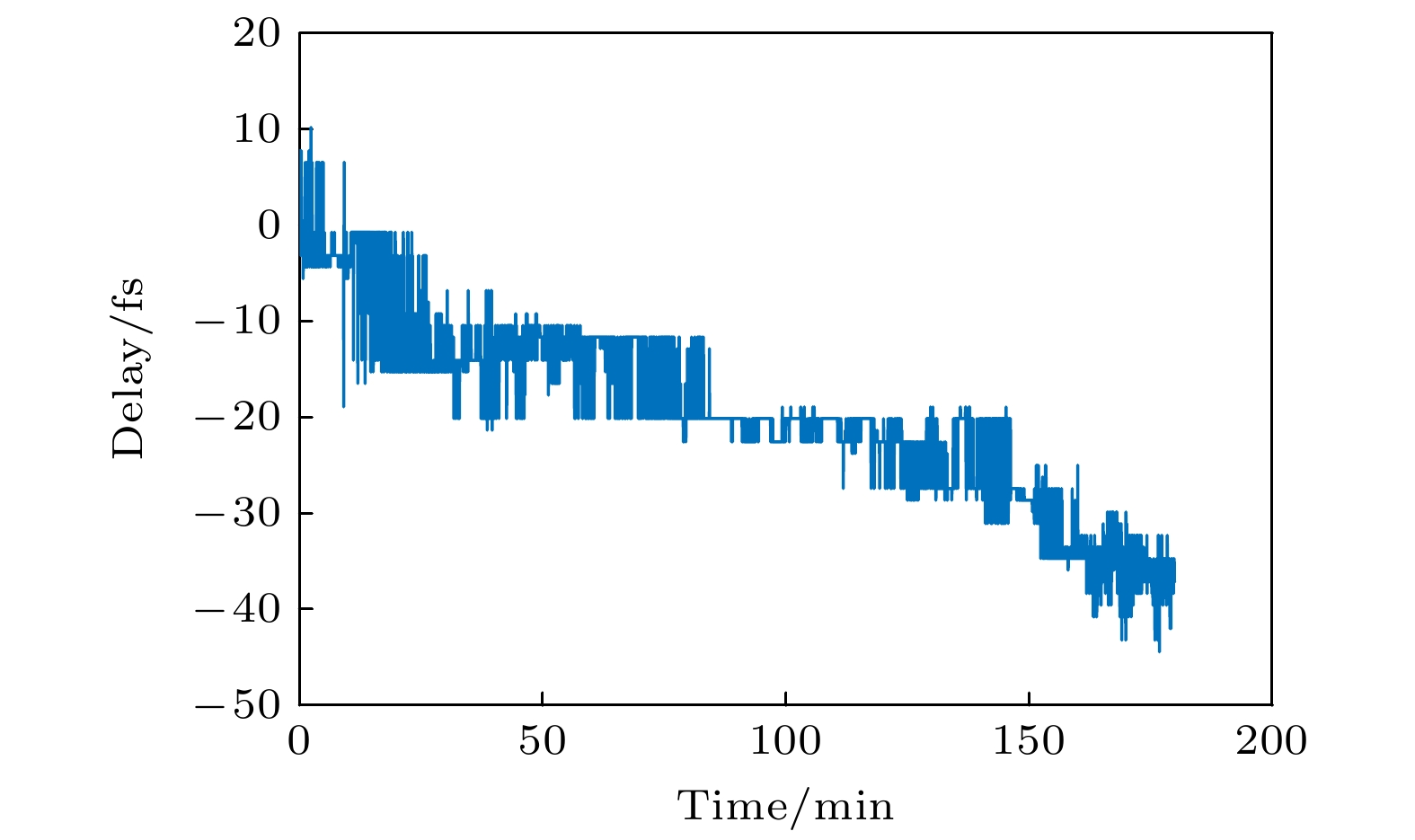

    图 10  3 h内相对延时的漂移曲线

    Fig. 10.  Relative delay drift over 3 h.

    图 11  氩原子的瞬态吸收实验结果

    Fig. 11.  Experimental results of transient absorption of helium atoms.

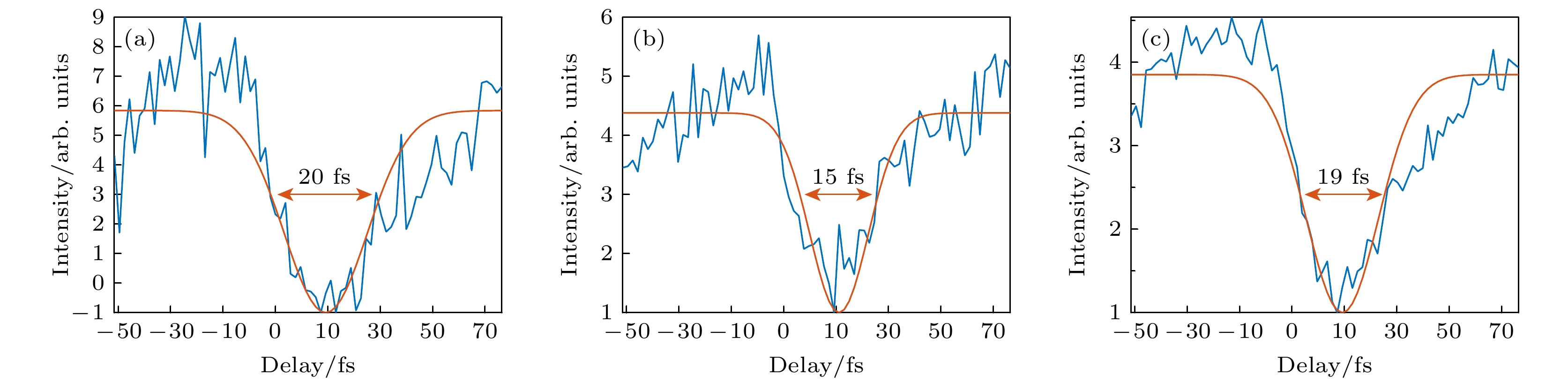

    图 12  吸收峰2p2/3–14s (a), 2p2/3–15s/3d (b)和 2p1/3–15s/3d (c)的强度随延迟的变化, 其中蓝色实线为实验数据, 红线为高斯拟合结果

    Fig. 12.  Intensity of the absorption peak 2p2/3–14s (a), 2p2/3–15s/3d (b) and 2p1/3–15s/3d (c) as a function of delay. The solid blue lines are the measured results, and the red lines represent the Gaussian fitting.

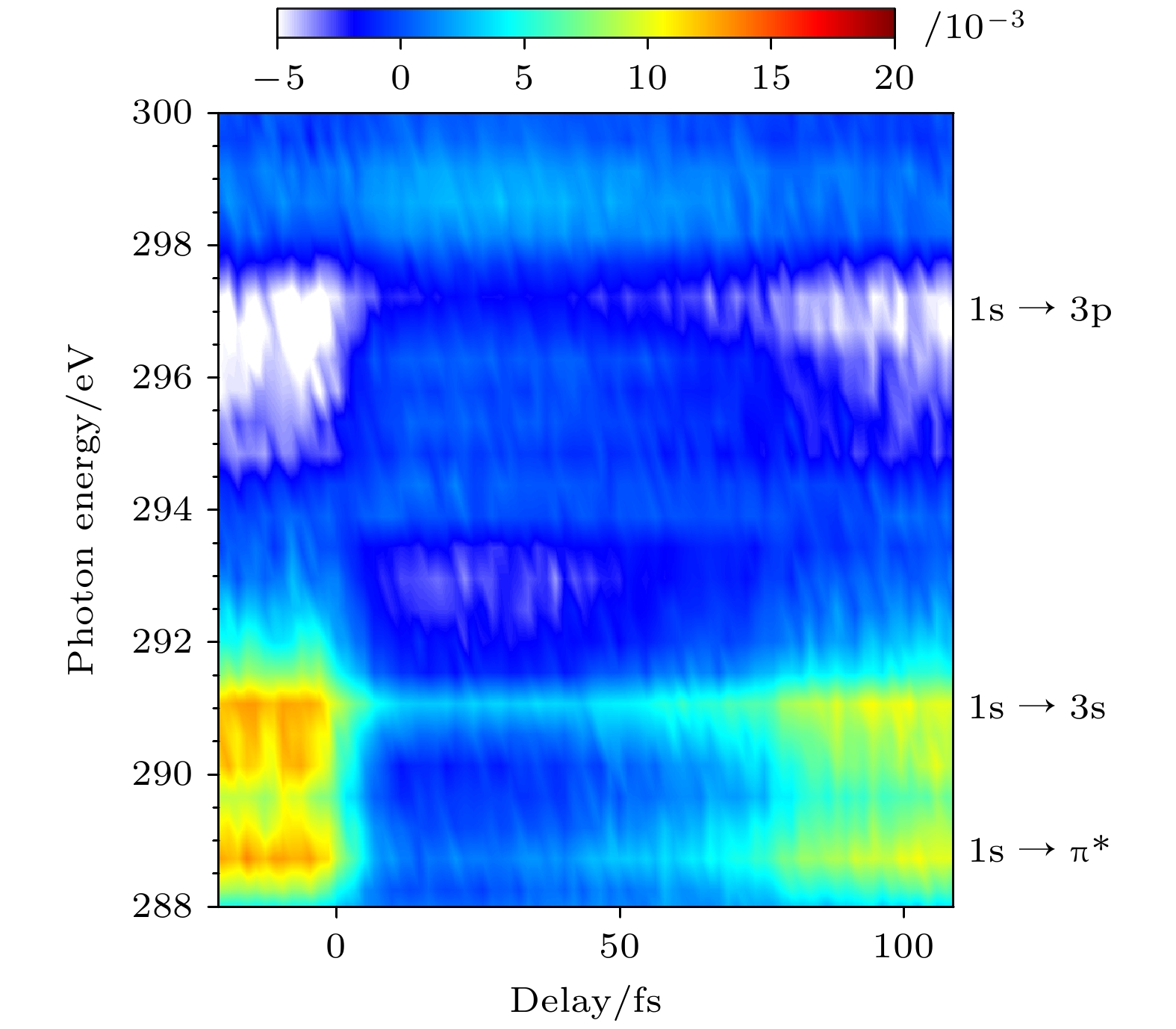

    图 13  CO2的瞬态吸收实验结果

    Fig. 13.  Experimental results of transient absorption of CO2.
