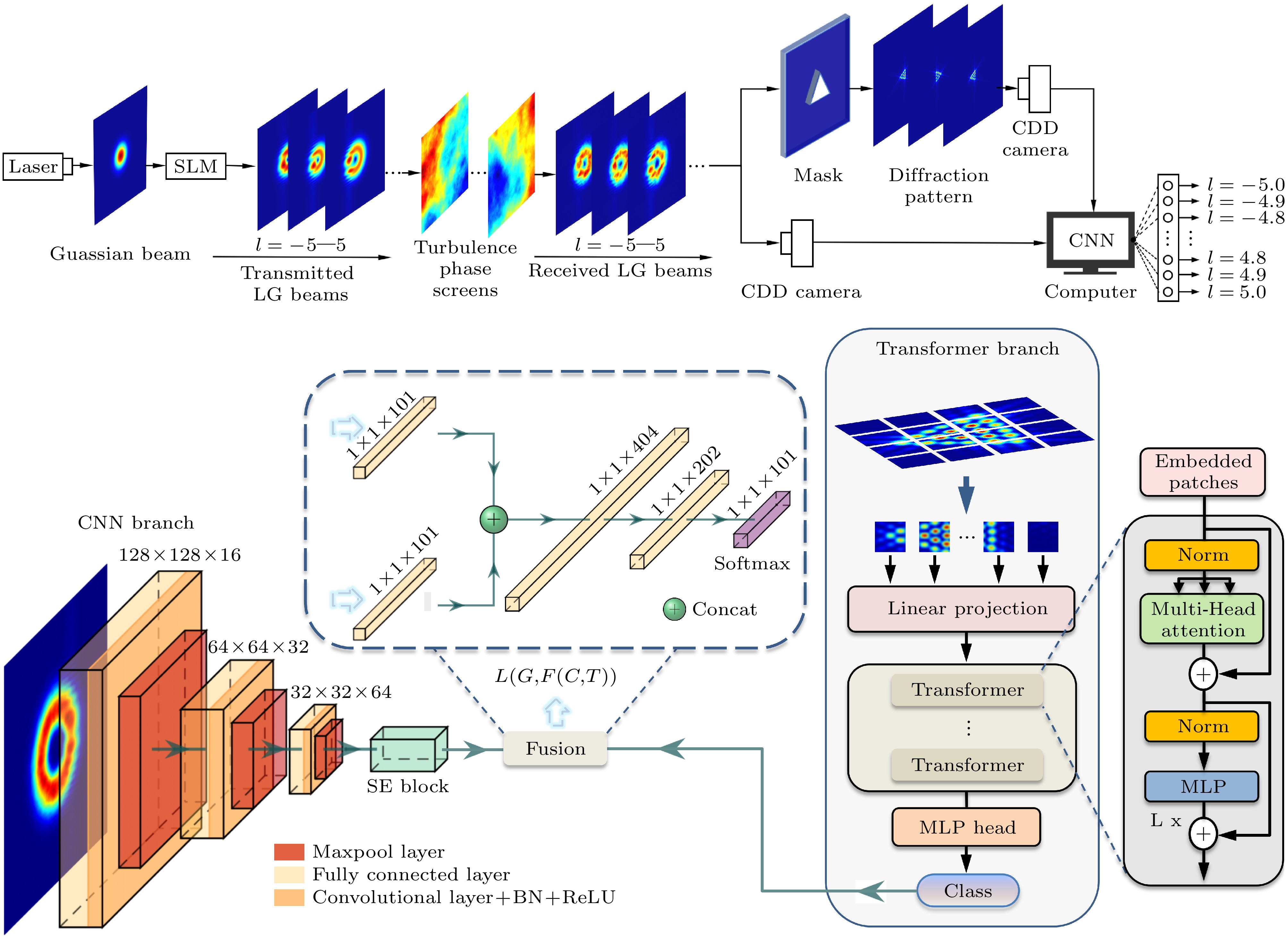

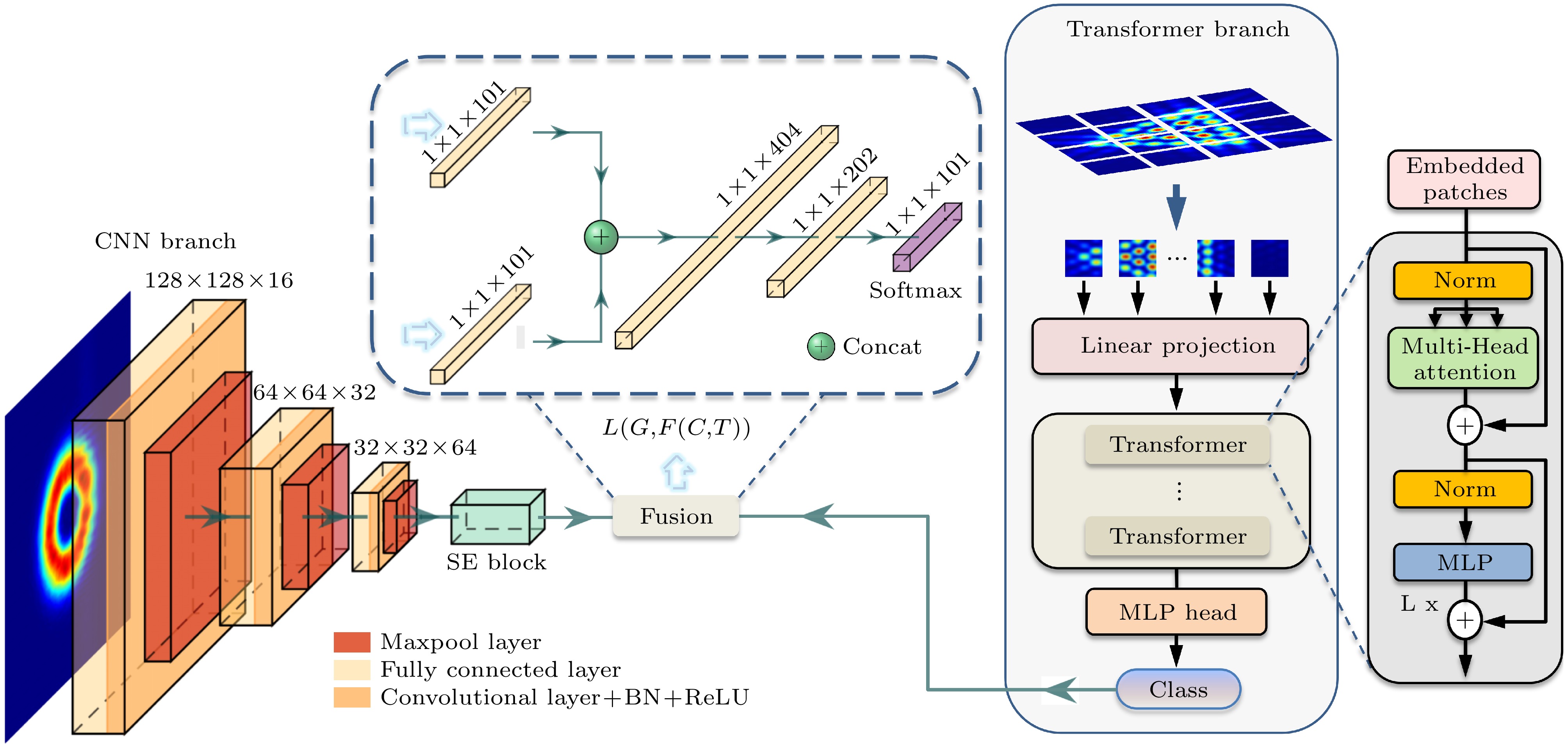

Utilizing fractional vortex beams (FVBs) as information carriers can significantly enhance the capacity of communication systems. However, the small gap difference among adjacent fractional orbital angular momentum (FOAM) modes makes FVBs highly sensitive to atmospheric turbulence. Therefore, precise measurement of distorted FOAM modes is crucial for practical FVBs-based communication systems. To fully utilize the beam intensity information and the triangular diffraction pattern information, we propose a dual-channel deep learning model with a hybrid architecture combining convolutional neural network (CNN) and Vision Transformer(ViT). The beam intensity information is extracted using CNN, while the diffraction pattern information is extracted using ViT. Then, by fusing the complementary feature information from the intensity distribution of FVBs and their triangular diffraction patterns, this model enables effective identification of FOAM modes. The results show that the proposed model only requires a relatively small number of samples to reach the convergence value, namely 100 sets of data under weak turbulence and 400 sets of data under strong turbulence. Moreover, within a transmission distance of 1000 m, the proposed model can identify 101 FOAM modes with a mode spacing of 0.1 with an accuracy of 100% under weak and moderate turbulences, and maintains 98.12% accuracy under strong turbulence. Furthermore, the model can expand the detection range of turbulence intensity with only a minimal loss in accuracy, exhibiting strong generalization ability under unknown atmospheric turbulence strengths, thus providing a novel approach for accurately identifying FOAM modes.
-
Keywords:
- Fractional Orbital Angular Momentum /
- Deep Learning /
- Triangular Diffraction /
- Atmospheric Turbulence
-
[1] Allen L, Beijersbergen M W, Spreeuw R J C, Woerdman J P 1992 Phys. Rev. A 45 8185
[2] Lei T, Zhang M, Li Y R, Jia P, Liu G N, Xu X G, Li Z H, Min C J, Lin J, Yu C Y, Niu H B, Yuan X C 2015 Light Sci. Appl. 4 e257
[3] Fu S Y, Zhai Y W, Zhou H, Zhang J Q, Wang T L, Yin C, Gao C Q 2019 Opt. Lett. 44 4753
[4] Nape I, Sephton B, Huang Y W, Vallés A, Forbes A 2020 APL Photon. 5 070801
[5] Krizhevsky A, Sutskever I, Hinton G E 2017 Commun. ACM 60 84
[6] Knutson E M, Lohani S, Danaci O, Huver S D, Glasser R T 2016 Proc. SPIE 9970 997013
[7] Park S R, Cattell L, Nichols J M, Watnik A, Doster T, Rohde G K 2018 Opt. Express 26 4004
[8] Fan W Q, Gao F L, Xue F C, Guo J J, Xiao Y, Gu Y J 2024 Appl. Opt. 63 982
[9] Berry M V 2004 J. Opt. A: Pure Appl. Opt. 6 259
[10] Phillips R L, Andrews L C 1983 Appl. Opt. 22 643
[11] Zhao Z, Zhang R Z, Song H, Pang K, Almaiman A, Zhou H B, Song H Q, Liu C, Hu N Z, Su X Z, Minoofar A, Sasaki H, Lee D, Tur M, Molisch A F, Willner A E 2021 Sci. Rep. 11 2110
[12] Zhu L H, Tang M M, Li H H 2021 Nanophotonics 10 2487
[13] Bu X, Zhang Z, Chen L 2018 IEEE Antennas Wirel. Propag. Lett. 17 764
[14] Zhou J, Zhang W H, Chen L X 2016 Appl. Phys. Lett. 108 111108
[15] Deng D, Lin M C, Li Y, Zhao H 2019 Phys. Rev. Appl 12 014048
[16] Liu Z W, Yan S, Liu H G, Chen X F 2019 Phys. Rev. Lett. 123 183902
[17] Jing G Q, Chen L Z, Wang P P, Xiong W J, Huang Z B, Liu J M, Chen Y, Li Y, Fan D Y, Chen S Q 2021 Results Phys. 28 104619
[18] Guo Y, Lü H, Ding C L, Yuan C Z, Jin R B 2025 Acta Phys. Sin. 74 014203 (in Chinese) [郭焱, 吕恒, 丁春玲, 袁晨智, 金锐博 2025 74 014203]
[19] Zhang H, Zeng J, Lu X, Wang Z, Zhao C, Cai Y 2022 Nanophotonics 11 241
[20] Hill R J 1978 J. Fluid Mech. 88 541
[21] Andrews L, Phillips R 2005 Laser Beam Propagation Through Random Media (Bellingham: SPIE) p135
[22] Schmidt J D 2010 Numerical Simlation of Optical Wave Propagation with examples in MATLAB (Bellingham: SPIE) p149
[23] Yang T, Zhao S 2017 Acta Opt. Sin. 37 1201001 (in Chinese) [杨天星, 赵生妹 2017 光学学报 37 1201001]
[24] Liu Y, Sun S, Pu J, Lü B 2013 Opt. Laser Technol. 45 473
[25] Zhao Q, Dong M, Bai Y H, Yang Y J 2020 Photon. Res. 8 745
[26] Hu J, Shen L, Albanie S, Sun G 2020 IEEE Trans. Pattern Anal. Mach. Intell. 42 2011
[27] Dosovitskiy A, Beyer L, Kolesnikov A, Weissenborn D, Zhai X H, Unterthiner T,Dehghani M, Minderer M, Heigold G, Gelly S, Uszkoreit J, Houlsby N 2021 arXiv:2010.11929 [cs.CV]
[28] Zhang Z, Sabuncu M 2018 arXiv:1805.07836 [cs.LG]
[29] Kingma D P, Ba J 2014 arXiv:1412.6980 [cs.LG]
[30] Wei D M, Du Q, Liu F N, Wang K, Zhao Y F 2023 Acta Opt. Sin. 43 269 (in Chinese) [魏冬梅，杜乾，刘芳宁，王珂，赵曰峰 2023 光学学报 43 269]
[31] Na Y, Ko D K 2021 Sci. Rep. 11 23505
