本文将多单元级联热辐射器件(TRD)应用于汽车尾气余热回收, 建立光子辐射传热、伏安特性与流体换热的耦合模型, 分析能量耦合机制, 旨在实现性能的协同优化. 基于傅里叶热传导定律与热辐射传递理论, 导出系统的能量约束方程、输出总功率和转换效率. 通过数值模拟, 获取尾气温度、TRD工作温度、环境温度随单元序号的变化规律, 进而揭示电压与半导体带隙对能量转换性能的调控机制. 研究表明, 尾气及TRD高温端温度均随单元序号而递减, 且同序号下随电流增大而降低; TRD低温端及环境温度因热累积和级联加热效应上升, 并随电流增大而升高, 体现了电学输出与热过程的耦合关系. 电压升高会抑制辐射复合, 导致电流下降, 电功率在特定工作点达到局域最优. 系统总热流随电压升高而降低, 热电效率因电功和热流的非线性关系, 在特定电压下取得最优值, 实现电能输出与热耗散的平衡. 研究表明, 局域最优功率在带隙为0.06 eV时取得全局最大值170.45 W, 而局域最优效率随带隙增大呈先单调递增而后渐趋饱和的变化趋势. 为此, 本文引入以局部最优功率与效率的乘积为目标函数Z. 分析表明, 该函数在带隙为0.105 eV处取得最大值49.74 W, 有效协调了功率与转换效率之间的竞争关系, 为系统的多目标性能优化提供了新途径.A multi-unit thermoradiative device (TRD) is used for automotive exhaust waste heat recovery in this study. A coupled model integrating radiative heat transfer, current-voltage characteristics, and fluid heat exchange is established. Based on Fourier’s law of heat conduction and thermal radiative transfer theory, the energy constraint equations, total power output, and conversion efficiency of the system are derived. The variations of exhaust gas temperature, TRD operating temperature, and ambient temperature with unit number are obtained through numerical simulations, thereby revealing the regulation mechanisms of voltage and semiconductor bandgap on energy conversion performance. Results show that the temperatures of the exhaust gas and the hot side of the TRD decrease with the increase of unit number and also decreases with the increase of current at the same unit position. In contrast, the cold side of the TRD and the ambient temperature rise due to heat accumulation and cascading heating effects, and further increase with current rising, reflecting the coupling between electrical output and thermal processes. Increasing the voltage suppresses radiative recombination, leading to reduced current, while the electrical power reaches a maximum at a specific operating point. The total heat flux is reduced as voltage increases. Because of the nonlinear relationship between electrical power and heat flux, efficiency attains an optimum value at a specific voltage, achieving a balance between electrical output and heat dissipation. This study demonstrates that the locally optimal power reaches a global maximum value of 170.45 W at a bandgap of 0.06 eV, whereas the locally optimal efficiency increases monotonically with the increase of bandgap before saturating gradually. To address the inherent trade-off between power and efficiency, a target function Z defined as the product of locally optimal power and efficiency is introduced. Numerical analysis reveals that Z attains its maximum value of 49.74 W at a bandgap of 0.105 eV, effectively balancing the competing objectives of power output and energy conversion efficiency. This study provides a new method for optimizing the performance of thermoelectric systems.
-
Keywords:
- thermoradiative devices /
- waste heat recovery /
- energy conversion /
- semiconductor band-gap /
- electrical-thermal coupling
-
图 1 (a) TRDs的结构图和(b)单个TRD的能带图[4]
Fig. 1. (a) Structure diagram of TRDs and (b) energy band diagram of a single TRD.

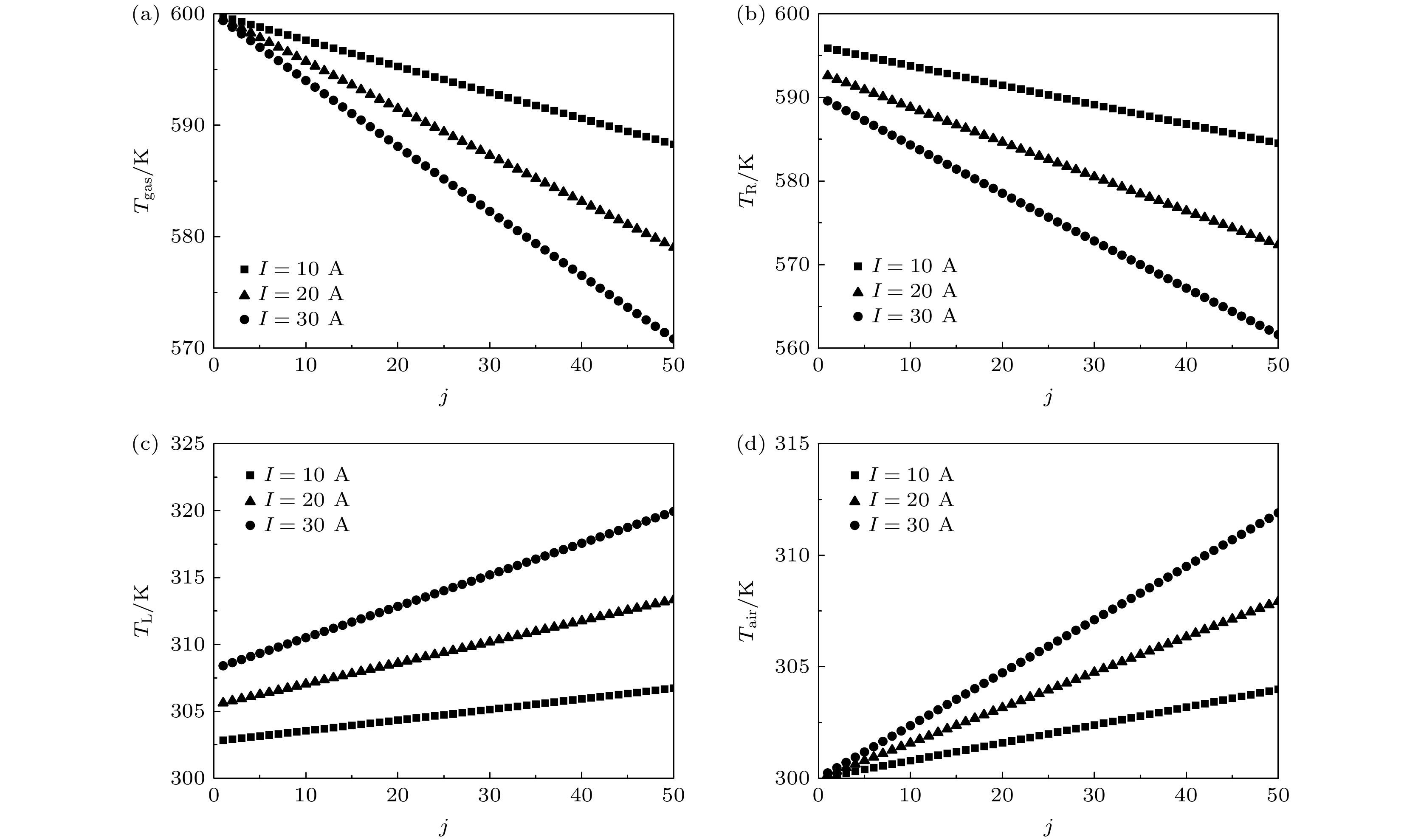

图 2 各参数随序号j的变化图 (a) 尾气温度; (b) TRD高温端温度; (c) TRD低温端温度; (d) 空气温度
Fig. 2. Curves of the (a) automotive exhaust temperature; (b) TRD hot-side temperature; (c) TRD cold-side temperature; (d) ambient air temperature with unit number j.

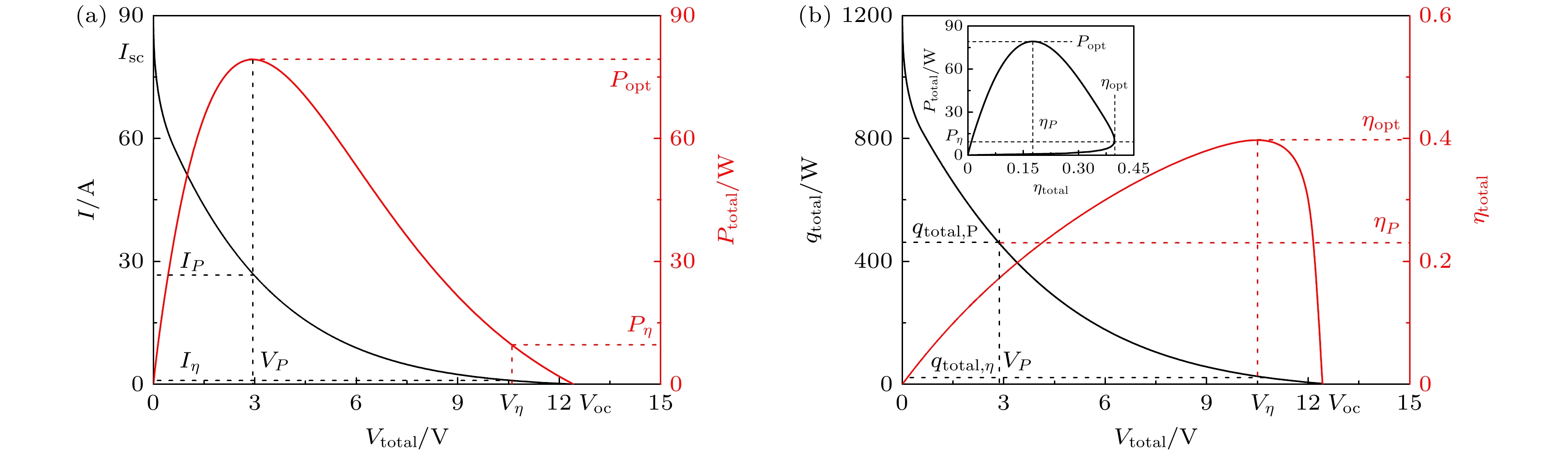

图 3 (a) 串联电流和总功率; (b) 总输出热流和效率随TRDs总输出电压的变化曲线
Fig. 3. The curves of the (a) electrical current and total power output, (b) total output heat flow and efficiency varying with the total output voltage.

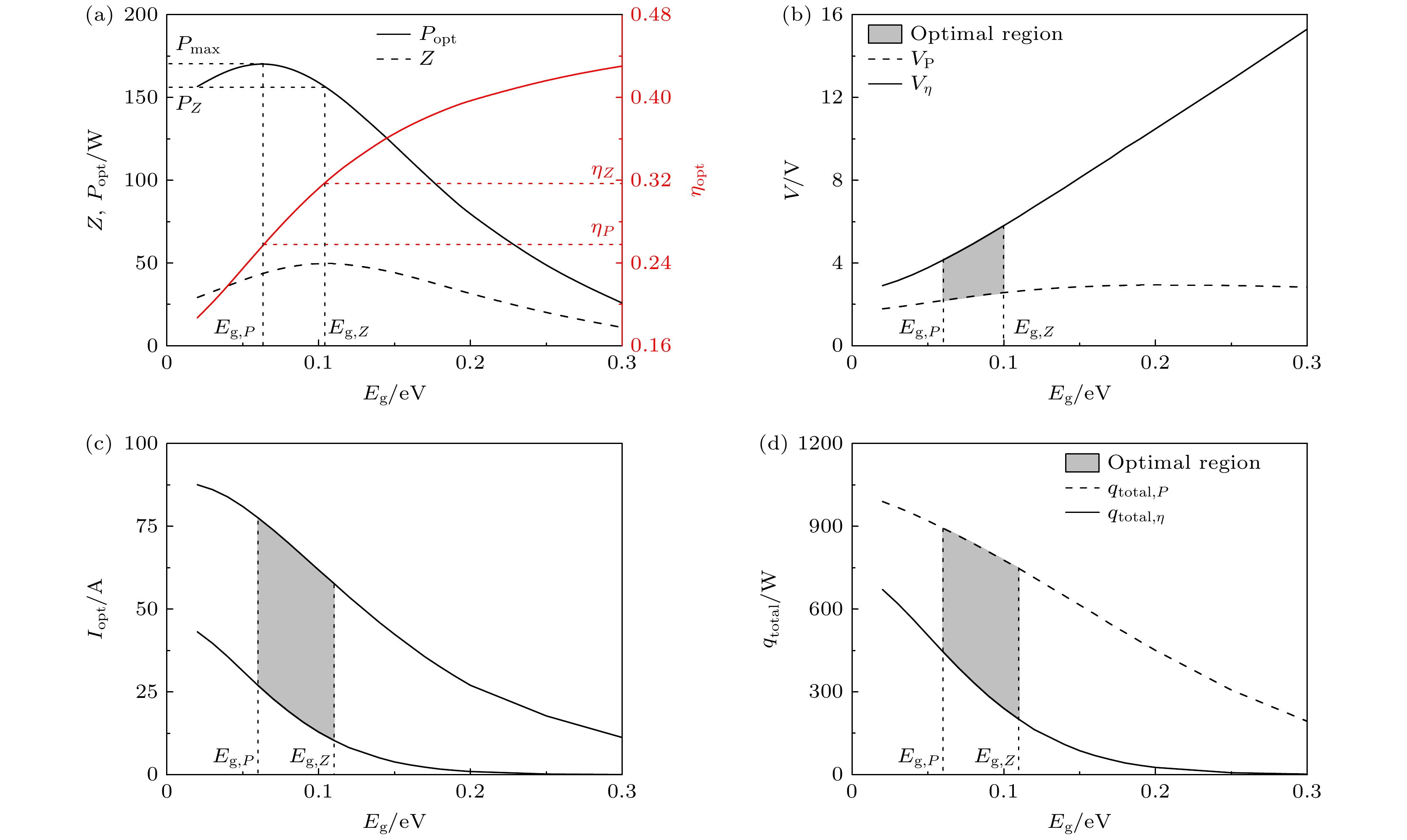

图 4 (a) 局域最优功率和效率及其对应的优化; (b) 电压, (c) 电流和(d) 热流随带隙变化的曲线
Fig. 4. Optimization curves of (a) local optimal power and efficiency, along with the corresponding optimized (b) voltage, (c) current density, and (d) heat flux density versus band-gap.
表 1 系统参数取值
Table 1. parametric selections of the system.
参数 取值 $ {C}_{\text{p,gas}} $/(J·kg–1·K–1)[31] 841 $ {C}_{\text{p,air}} $/(J·kg–1·K–1) [32] 1003 $ {\overline{M}}_{\text{air}} $/(kg·mol–1) [33] 2.89×10–2 Do/mm 54 Di/mm 50 L/m 1 μ/(Pa·s)[22] 3.01×10–⁵ κgas/(W·m–1·K–1)[34] 0.0472 $ {A}_{\text{air}} $/m2 3×10–3 $ {A}_{{j}} $/m2 0.01 $ {T}_{\text{g,in},j=1} $/K 600 $ {v}_{\text{gas}} $/(m·s–1)[35] 12 $ {v}_{\text{air}} $/(m·s–1) [35] 10
下载: 导出CSV
-
