共价有机框架(covalent organic framework, COF)因具有高度有序的多孔结构、优异的分子吸附能力和结构稳定性, 被认为是一类具有潜力的表面增强拉曼散射(surface-enhanced Raman scattering, SERS)基底. 然而, 传统COF材料因缺乏等离激元特性而难以实现高强度的拉曼增强效应, 从而限制了其在高灵敏检测中的应用. 为此, 本研究设计并制备了一种新型钌基共价有机框架(Ru-COF)复合材料, 用于构建高性能SERS活性基底. 通过将钌配合物直接引入COF骨架, 形成稳定的Ru-N/O共价配位结构, 有效提高了钌的负载量和分散性, 显著增强了基底的电磁场耦合强度和电子传输能力. 与纯COF相比, Ru-COF基底在检测亚甲基蓝分子时表现出优异的SERS响应性能, 其检测限低至10–12 mol/L, 线性相关系数R2 ≥ 0.99, 增强因子高达1.83×1010, 信号重现性良好(相对标准偏差<5%), 并在空气中暴露4个月后仍保持超过90%的初始信号强度, 显示出极佳的稳定性与耐久性. 进一步的应用研究表明, Ru-COF基底在复杂水样中依然能够实现对痕量亚甲基蓝分子的稳定检测, 检测限仍维持在10–12 mol/L量级, 且具有优异的抗离子干扰与信号一致性. 这说明该基底不仅在标准条件下表现出卓越的灵敏度和重现性, 也具备在真实环境样品中进行高灵敏定量检测的潜力. 该材料的设计思路为金属-有机协同增强型SERS体系提供了新的研究方向, 并为其在环境污染物检测、食品安全分析及临床诊断等领域的实际应用奠定了重要基础.Covalent organic frameworks (COFs) have emerged as promising substrates for surface-enhanced Raman scattering (SERS) due to their highly ordered crystalline porous architecture, superior molecular adsorption and enrichment capabilities, and excellent thermal and chemical stability. However, pure COFs inherently lack plasmonic resonance and free electron density, resulting in limited electromagnetic enhancement and overall weak SERS signal, which hinders their practicality in ultrasensitive molecular detection applications. To overcome these limitations, this study aims to design and synthesize a novel ruthenium-based covalent organic framework composite (Ru-COF) by integrating ruthenium complexes directly into the COF skeleton, thereby creating a metal-organic, synergy-enhanced SERS substrate suited for trace analysis in real water.A Ru-COFis synthesized by solvothermal condensation of 1, 2, 4, 5-benzenetetramine (BTA·4HCl) with tris (4, 4’-dicarboxy-2, 2’-bipyridyl) ruthenium, forming Ru-N/O coordinated nodes within the framework. The material is characterizedusing X-ray diffraction (XRD) to confirm enhanced π-π stacking and new crystalline peaks at 10.2° and 16° in Ru-COF, Fourier-transform infrared spectroscopy (FT-IR) to verify amide and benzimidazole bond formations with shifts indicating Ru integration, Brunauer-Emmett-Teller (BET) analysis to reveal the increased specific surface areas (22.5 m2/g for Ru-COF vs. 17.2 m2/g for COF), and scanning electron microscopy (SEM) with energy-dispersive X-ray spectroscopy (EDS) mapping to show uniform distribution of C, N, O, and Ru elements in a dense layered morphology. SERS performance is evaluated using methylene blue (MB) as a probe molecule on a Renishaw InVia Raman spectrometer (514.5 nm excitation, 40 mW power, 10 s exposure), with additional tests on 4-mercaptobenzoic acid (4-MBA) for universality assessment. Enhancement mechanisms are analyzed through energy level alignments, with Ru-COF’s HOMO/LUMO at –0.95 eV/–1.12 eV (vs. vacuum) facilitating hole-injection charge transfer to MB’s levels (–2.34 eV/–4.15 eV), enhancing polarizability derivatives and Raman cross-sections via Herzberg-Teller coupling. The results demonstrate that Ru-COF exhibits superior SERS activity compared with pure COF and Ag-COF. For MB detection, the characteristic peak at 1624 cm–1 shows an analytical enhancement factor (EF) of 1.83 × 1010, calculated from normalized intensities and molecular densities, which far exceeds COF’s performance. Concentration-dependent spectra reveal a linear response from 10–3 to 10–13 M (R2 = 0.997), with a limit of detection (LOD, S/N = 3) of 4.16 × 10–12 M. Signal reproducibility is excellent, with a relative standard deviation (RSD) of 3.41% across 10 random spots. Cycling tests (5 repetitions) retain 90.2% of initial intensity, and long-term stability assessment shows 85.7% signal retention after four-months of air exposure. For 4-MBA, non-resonant enhancement yields an LOD of 10–12 mol/L, dominated by CM via interfacial coordination and π-π interactions. In complex matrices such as tap and river water, Ru-COF maintains LODs of 5.2 × 10–12 mol/L and 6.8 × 10–12 mol/L, respectively, with 91% signal retention after five cycles, demonstrating robust anti-interference against ions (e.g., Cl–, SO42–) and organic impurities, attributed to the hydrophobic porous structure and stable Ru coordination. In conclusion, the Ru-COF composite represents a breakthrough in SERS substrate design by achieving ultrasensitive detection through EM-CM synergy, with key physical outcomes including high EF, sub-picomolar LODs, and exceptional spatiotemporal stability. This work provides a novel paradigm for metal-embedded COFs in plasmonic sensing and lays the groundwork for practical applications in environmental monitoring, food safety, and biomedical diagnostics.
-
Keywords:
- surface-enhanced Raman scattering /
- covalentorganic framework /
- ruthenium-based composite /
- high-sensitivity detection /
- stability
-

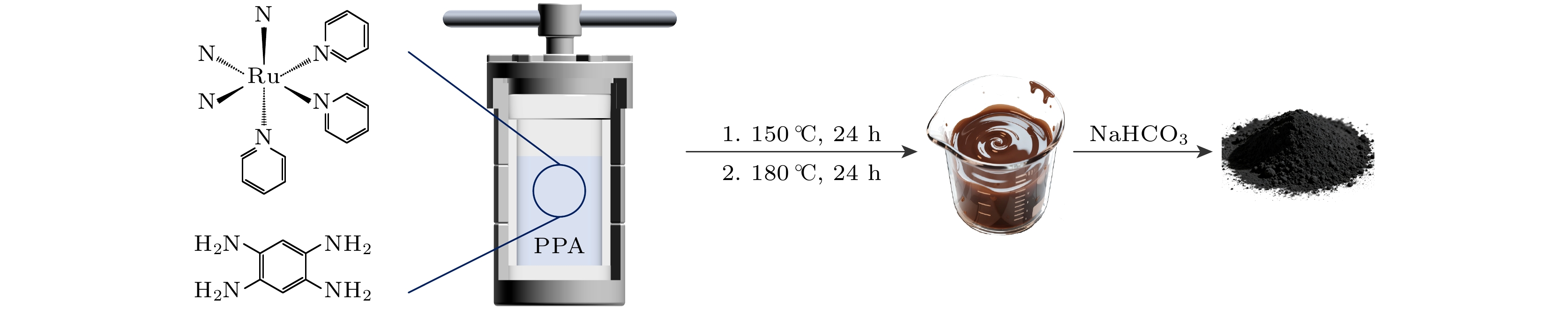

图 1 Ru-COF的合成程序示意图
Fig. 1. Schematic illustration of the synthetic procedure for Ru-COF.

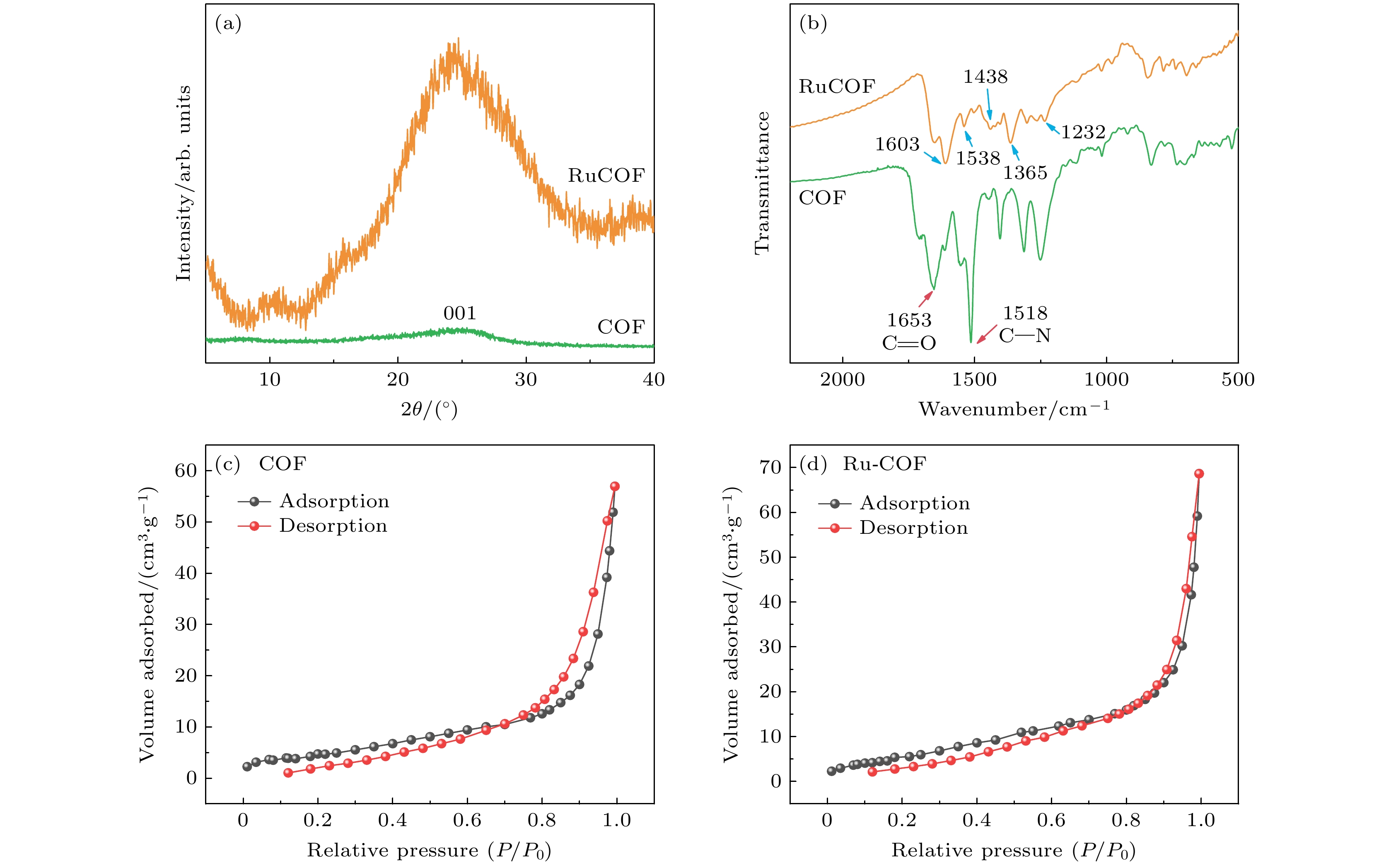

图 2 (a) COF和Ru-COF复合材料的XRD图谱; (b) COF和Ru-COF复合材料的傅里叶变换红外光谱; (c) COF的N2吸附等温线; (d) Ru-COF的N2吸附等温线
Fig. 2. (a) XRD patterns of COF and Ru-COF composites; (b) FT-IR spectroscopy of COF and Ru-COF composites; (c) N2 sorption isotherms of COF; (d) N2 sorption isotherms of Ru-COF.

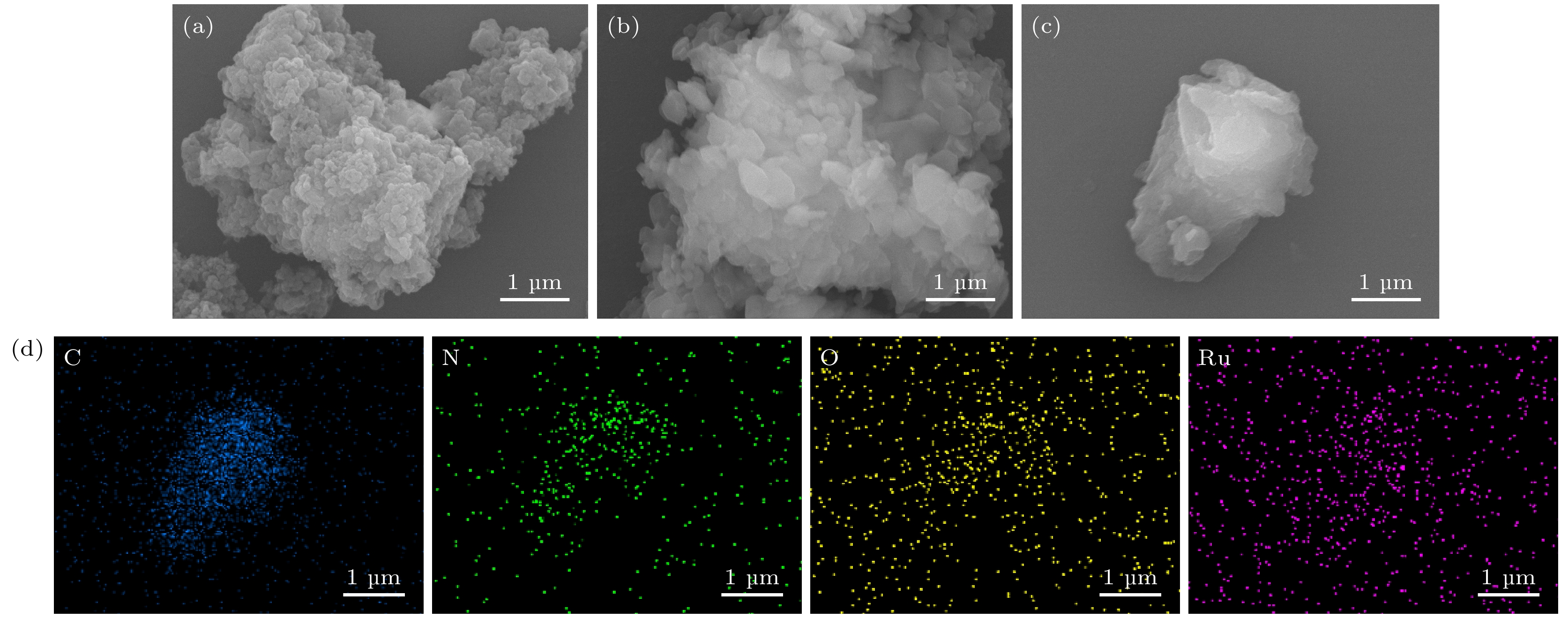

图 3 (a) COF和(b) Ru-COF的TEM图像; (c) Ru-COF的SEM图像; (d) Ru-COF中C, N, O, Ru的对应元素映射
Fig. 3. TEM images of (a) COF and (b) Ru-COF; (c) SEM images of Ru-COF; (d) the corresponding elemental mappings of C, N, O, and Ru in Ru-COF.

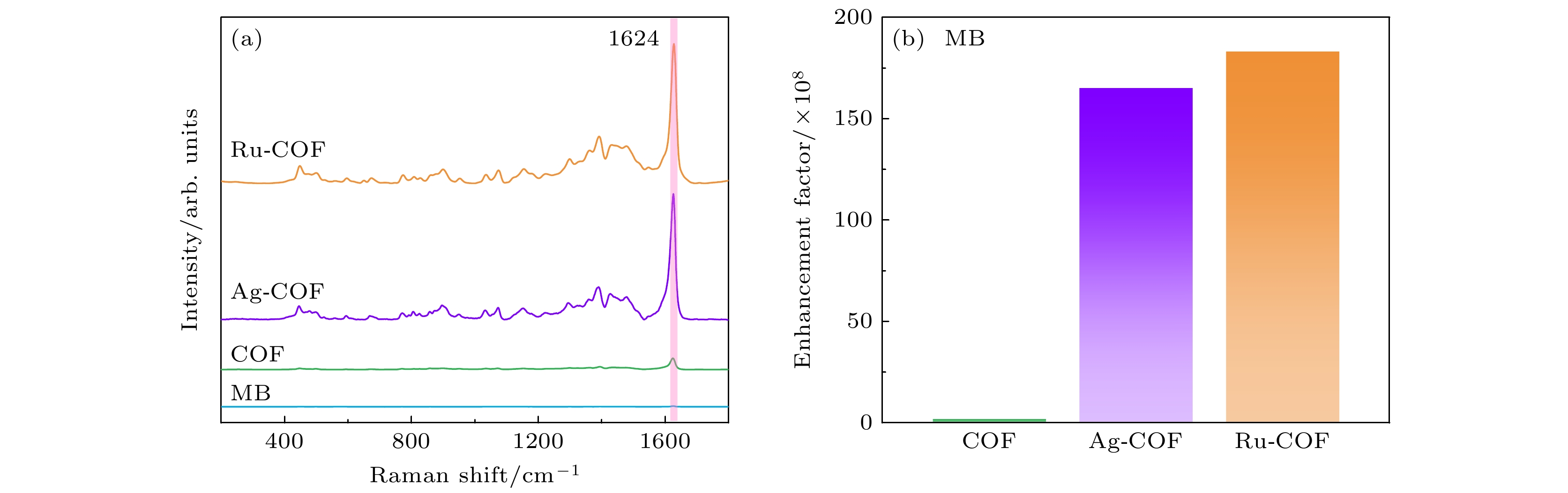

图 4 (a) MB在COF, Ag-COF和Ru-COF基底上的SERS光谱; (b) COF, Ag-COF和Ru-COF基底增强因子的对比柱状图
Fig. 4. (a) SERS spectra of MB at COF, Ag-COF and Ru-COF substrate; (b) comparative bar chart for thesubstrate enhancement factors of COF, Ag-COF and Ru-COF.

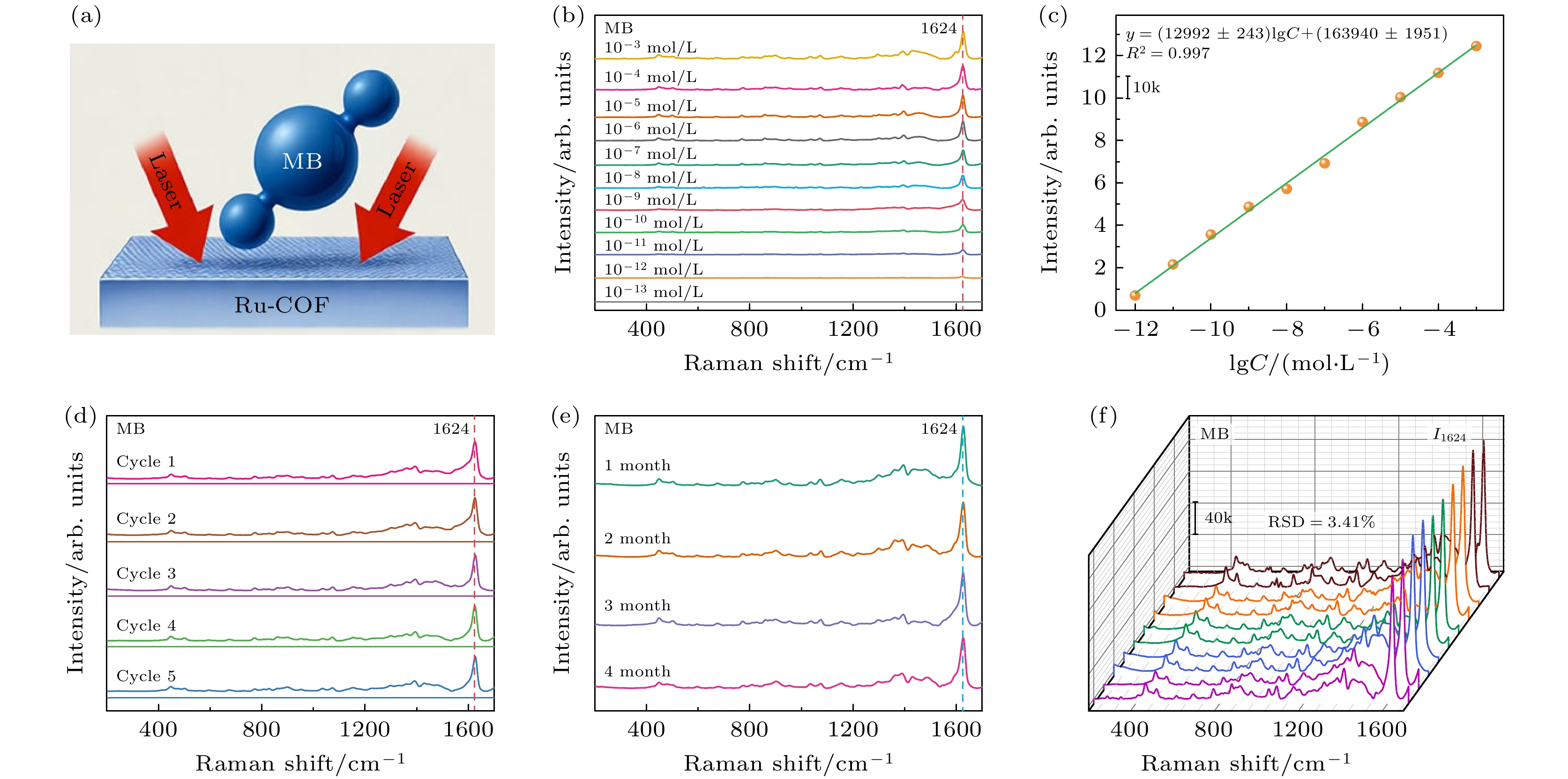

图 5 (a) MB在Ru-COF基底上测试SERS光谱示意图; (b) 不同浓度的MB在Ru-COF基底上的SERS光谱; (c) 拉曼强度与不同MB浓度之间的线性关系; (d) Ru-COF在循环5次时的相应归一化拉曼强度; (e) Ru-COF样品在不同储存时间下的SERS强度; (f) Ru-COF在10个不同位置的MB SERS光谱
Fig. 5. (a) SERS spectra of MB at COF and Ru-COF substrate; (b) SERS spectra of MB at various concentrations on the Ru-COF substrate; (c) the linear relationship between Raman intensity and different MB concentration; (d) the corresponding normalized Raman strength of the Ru-COF when it is cycled 5 times; (e) SERS intensity of Ru-COF sample at different storage times; (f) MB SERS spectra of Ru-COF at 10 differentlocations.

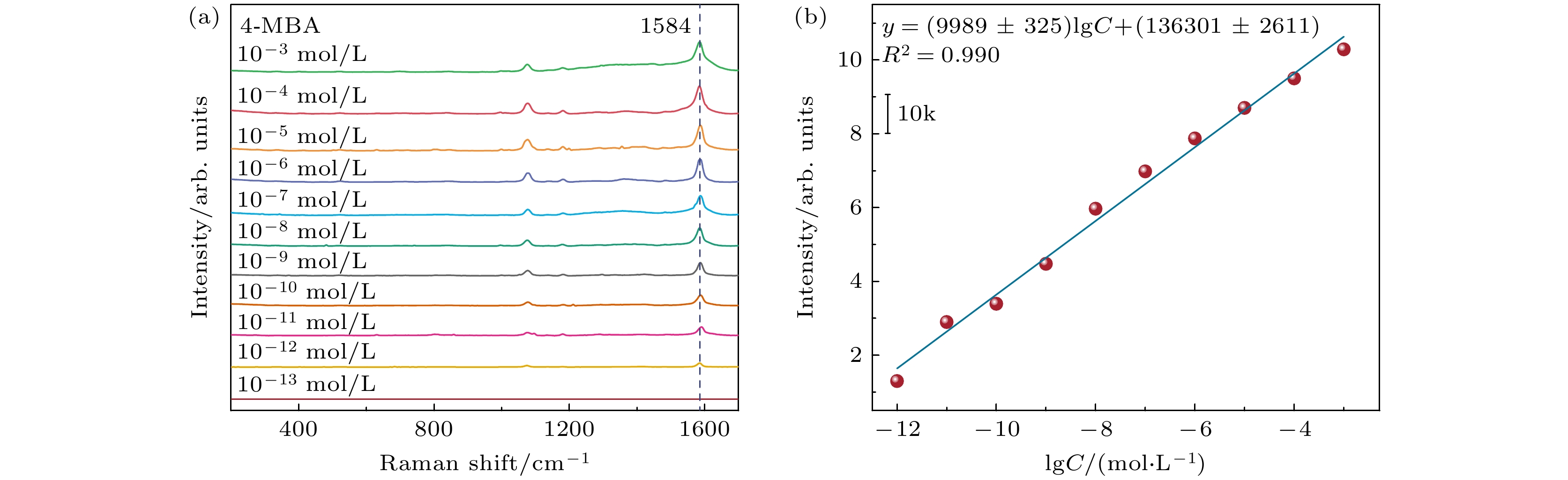

图 6 (a) 不同浓度的4-MBA在Ru-COF基底上的SERS光谱; (b) 拉曼强度与不同4-MBA浓度之间的线性关系
Fig. 6. (a) SERS spectra of MB at various concentrations on the Ru-COF substrate; (b) the linear relationship between Raman intensity and different MB concentration.

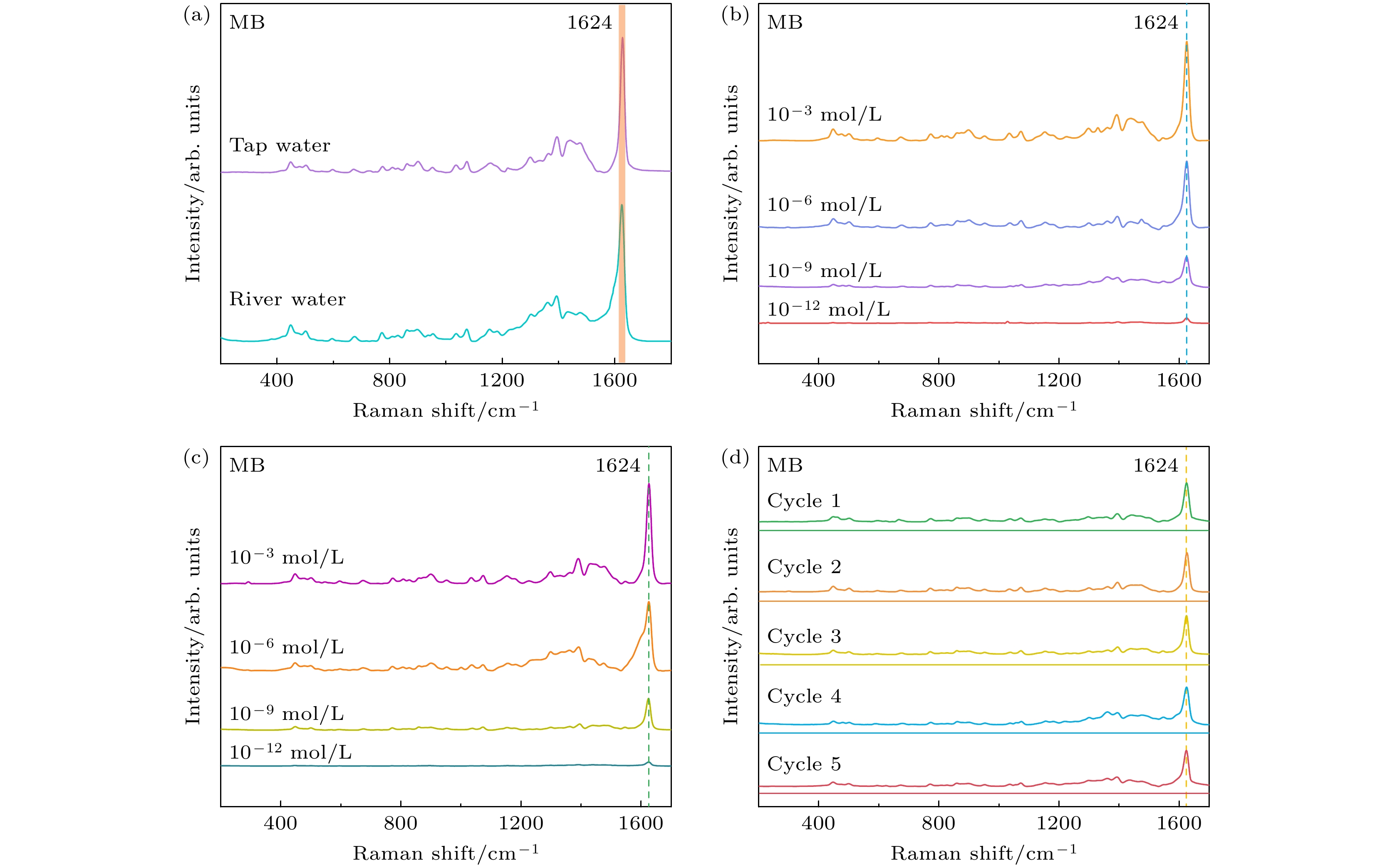

图 7 (a) Ru-COF基底在不同水样(自来水与河水)中检测MB的SERS光谱; (b) 不同浓度MB的自来水在Ru-COF基底上的SERS光谱; (c) 不同浓度MB的河水在Ru-COF基底上的SERS光谱; (d) Ru-COF在循环5次时的相应归一化拉曼强度
Fig. 7. (a) SERS spectra of MB detected on the Ru-COF substrate in different water samples (tap water and river water); (b) comparison of SERS intensities of MB with various concentrations in tap water on the Ru-COF substrate; (c) comparison of SERS intensities of MB with various concentrations in river water on the Ru-COF substrate; (d) signal retention ratio of Ru-COF substrate after five repeated detections in water samples.
-
