神经形态计算的硬件实现, 正从传统架构转向对生物神经元内在物理机制的更精细模拟. 聚焦于电场-磁场能量交换这一核心过程, 本文提出一种基于荷控忆阻器的无电容嵌入式神经元电路设计方法. 通过构建无量纲动力学方程并采用雅可比矩阵特征值分析, 验证了该模型的稳定性特征. 研究结果表明, 该模型不仅可通过外界刺激、反转电位及离子通道导通性等参数灵活调控神经元放电模式, 还展现出良好的噪声鲁棒性与能量效率. 进一步通过电阻参数优化策略, 使电路能耗得到显著控制. 本文可为发展高集成度、低能耗的下一代神经形态计算电路提供理论支撑与设计参考.
To address the issues of high dynamic power consumption and substantial occupation of silicon integration resources in traditional capacitor-containing neuronal circuits, this study proposes a capacitor-free neuronal circuit based on a charge-controlled memristor. By taking the intrinsic parameters of the charge-controlled memristor as the reference for scaling transformation, dimensionless dynamical equations are derived. The local asymptotic stability of the system is verified using Jacobian matrix eigenvalue decomposition and the Routh-Hurwitz criterion. Gaussian white noise is introduced to simulate the interference for detecting coherent resonance, while energy characteristics are analyzed by combining Hamiltonian energy formulas and resistance energy consumption expressions. Additionally, the fourth-order Runge-Kutta method is adopted to conduct numerical simulations. The research results indicate that external stimulus, ionic channel conductance, and reversal potential can flexibly regulate the periodic/chaotic firing modes of the neuron. In the periodic state, the proportion of electric field energy of the charge-controlled memristor in the total energy is higher; in the chaotic state, however, the proportion of magnetic field energy of the inductive coils increases. The circuit exhibits coherent resonance under the influence of noise, and resistor is the main energy-consuming component. The conclusion proves that the circuit is feasible in principle, with rich dynamical characteristics and good noise robustness. Adjusting the resistance value can enhance energy efficiency while preserving multiple firing modes, thereby providing theoretical support and optimization direction for designing high-integration, low-power neuromorphic computing circuits.
-
Keywords:
- memristive neural circuits /
- stability analysis /
- coherent resonance /
- energy consumption control
-

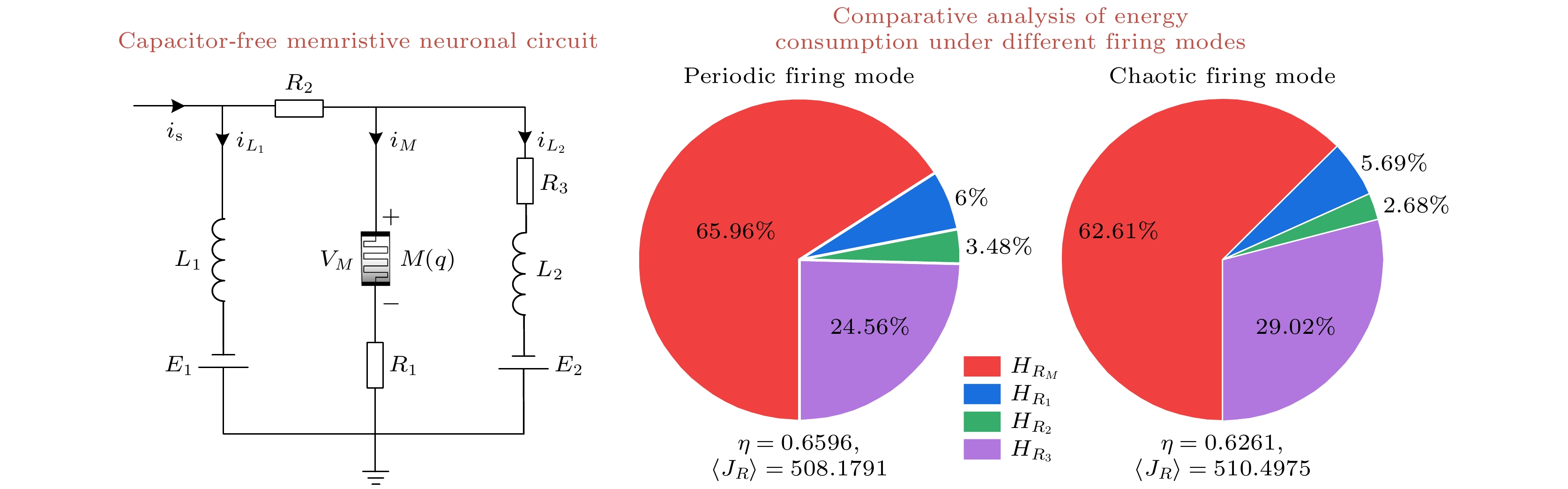

图 1 无电容嵌入式忆阻神经元电路示意图. M(q)表示荷控忆阻器, L1, L2表示感应线圈, E1, E2表示恒定电压源, R1, R2, R3表示恒定电阻
Fig. 1. Schematic diagram of the capacitor-free embedded memristive neural circuit. M(q) denotes the charge-controlled memristor, L1 and L2 denote inductive coils, E1 and E2 denote constant voltage sources, and R1, R2, and R3 denote constant resistors.
图 2 变量x的峰值xpeak和系统最大Lyapunov指数关于激励频率ω的分岔图
Fig. 2. Bifurcation diagram of the peak value xpeak of variable x and the maximum Lyapunov exponent of the system versus the excitation frequency ω.
图 3 不同激励频率ω下, 相图、膜电位u和哈密顿能量H的演化图 (a1)—(a3) ω = 0.233; (b1)—(b3) ω = 0.857
Fig. 3. Phase portraits, time evolution of the membrane potential u, and time evolution of the Hamilton energy H under different excitation frequencies ω: (a1)–(a3) ω = 0.233; (b1)–(b3) ω = 0.857.
图 4 变量x的峰值xpeak和系统最大Lyapunov指数关于参数A的分岔图
Fig. 4. Bifurcation diagram of the peak value xpeak of variable x and the maximum Lyapunov exponent of the system versus parameter A.

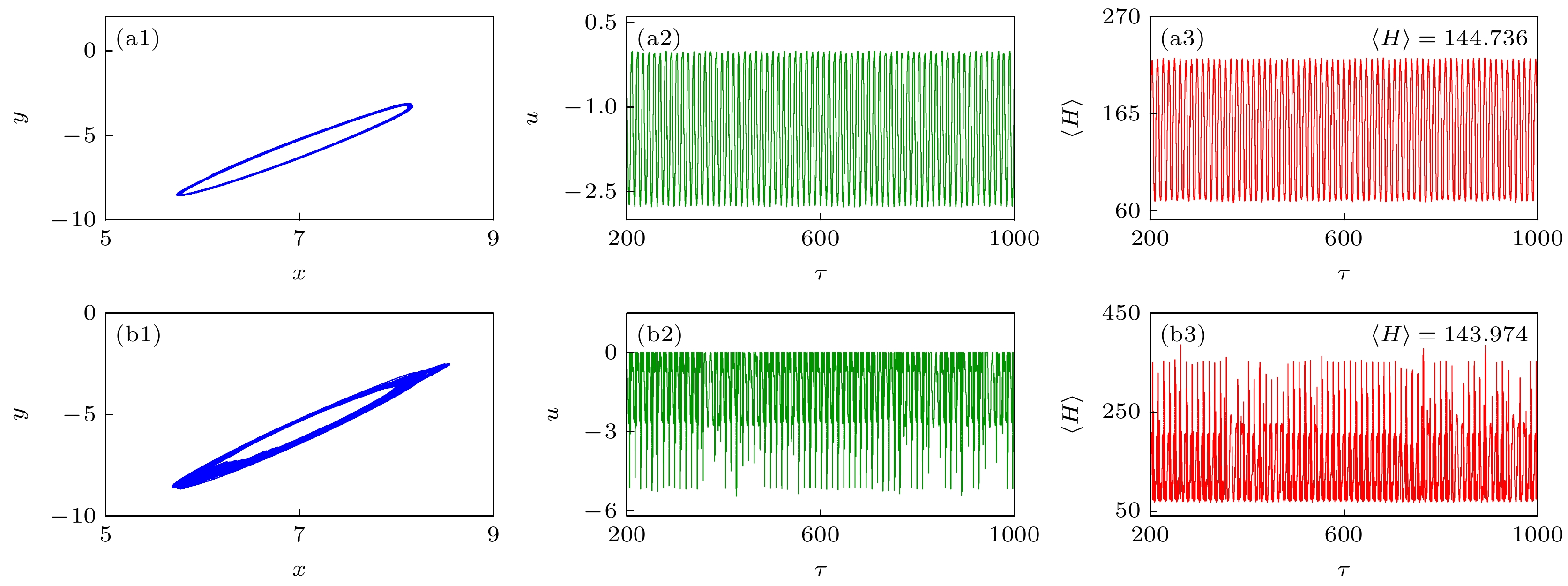

图 5 不同激励幅值A下, 相图、膜电位u和哈密顿能量H的演化图 (a1)—(a3) A = 3.623, (b1)—(b3) A = 3.77
Fig. 5. Phase portraits, time evolution of the membrane potential u, and time evolution of the Hamilton energy H under different parameter A: (a1)–(a3) A = 3.623; (b1)–(b3) A = 3.77.
图 6 变量x的峰值xpeak和能量平均值$ \left\langle H\right\rangle $随参数a变化的依赖关系曲线
Fig. 6. Bifurcation diagram of the peak value xpeak of variable x and average energy $ \left\langle H\right\rangle $versus parameter a.

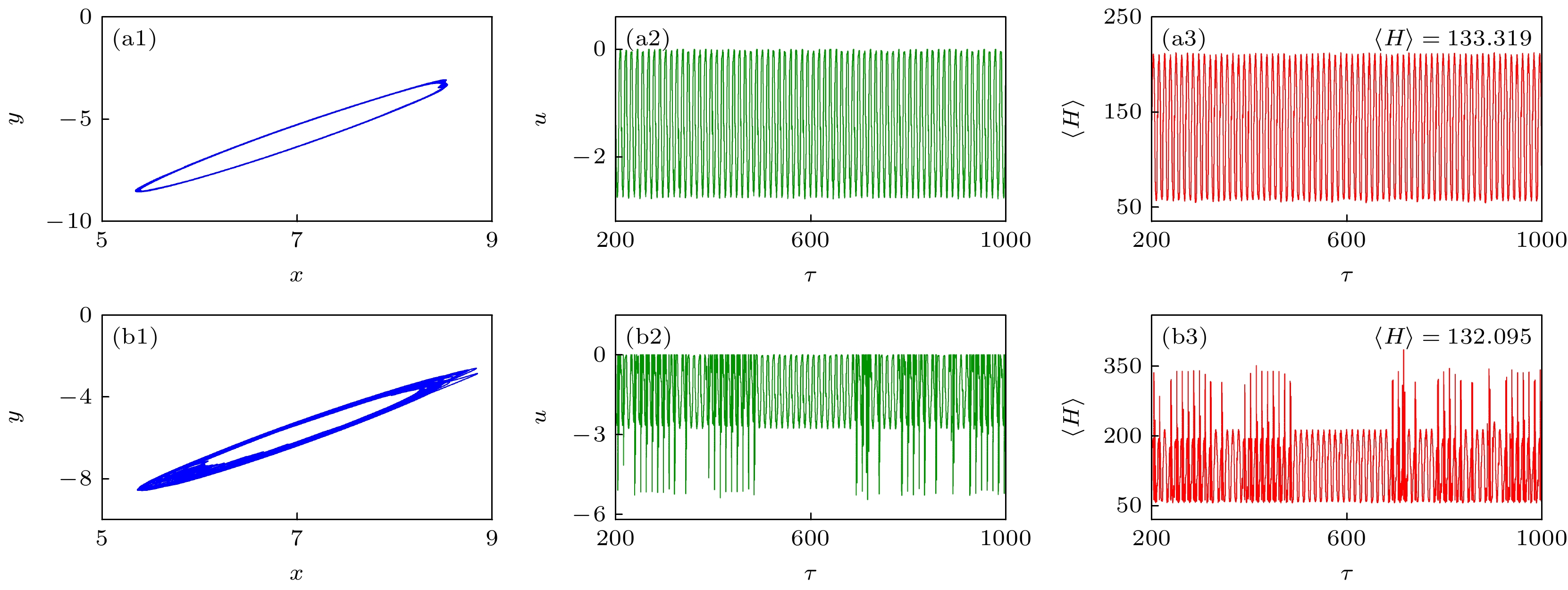

图 7 不同参数a下, 相图、膜电位u和哈密顿能量H的演化图 (a1)—(a3) a = 0.579; (b1)—(b3) a = 0.56
Fig. 7. Phase portraits, time evolution of the membrane potential u, and time evolution of the Hamilton energy H under different parameter a: (a1)–(a3) a = 0.579; (b1)–(b3) a = 0.56

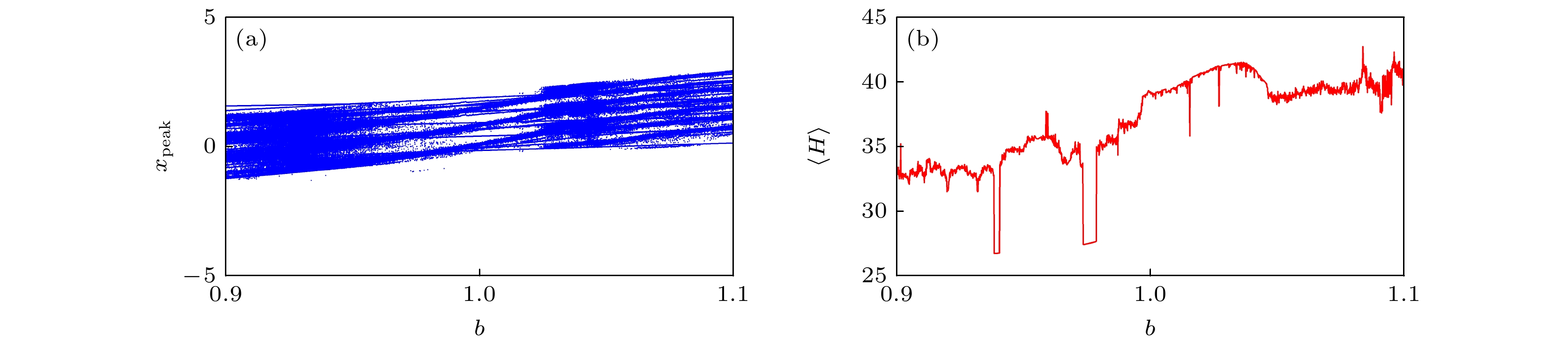

图 8 变量x的峰值xpeak和能量平均值$ \left\langle H\right\rangle $随参数b变化的依赖关系曲线
Fig. 8. Bifurcation diagram of the peak value xpeak and average energy $ \left\langle H\right\rangle $ of variable x versus parameter b.

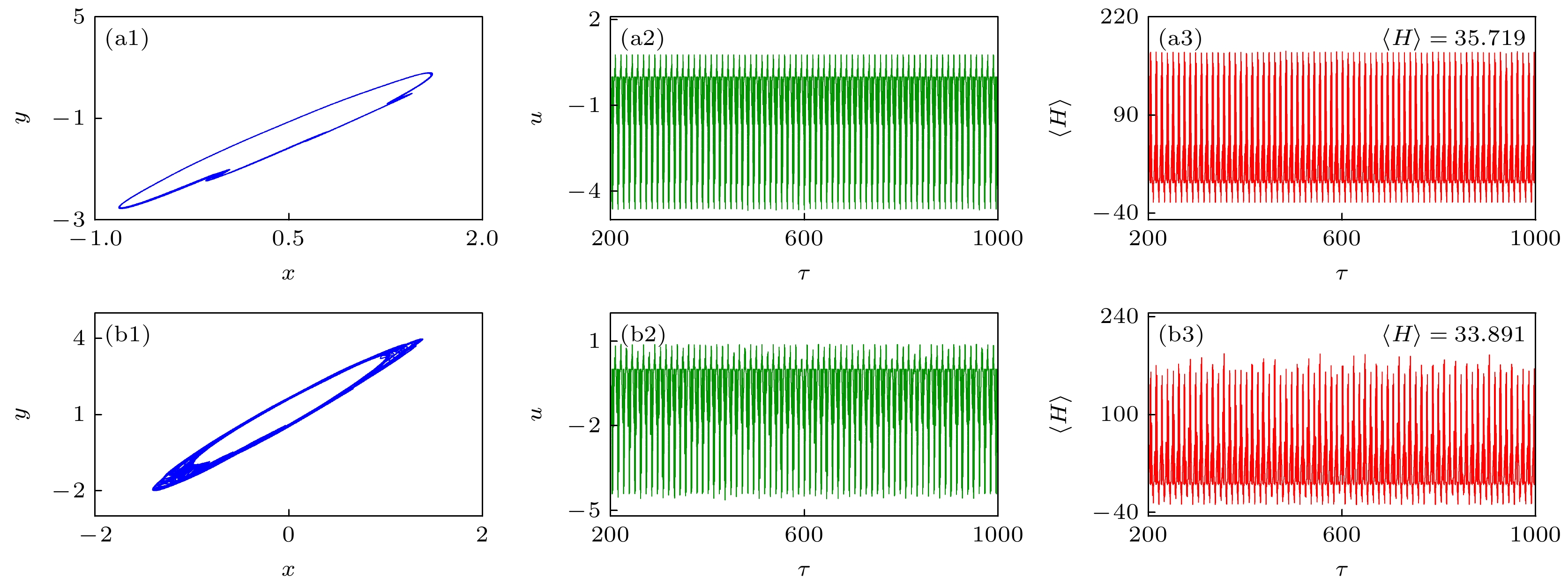

图 9 不同参数b下, 相图、膜电位u和哈密顿能量H的演化图 (a1)—(a3) b = 0.991; (b1)—(b3) b = 0.928
Fig. 9. Phase portraits, time evolution of the membrane potential u, and time evolution of the Hamilton energy H under different parameter b: (a1)–(a3) b = 0.991; (b1)–(b3) b = 0.928.

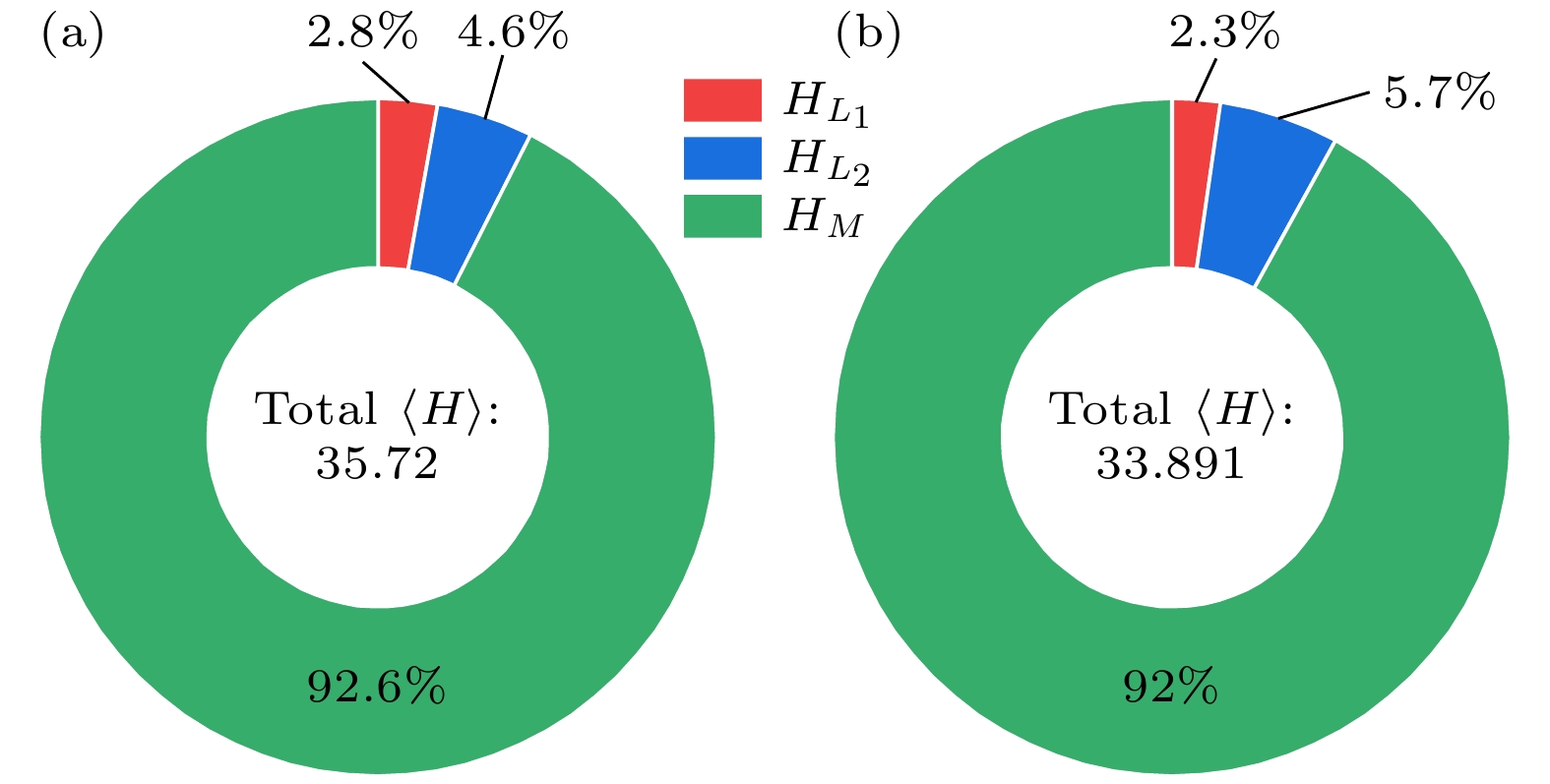

图 10 不同放电模式对应的磁场能量和电场能量占总哈密顿能量的比值 (a) 周期态b = 0.991; (b) 混沌态b = 0.928
Fig. 10. Ratios of magnetic field energy and electric field energy to the total Hamilton energy corresponding to different discharge patterns: (a) Periodic state, b = 0.991; (b) chaotic state, b = 0.928.

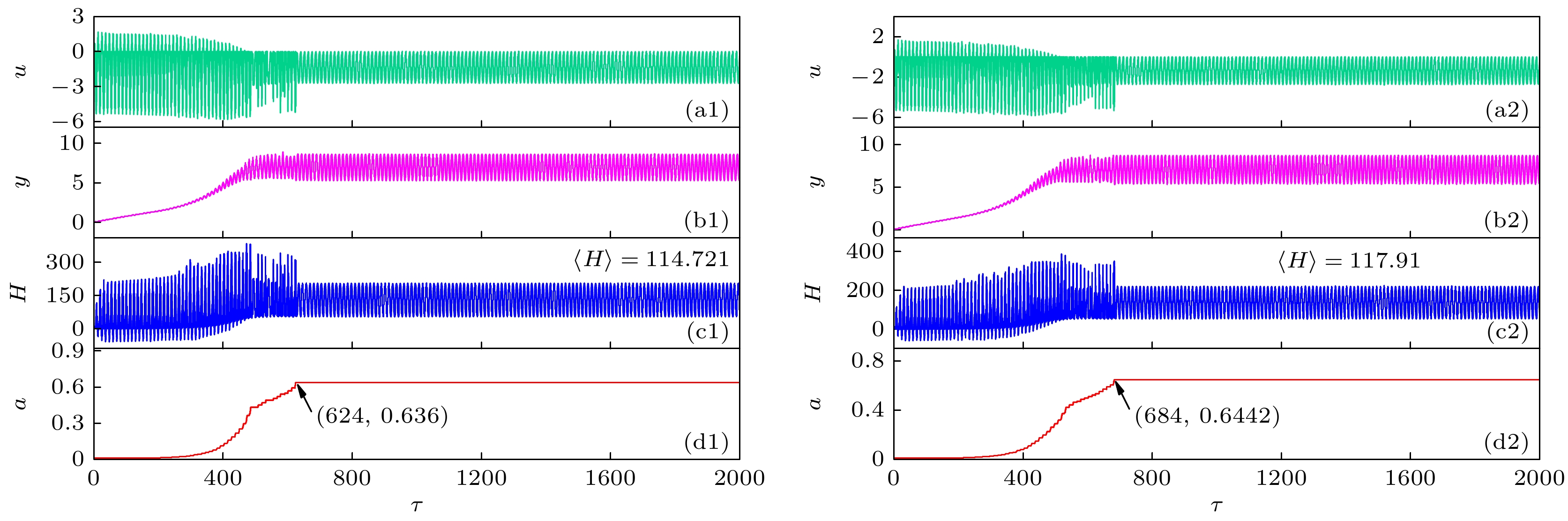

图 11 参数a依据方程(23)的能量自适应调节模式进行演化时, 不同阈值ε下(a1), (a2) u, (b1), (b2) y的时序图; (c1), (c2)哈密顿能量H和(d1), (d2)参数a随时间的演化曲线. 参考实际能量值对ε直接取值(a) ε1 = 262.7, σ1 = 0.1; (b) ε2 = 280.7, σ2 = 0.1. a的初始值ainitial = 0.001
Fig. 11. When parameter a evolves according to the energy adaptive adjustment mode in Eq.(23), time series of (a1), (a2) u and (b1), (b2) y under different thresholds ε; (c1), (c2) the time evolution curves of Hamilton energy H, and (d1), (d2) parameter a. The threshold values ε are directly set with reference to the actual energy values: (a) ε1 = 262.7, σ1 = 0.1; (b) ε2 = 280.7, σ2 = 0.1. ainitial = 0.001 (initial value of parameter a).
图 12 噪声分别作用在不同变量上的变异系数CV和哈密顿能量H随噪声强度D的演化图 (a1), (a2) x; (b1), (b2) y; (c1), (c2) z
Fig. 12. Evolution curves of the coefficient of variation (CV) and Hamilton energy (H) with noise intensity (D) when noise is applied separately to different variables: (a1), (a2) x; (b1), (b2) y; (c1), (c2) z.
图 13 神经元工作过程中分别处于(a) 周期放电b = 0.991和(b) 混沌放电b = 0.928时, 电阻R1, R2和R3对应的能量消耗占比情况; (c) b = 1.72时变量x的峰值xpeak对参数g的分岔图
Fig. 13. Proportion of energy consumption for resistors R1, R2 and R3 during neural operation under (a) periodic firing b = 0.991 and (b) chaotic firing b = 0.928; (c) bifurcation diagram of the peak value xpeak of variable g.
-
