随着ChatGPT等大语言模型的发展, 产业界对硬件的算力、容量和功耗提出了新的需求. 存算一体(compute-in-memory, CIM)技术相较于传统近存计算, 减少了数据搬移, 显著降低功耗. 而在众多存储器中, 3D NAND闪存因其成熟的工艺制造技术和超高容量, 是最有可能实现大模型本地部署的候选方案. 然而, 目前针对3D NAND闪存CIM芯片的研究大多停留在学术研究阶段, 未基于产品级3D NAND闪存芯片进行系统性的CIM架构设计和大模型功能验证. 对此, 本文搭建了基于PyTorch框架的大语言模型仿真器平台来评估系统架构的性能, 并提出了一种基于源线背面切分工艺的通用3D NAND架构. 该架构通过改动3D NAND的源线制造工艺以支持CIM计算, 工艺成本极低, 可供产业界快速迭代, 并完善了相应的映射算法和流水线设计. 最后通过仿真器平台对所提出的架构在电流分布和量化的影响下进行了性能评估, 仿真结果表明所设计的产品级3D NAND芯片可以在GPT-2-124M大模型上做到20 tokens/s的生成速度和5.93 TOPS/W的能效比, 在GPT-2-355M大模型上做到8.5 tokens/s的生成速度和7.17 TOPS/W的能效比.
The rapid advancement of large language models (LLM) such as ChatGPT has imposed unprecedented demands on hardware in terms of computational power, memory capacity, and energy efficiency. Compute-in-memory (CIM) technology, which integrates computing directly into memory arrays, has become a promising solution that can overcome the data movement bottlenecks of traditional von Neumann architectures, significantly reduce power consumption and achieve large-scale parallel processing. Among various non-volatile memory candidates, 3D NAND flash stands out due to its mature manufacturing process, ultrahigh density, and cost-effectiveness, making it a strong contender for commercial CIM deployment and local inference of large models. Despite these advantages, most of existing researches on 3D NAND-based CIM remain at an academic level, focusing on theoretical designs or small-scale prototypes, with little attention paid to system-level architecture design and functional validation using product-grade 3D NAND chips for LLM applications. To address this gap, we propose a novel CIM architecture based on 3D NAND flash, which utilizes a source line (SL) slicing technique to partition the array and perform parallel computation at minimal manufacturing cost. This architecture is complemented by an efficient mapping algorithm and pipelined dataflow, enabling system-level simulation and rapid industrial iteration. We develop a PyTorch-based behavioral simulator for LLM inference on the proposed hardware, evaluating the influences of current distribution and quantization on system performance. Our design supports INT4/INT8 quantization and employs dynamic weight storage logic to minimize voltage switching overhead, and is further optimized through hierarchical pipelining to maximize throughput under hardware constraints. Simulation results show that our simulation-grade 3D NAND compute-in-memory chip reaches generation speeds of 20 tokens/s with an energy efficiency of 5.93 TOPS/W on GPT-2-124M and 8.5 tokens/s with 7.17 TOPS/W on GPT-2-355M, respectively, while maintaining system-level reliability for open-state current distributions with σ < 2.5 nA; in INT8 mode, quantization error is the dominant accuracy bottleneck. Compared with previous CIM solutions, our architecture supports larger model loads, higher computational precision, and significantly reduced power consumption, as evidenced by comprehensive benchmarking. The SL slicing technique keeps array wastage below 3%, while hybrid wafer-bonding integrates high-density ADC/TIA circuits to improve hardware resource utilization. This work represents the first system-level simulation of LLM inference on product-grade 3D NAND CIM hardware, providing a standardized and scalable reference for future commercialization. The complete simulation framework is released on GitHub to facilitate further research and development. Future work will focus on device-level optimization of 3D NAND and iterative improvements of the simulator algorithm. -
Keywords:
- 3D NAND /
- compute-in-memory /
- hardware acceleration
-
图 1 GPT-2-124M 模型算法示意图 (a) GPT-2-124M 整体算法流程; (b) 掩码多头注意力计 算流程; (c) 前向全连接层计算流程
Fig. 1. Schematic diagram of the GPT-2-124M model algorithm: (a) Overall algorithm flow of GPT-2-124M; (b) masked multi-head attention computation flow; (c) forward fully connected layer computation flow

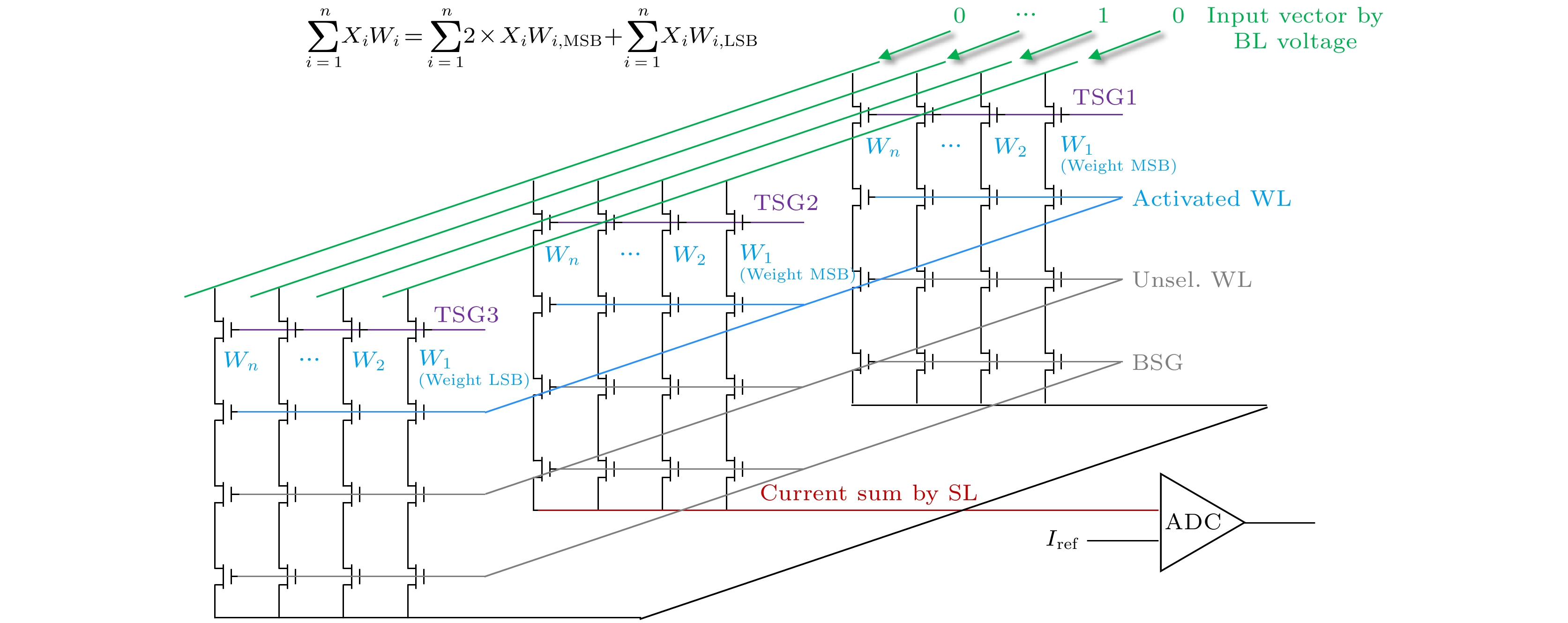

图 2 3D NAND闪存的向量矩阵乘法操作及其电路示意图
Fig. 2. Vector-matrix multiplication operation and its circuit schematic of 3D NAND flash memory.

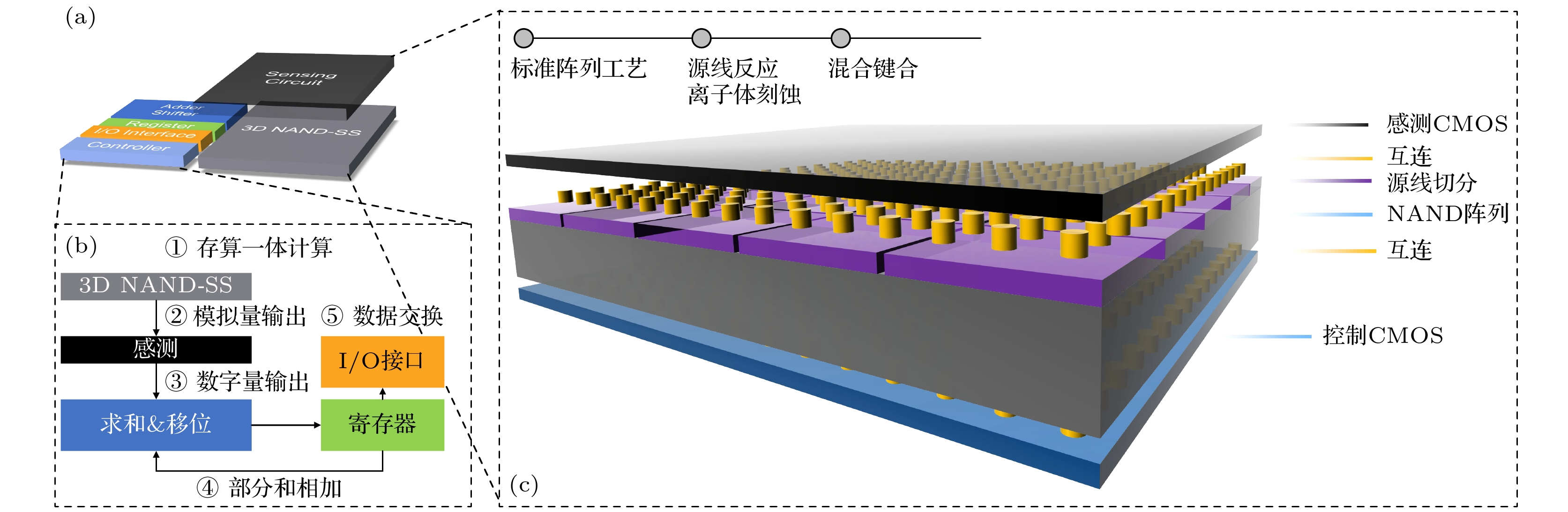

图 3 3D NAND-SS架构完整示意图 (a) 系统架构示意图; (b) 控制器数据指令流; (c) 3D NAND-SS阵列示意图
Fig. 3. The 3D NAND-SS architecture: (a) System architecture diagram; (b) controller data and instruction flow; (c) 3D NAND-SS array diagram.

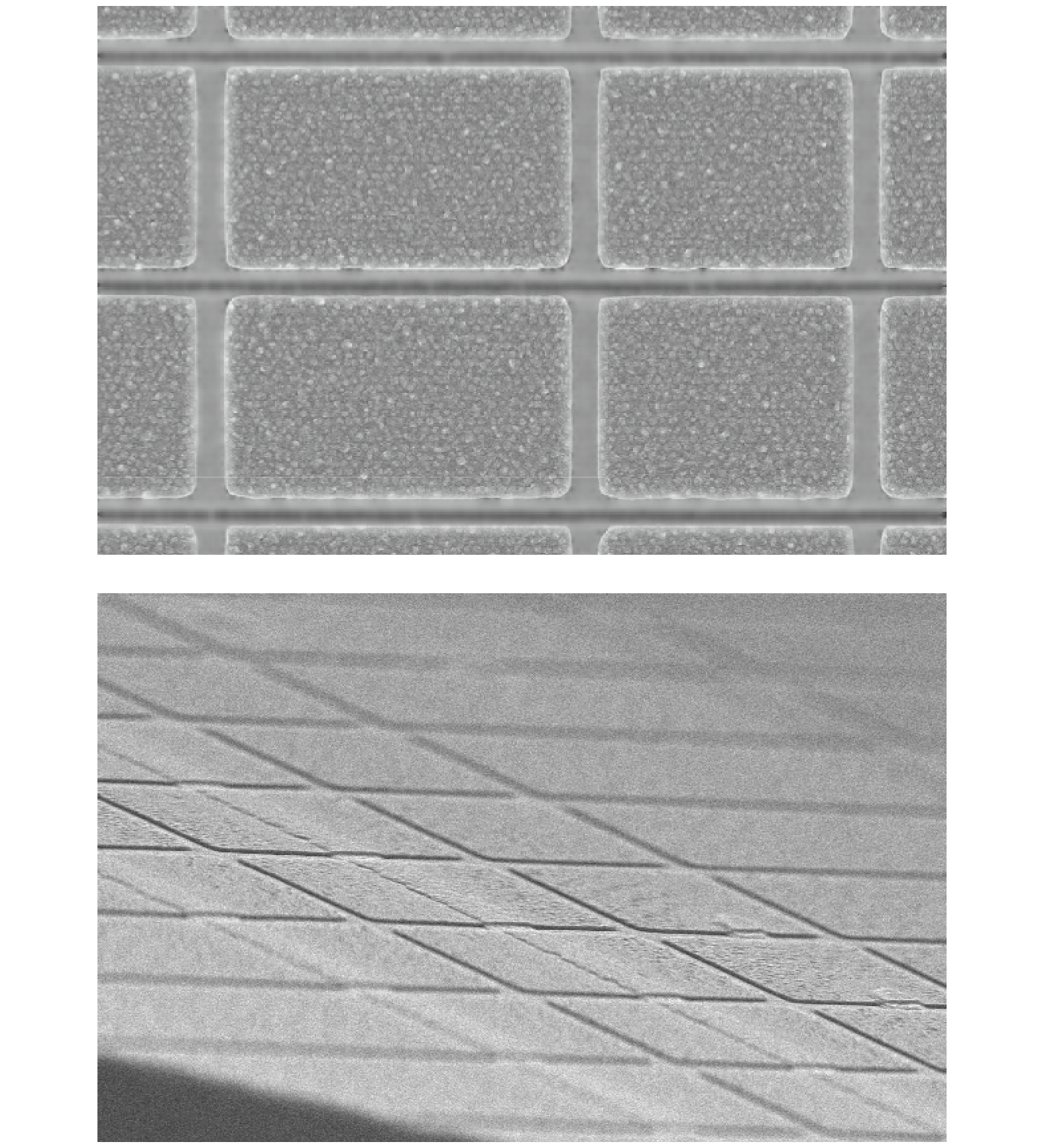

图 4 单个Block的源线N型多晶硅区域经切分后形成的SL分区俯视图/斜视图
Fig. 4. Top and oblique views of the SL partitions formed by segmenting the source-line N-type polysilicon region in a single block.

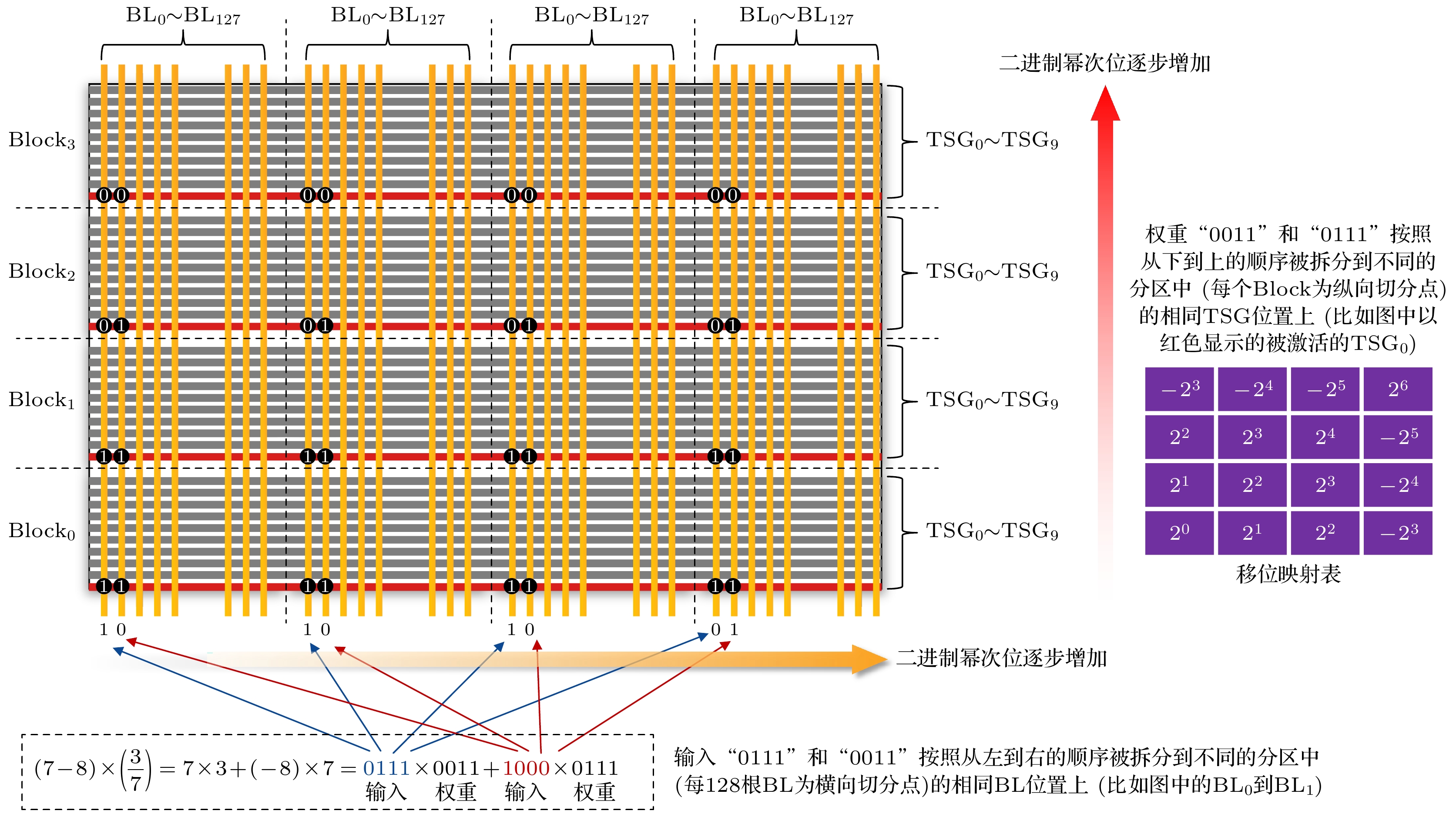

图 5 3D NAND-SS 输入和权重映射方案, 输入和权重均被量化成多个1 bit数据沿着横纵两个方向排布
Fig. 5. The 3D NAND-SS input and weight mapping scheme: Both inputs and weights are quantized into multiple 1-bit data arranged in horizontal and vertical directions.

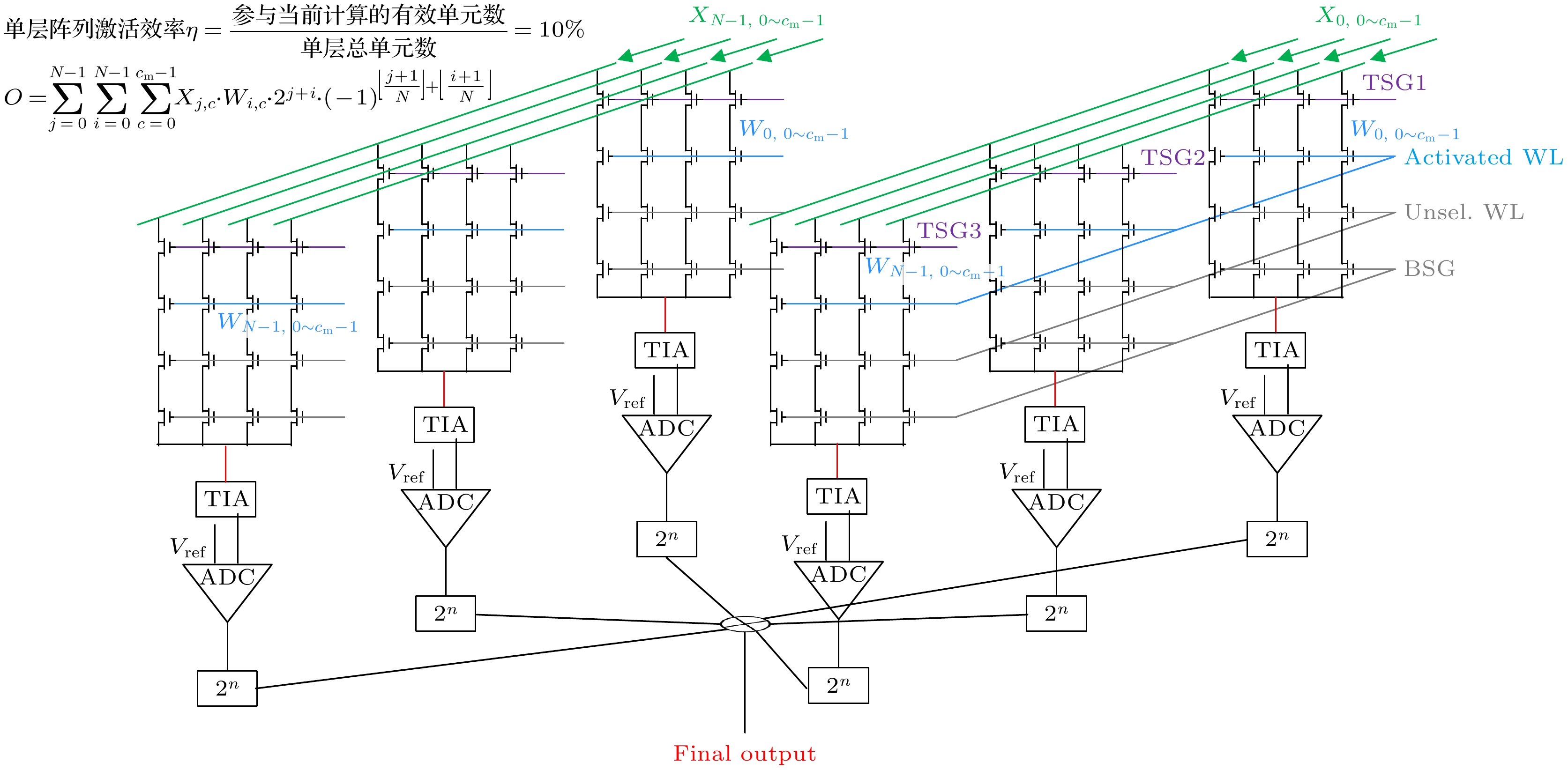

图 6 3D NAND-SS 计算过程阵列示意图
Fig. 6. 3D NAND-SS computational process array schematic diagram.

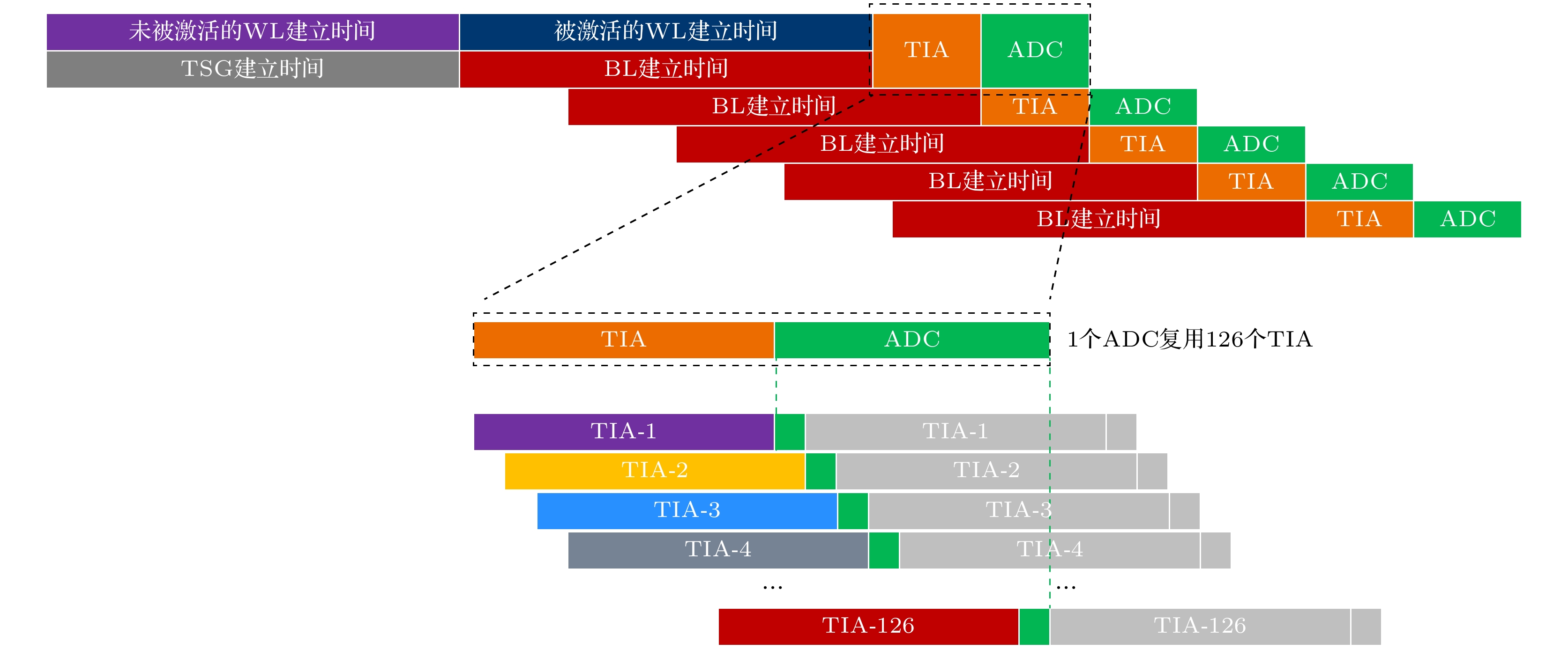

图 7 3D NAND-SS计算流水线设计, 处理多TIA复用ADC的情况
Fig. 7. The 3D NAND-SS array computation pipeline design for handling multiple TIA multiplexed ADCs.

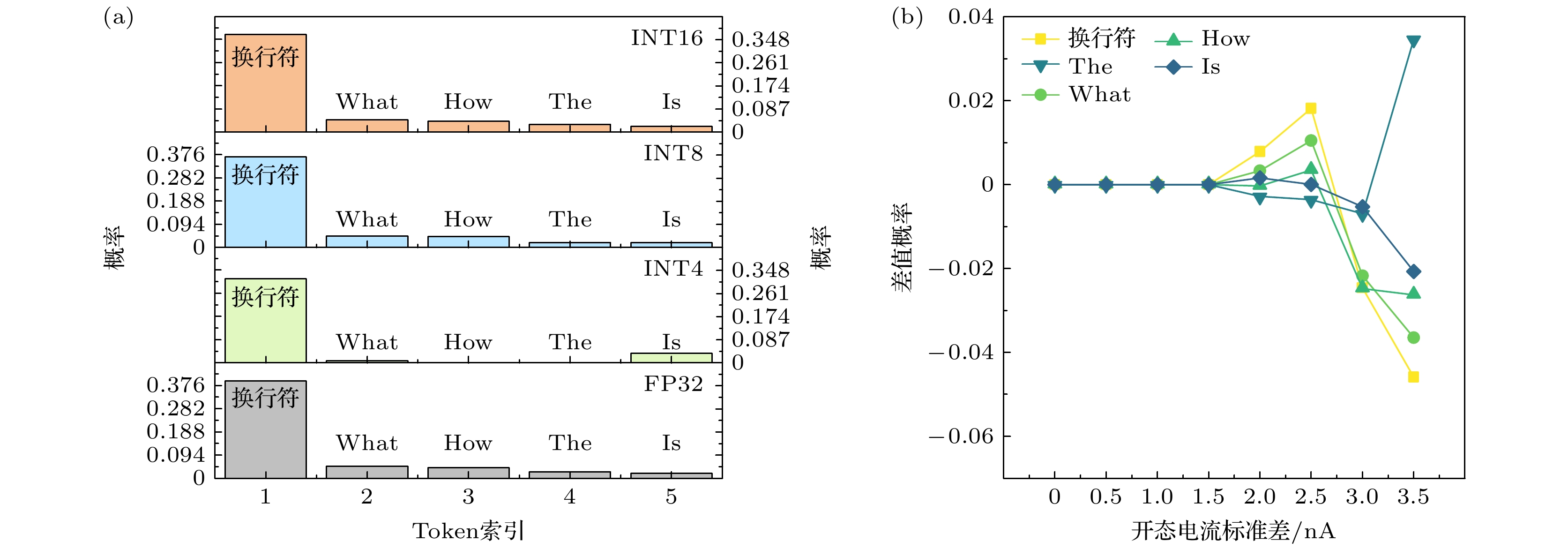

图 8 (a) 不同量化数下模型token概率(提示词: “How is the weather today?”); (b) 不同开态电流分布下GPT-2-124M模型输出差值概率分布
Fig. 8. (a) Token probabilities of the model under different quantization bit widths (prompt: “How is the weather today?”); (b) output probability distribution of the GPT-2-124M model under different open-state current distributions.

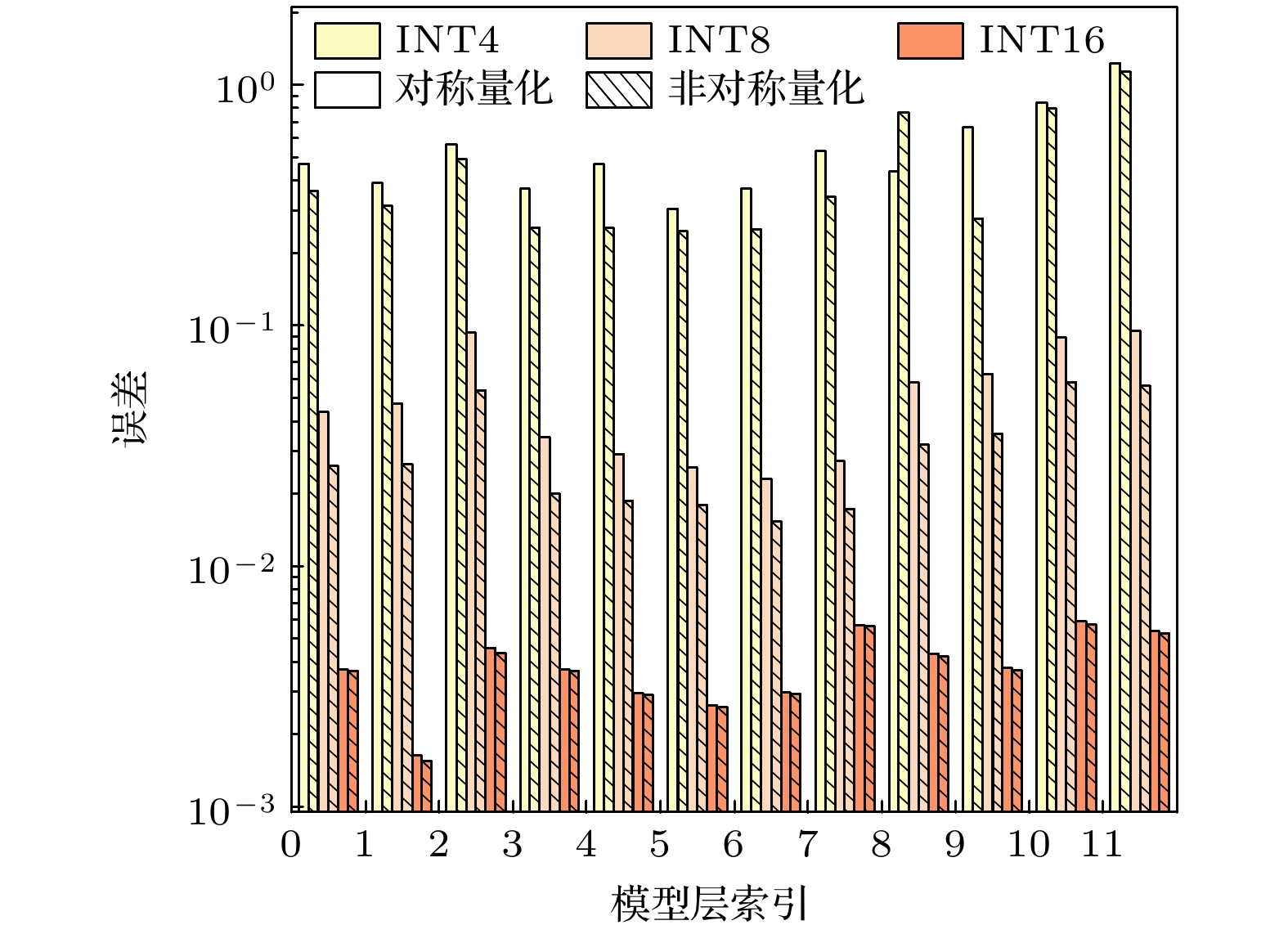

图 9 采用非对称量化和对称量化下的多层感知机下投影层计算误差对比图
Fig. 9. Comparison of computation errors in the MLP down-projection layer under asymmetric and symmetric quantization.

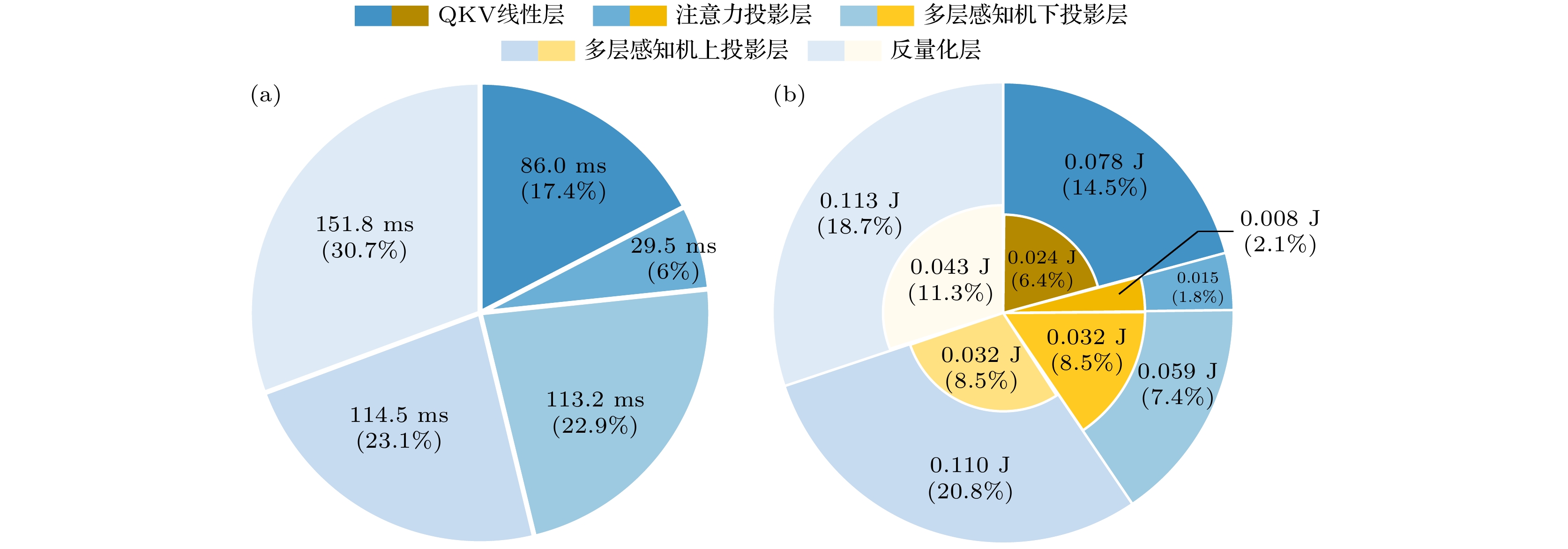

图 10 (a) The 3D NAND-SS架构生成10 Tokens的时间组成; (b) 3D NAND-SS架构生成10 Tokens的功耗组成
Fig. 10. (a) Time composition for generating 10 Tokens in the 3D NAND-SS architecture; (b) power composition for generating 10 Tokens in the 3D NAND-SS architecture.
表 1 仿真平台部分参数表
Table 1. Partial parameter table of the simulation platform.
参数名 功能 参数名 功能 Quantization bits 量化数 Block setup time 时间常数 Current mean /Scale 器件开态电流分布均值/标准差 WL switch time 时间常数 Blocks/Operation 单次计算操作的Block数量 TSG switch time 时间常数 Max current sum 单次计算求和的电流数 BL switch time 时间常数 Symmetric mode 是否采用对称量化 TIA conversion time 时间常数 ADC multiplexing factor ADC复用数 ADC conversion time 时间常数 X path current 横向通道电流 Planes/Die 硬件常数 Y Path current 纵向通道电流 Layers/Die 硬件常数 Ve 电压 Blocks/Plane 硬件常数 Background current 背景电流 TSGs/Block 硬件常数 Num of TIAs TIA数量 Bit lines/Plane 硬件常数
下载: 导出CSV
表 2 3D NAND-SS 硬件参数
Table 2. 3D NAND-SS hardware configuration.
硬件参数名 值 硬件参数名 值 Plane数每芯片 4 Layer数每芯片 32 Block数每Plane 216 纵向切分数 216 TSG数每Block 10 横向切分数 1024 BL数每Plane 131072 ADC最大分辨率 128 *缩减层数用于简化仿真, 实际产品为128层
下载: 导出CSV
表 3 GPT-2-124M模型参数
Table 3. GPT-2-124M model parameters.
模型层名 计算硬件 参数形状 参数量(INT8) 嵌入层 CPU/GPU (50256, 768) — QKV投影层 3D NAND-SS (768, 2304) 13.5 MB 注意力矩阵
计算CPU/GPU (序列长度, 768) — 注意力矩阵
投影3D NAND-SS (768, 768) 4.5 MB 多层感知机
上投影层3D NAND-SS (768, 3072) 18 MB 激活函数 CPU/GPU — — 多层感知机
下投影层3D NAND-SS (3072, 768) 18 MB 多层感知机
反量化层3D NAND-SS (3072, 768) 18 MB 归一化 CPU/GPU — — 残差连接 CPU/GPU — — 模型头 CPU/GPU (768, 50256) — 注: 仅显示单个注意力模块的参数数量. 在实际算法中, 注意力模块通常是多层的. 对于GPT-2-124M模型, 注意力模块有12层.
下载: 导出CSV
表 4 3D NAND-SS计算时间仿真参数
Table 4. Simulation parameters for 3D NAND-SS computation time.
参数名 值 参数名 值 Block 建立时间/μs 7${b_{{\text{num}}}}$ X通路电流/mA 96.732 BL切换时间/μs 13 Y通路电流/nA 150 WL切换时间/μs 2 Vcc/V 2.5 TSG切换时间/μs 0.8 ADC+TIA功率/mW 0.5 TIA 转换时间/μs 0.25 — — ADC转换时间/μs 0.002 — — 注: X通路电流指在单个Plane中建立一个Block的所有WL电压所需时间内的平均电流; Y通路电流指在单个Plane中建立一个BL所需时间的平均电流.
下载: 导出CSV
-
