稀土离子掺杂荧光粉在照明、显示、防伪和光学测温等领域具有广阔的应用前景. 本文采用高温固相法制备了Ca7NaY(PO4)6: xDy3+ (x = 0.01—0.11)系列荧光粉. 通过X射线衍射和扫描电子显微镜对样品的晶体结构和微观形貌进行了表征, 并采用荧光光谱和荧光寿命衰减曲线对其发光特性和能量传递机制进行了系统研究. 在350 nm近紫外光激发下, 样品的发光强度随Dy3+掺杂浓度增加呈现先递增后递减的变化趋势, 在x = 0.07时达到最大值. Dy3+浓度增加导致非辐射跃迁增强, 荧光寿命逐渐降低. Ca7NaY(PO4)6: 0.07Dy3+在150 ℃高温下发光强度仍为室温时的86.9%, 展现出优异的热稳定性. 利用最佳样品与近紫外LED芯片封装所得白光LED器件性能优良, 其相关色温为5680 K, 色坐标位于(0.3275, 0.3883). 此外, 基于荧光强度比技术的温度传感特性研究表明, 该材料具备良好的光学测温潜力, 最大相对灵敏度达到1.72%/K. 结果表明, Ca7NaY(PO4)6: Dy3+荧光粉在固态照明及光学温度传感领域具有潜在的应用价值.Rare earth-activated phosphors have shown great potential applications in various fields, such as lighting, displays, anti-counterfeiting, and optical thermometry. This study aims to synthesize a series of Dy3+-doped Ca7NaY(PO4)6 phosphors through high-temperature solid-state reaction, focusing on developing multifunctional optical materials for lighting and temperature sensing. The phase purity and morphological characteristics of the obtained samples are confirmed by X-ray diffraction and scanning electron microscopy. Luminescence properties and energy transfer mechanisms are systematically investigated through photoluminescence spectroscopy and fluorescence decay analysis. Under 350-nm near-ultraviolet excitation, the emission intensity of Ca7NaY(PO4)6: Dy3+ increases with Dy3+ concentration rising until reaching an optimal value at x = 0.07, beyond which concentration quenching occurs. This quenching behavior is attributed to enhanced non-radiative energy transfer at higher Dy3+ concentrations, leading to a corresponding decrease in fluorescence lifetime. The optimized Ca7NaY(PO4)6: 0.07Dy3+ phosphor displays remarkable thermal stability, retaining 86.9% of its initial emission intensity at 150 ℃. The white light emitting diode(LED) device fabricated using the obtained phosphor and near-UV LED chip shows excellent performance with a correlated color temperature of 5680 K, CIE coordinates of (0.3275, 0.3883) in the white light region and a color rendering index of 85. Furthermore, temperature-dependent fluorescence intensity ratio analysis reveals excellent optical thermometric performance, achieving a maximum relative sensitivity (Sr) of 1.72 %/K. These results indicate that the Ca7NaY(PO4)6: Dy3+ phosphor exhibits significant potential applications in single-matrix phosphor-converted white LEDs and high-precision optical optical thermometry.
-
Keywords:
- Dy3+ /
- phosphor /
- light emitting diodes /
- optical temperature sensing
-

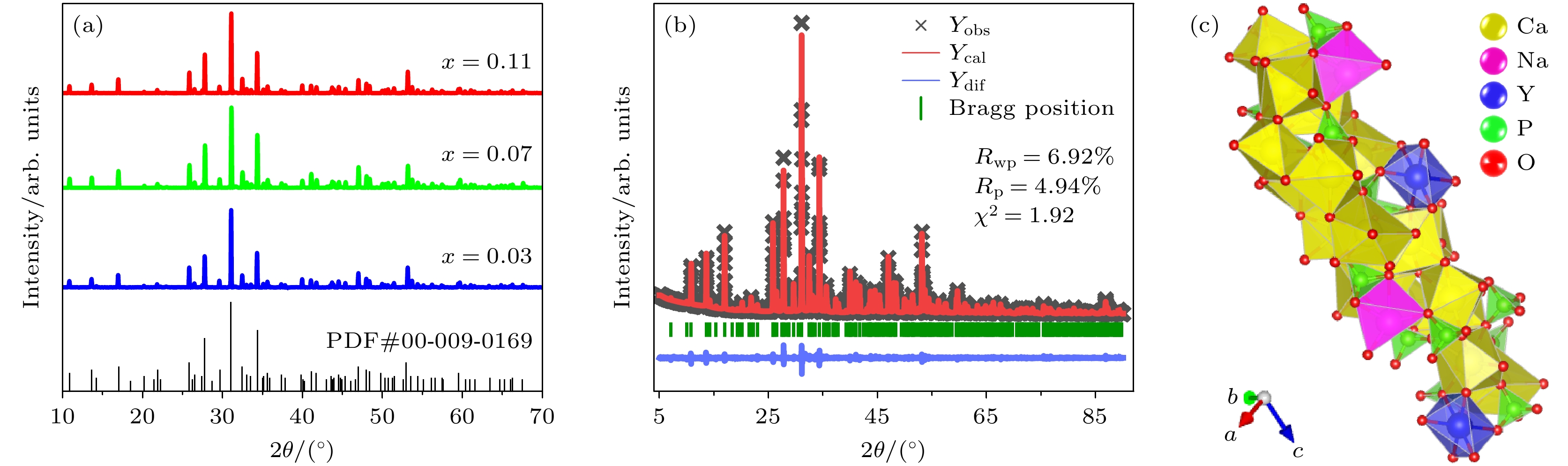

图 1 (a) CNYP: xDy3+ (x = 0.03, 0.07, 0.11)的XRD图样与标准卡对比图; (b) CNYP: 0.07 Dy3+的精修图谱; (c) 晶体结构图
Fig. 1. (a) XRD pattern of CNYP: xDy3+ (x = 0.03, 0.07, 0.11) compared with standard card; (b) Rietveld refinement of CNYP: 0.07 Dy3+; (c) crystal structure of host.
图 2 CNYP: 0.07 Dy3+的形态分析 (a)—(f)元素分布图; (g), (h) SEM图; (i) EDS光谱
Fig. 2. Morphology analysis of CNYP: 0.07 Dy3+: (a)–(f) Elemental distribution map; (g), (h) SEM images; (i) EDS spectrum.

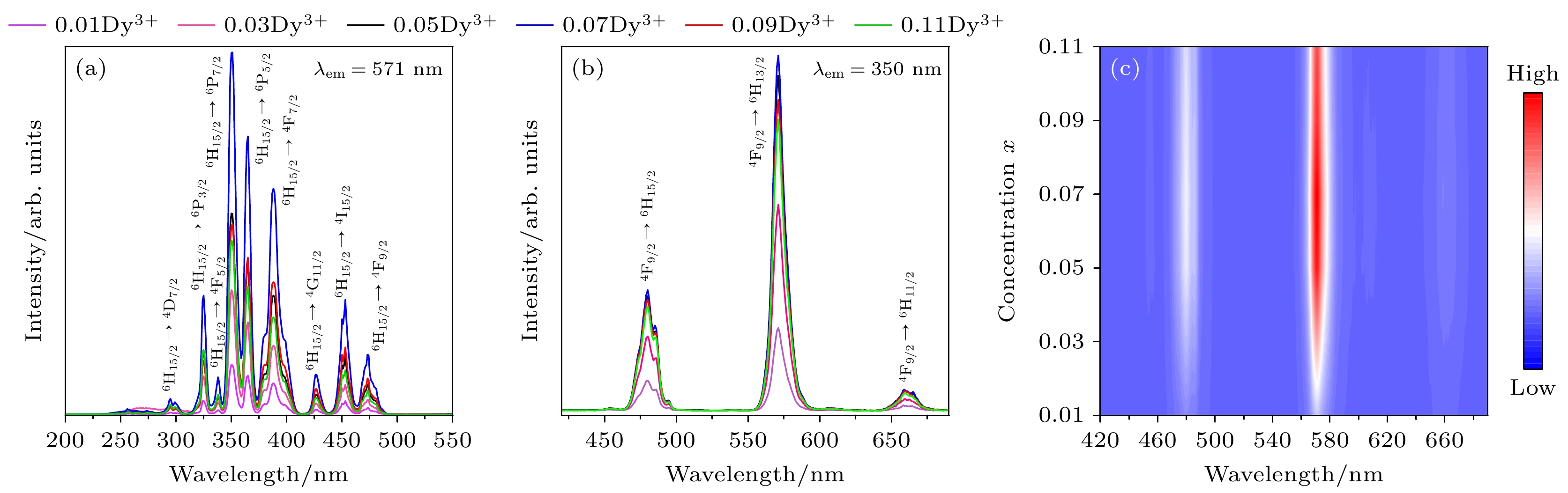

图 3 CNYP: xDy3+ (x = 0.01—0.11)样品的荧光光谱 (a) 激发光谱; (b) 发射光谱; (c) 发射光谱对应的等高线图
Fig. 3. Fluorescence spectra of CNYO: xDy3+ (x = 0.01–0.11) samples: (a) Excitation spectra; (b) emission spectra; (c) contour plot corresponding to the emission spectra.

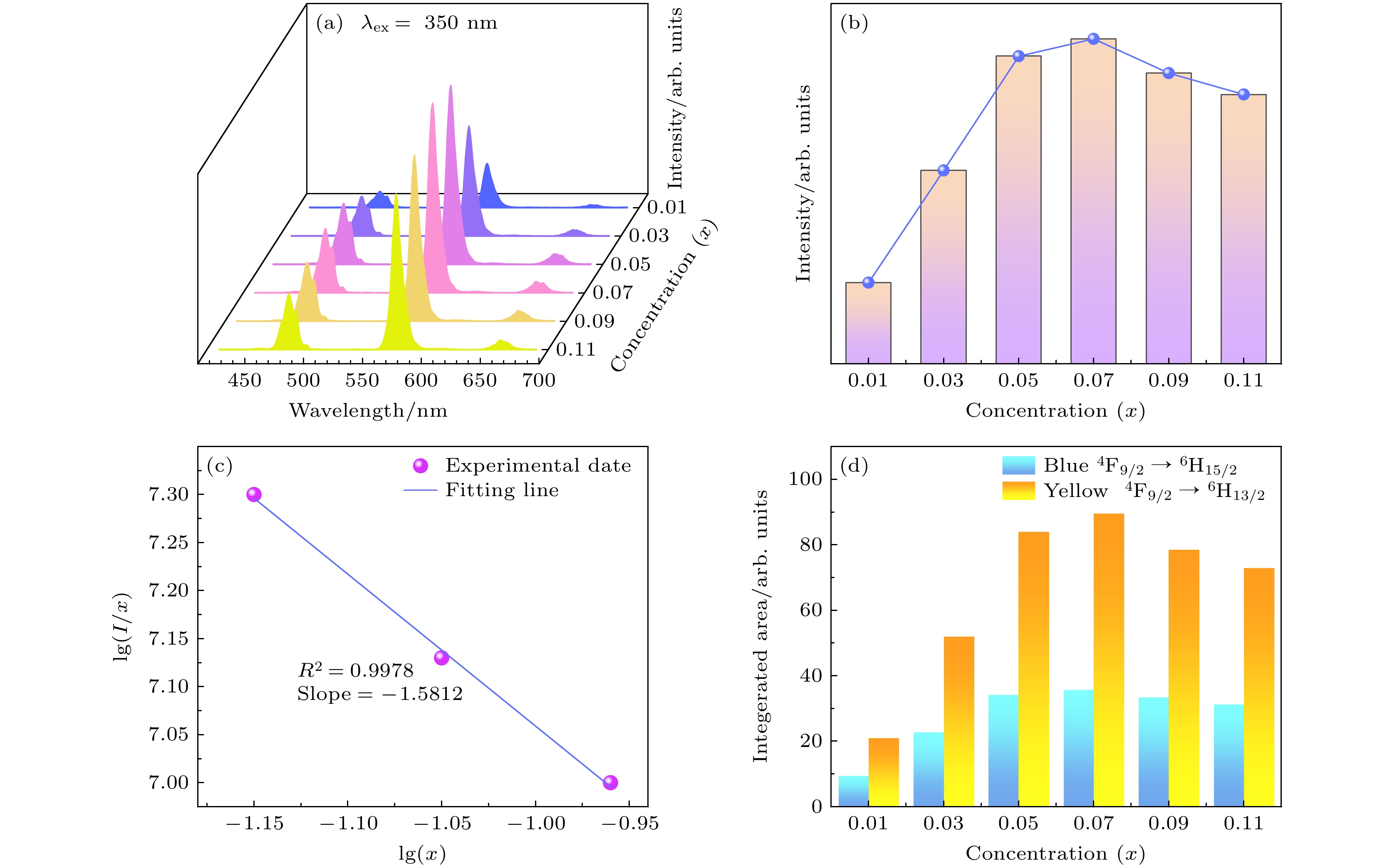

图 4 (a) CNYP: xDy3+ (x = 0.01—0.11)的三维发射光谱(λex = 350 nm); (b) 积分发射强度与Dy3+浓度柱状图; (c) lg(I/x)与lg(x)的线性拟合关系图; (d) 480 nm与571 nm处的相对发光强度
Fig. 4. (a) Photoluminescence emission spectra of CNYP: xDy3+ (x = 0.01–0.11) (λex = 350 nm); (b) the histogram between integrated emission intensity and Dy3+ concentration; (c) linear fitting diagram of lg(I/x) and lg(x); (d) relative luminescence intensity at 480 nm and 571 nm.

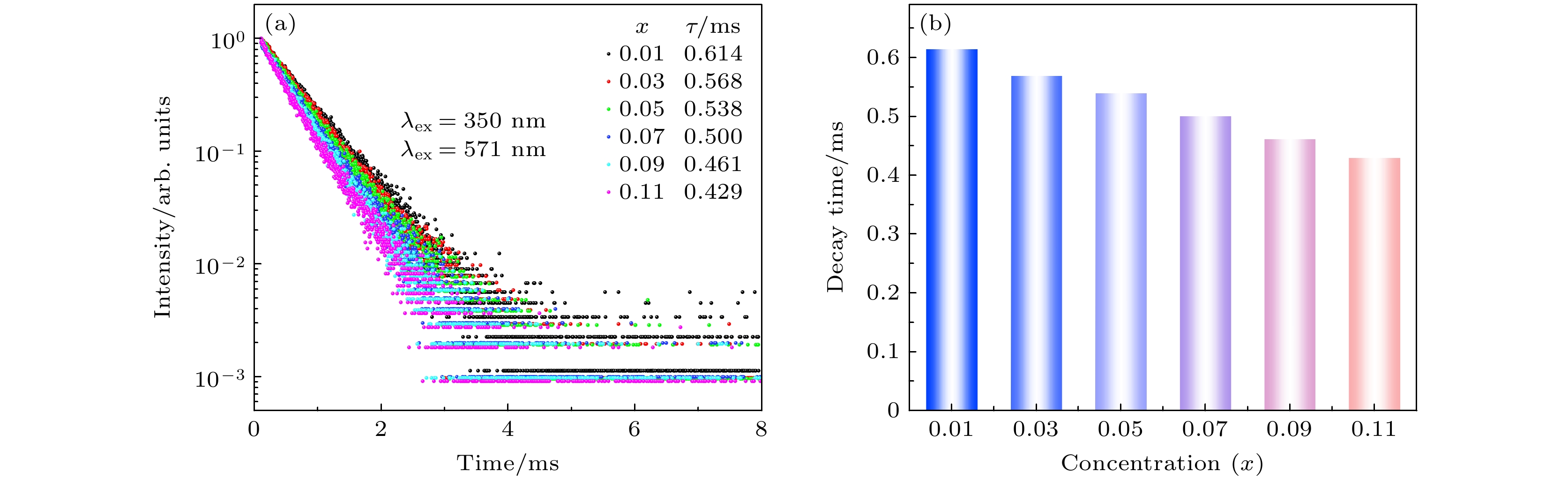

图 5 (a) CNYP: xDy3+ (x = 0.01—0.11)荧光衰减曲线; (b) 荧光寿命与Dy3+掺杂浓度的关系
Fig. 5. (a) Lifetime decay curves of CNYP: xDy3+ (x = 0.01–0.11); (b) dependence of the lifetime on the Dy3+ concentration.

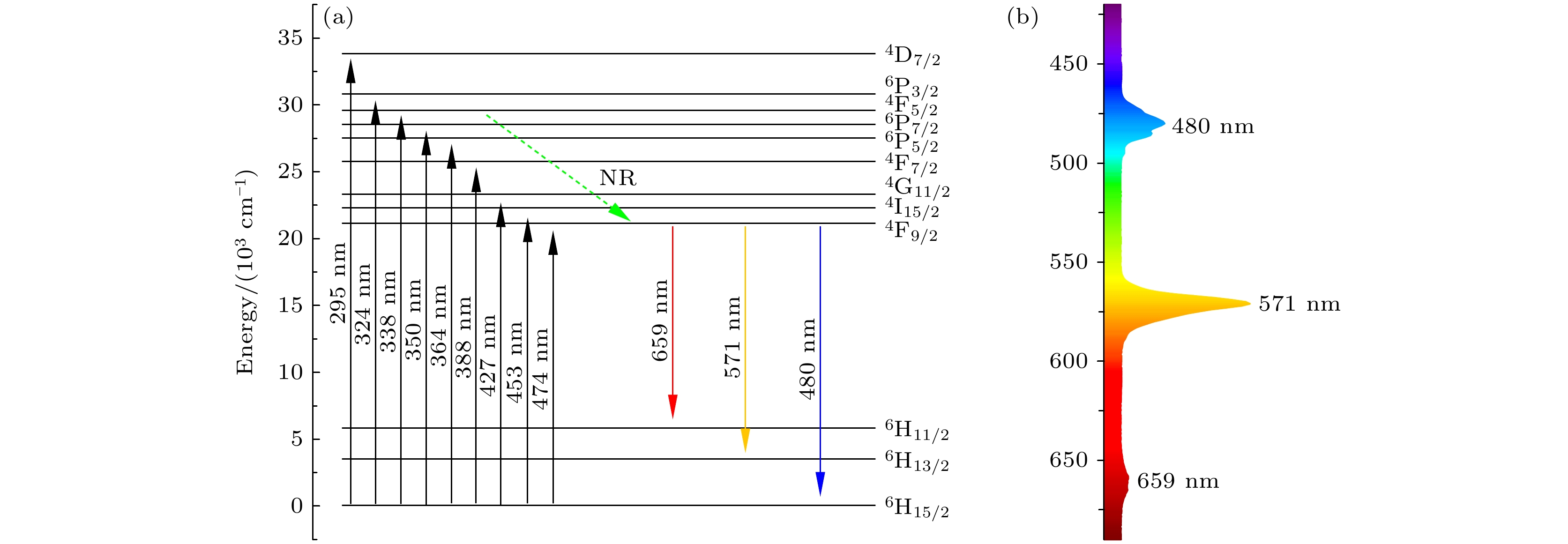

图 6 (a) Dy3+的能级跃迁图; (b) 彩色光谱图
Fig. 6. (a) Energy level diagram of Dy3+; (b) color spectrum diagram.

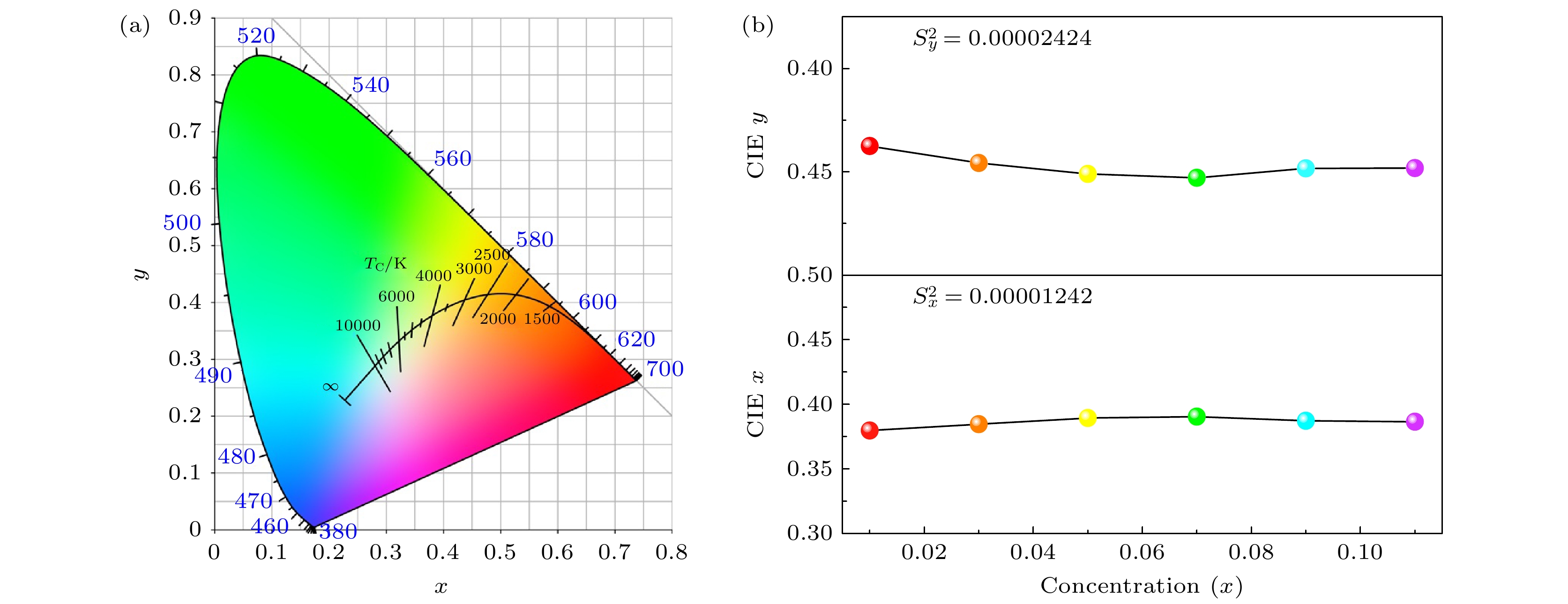

图 7 (a) CNYP: xDy3+ (x = 0.01—0.11)的CIE坐标; (b) 不同浓度样品的色度坐标值
Fig. 7. (a) CIE coordinates of CNYP: xDy3+ (x = 0.01–0.11); (b) colorimetric coordinate values of different concentrations.

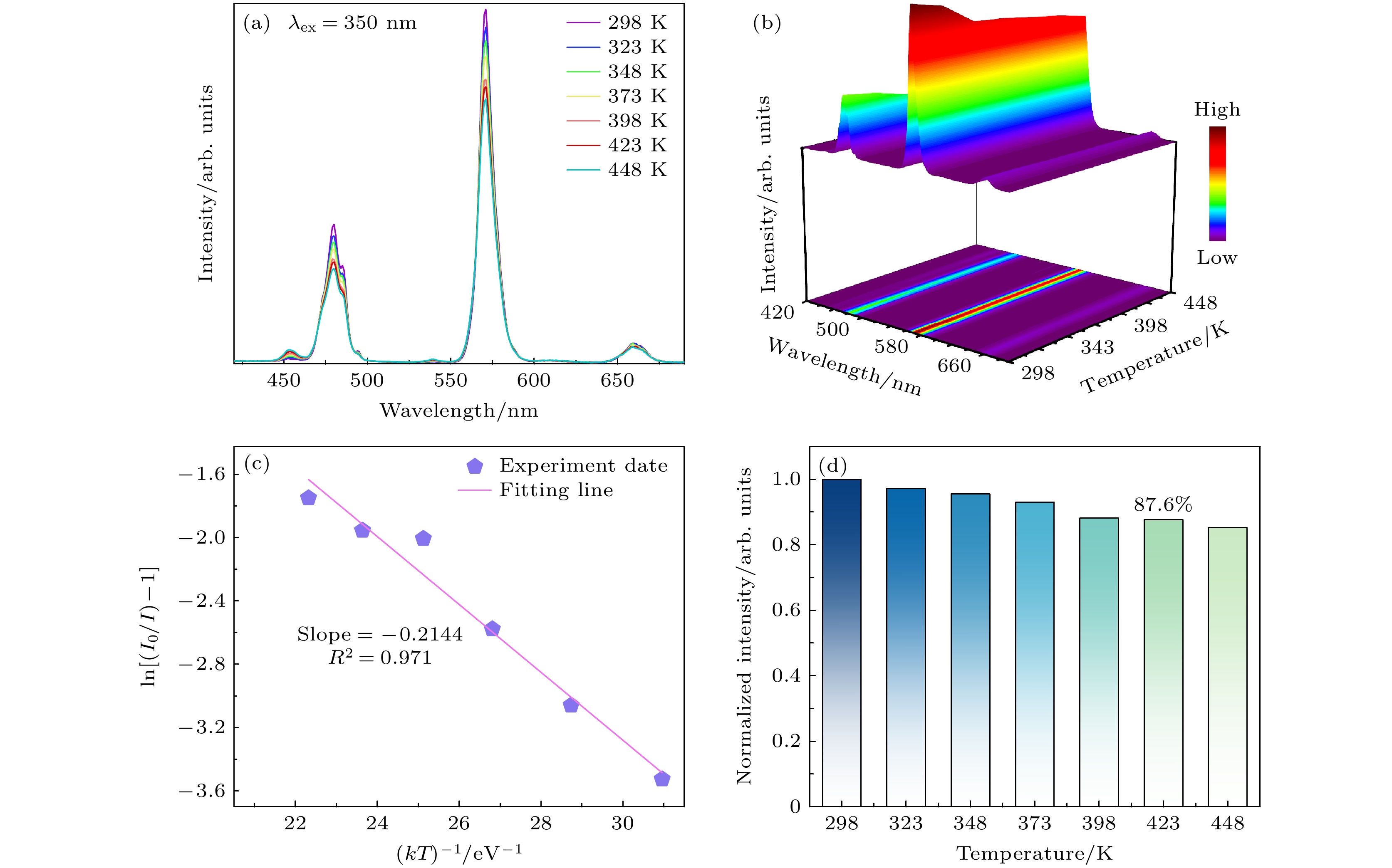

图 8 (a) CNYP: 0.07 Dy3+荧光粉在不同温度下的发射光谱; (b) 荧光强度3D图; (c) ln[(I0/I) – 1]与1/(kT)线性拟合关系; (d) 归一化发光强度随温度变化柱状图
Fig. 8. (a) Emission spectra of CNYP: 0.07 Dy3+ phosphors at different temperatures; (b) 3D graph of fluorescence intensity; (c) the linear fitting relationship between ln[(I0/I) – 1] and 1/(kT); (d) bar chart of normalized luminous intensity varying with temperatures.

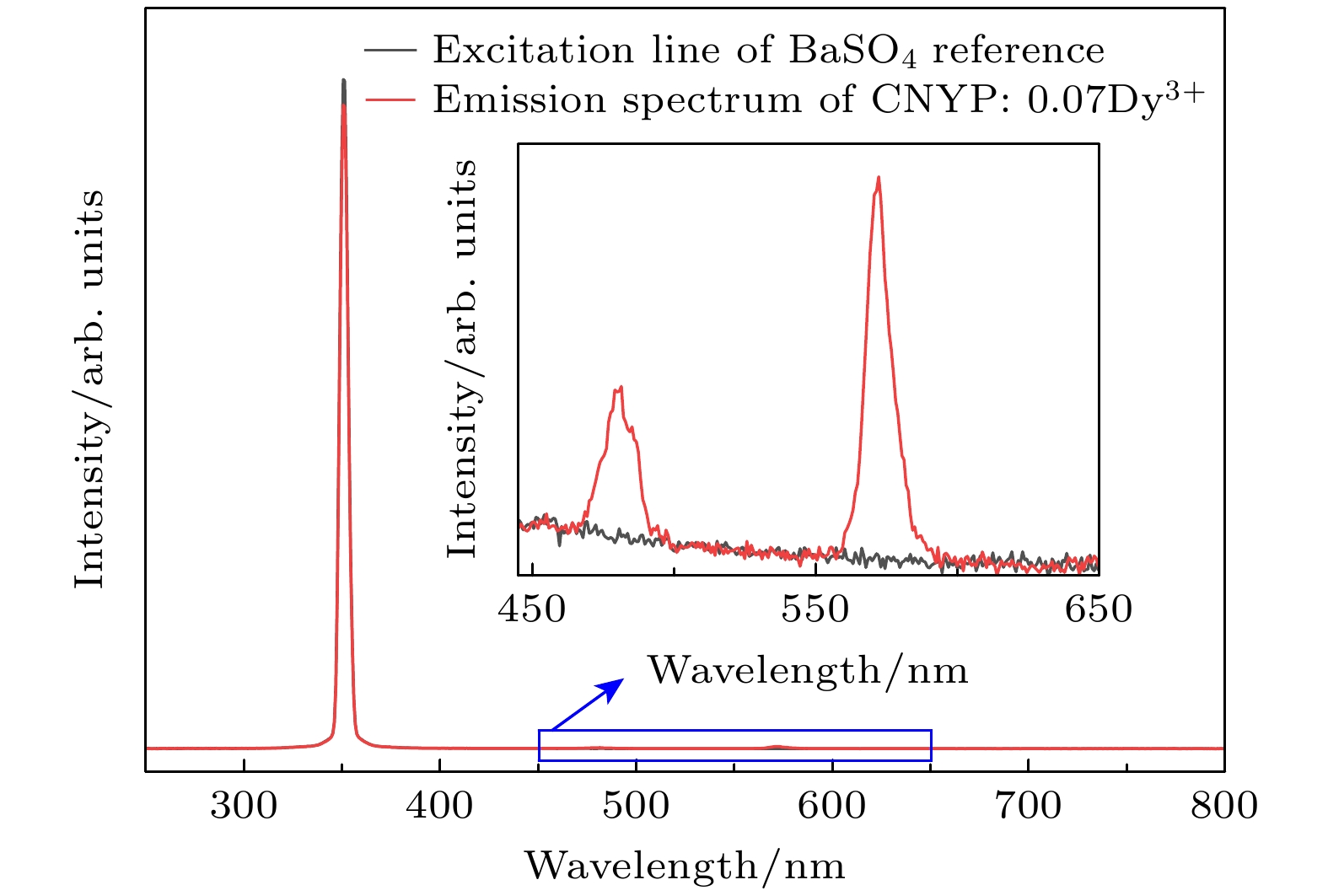

图 9 CNYP: 0.07 Dy3+的量子效率, 插图为部分放大图
Fig. 9. Quantum efficiency of CNYP: 0.07 Dy3+, the illustration is a partial enlarged graph.
图 10 采用365 nm芯片和CNYP: 0.07 Dy3+荧光粉封装的W-LED器件
Fig. 10. W-LED device encapsulated with 365 nm chip and CNYP: 0.07 Dy3+ phosphor.

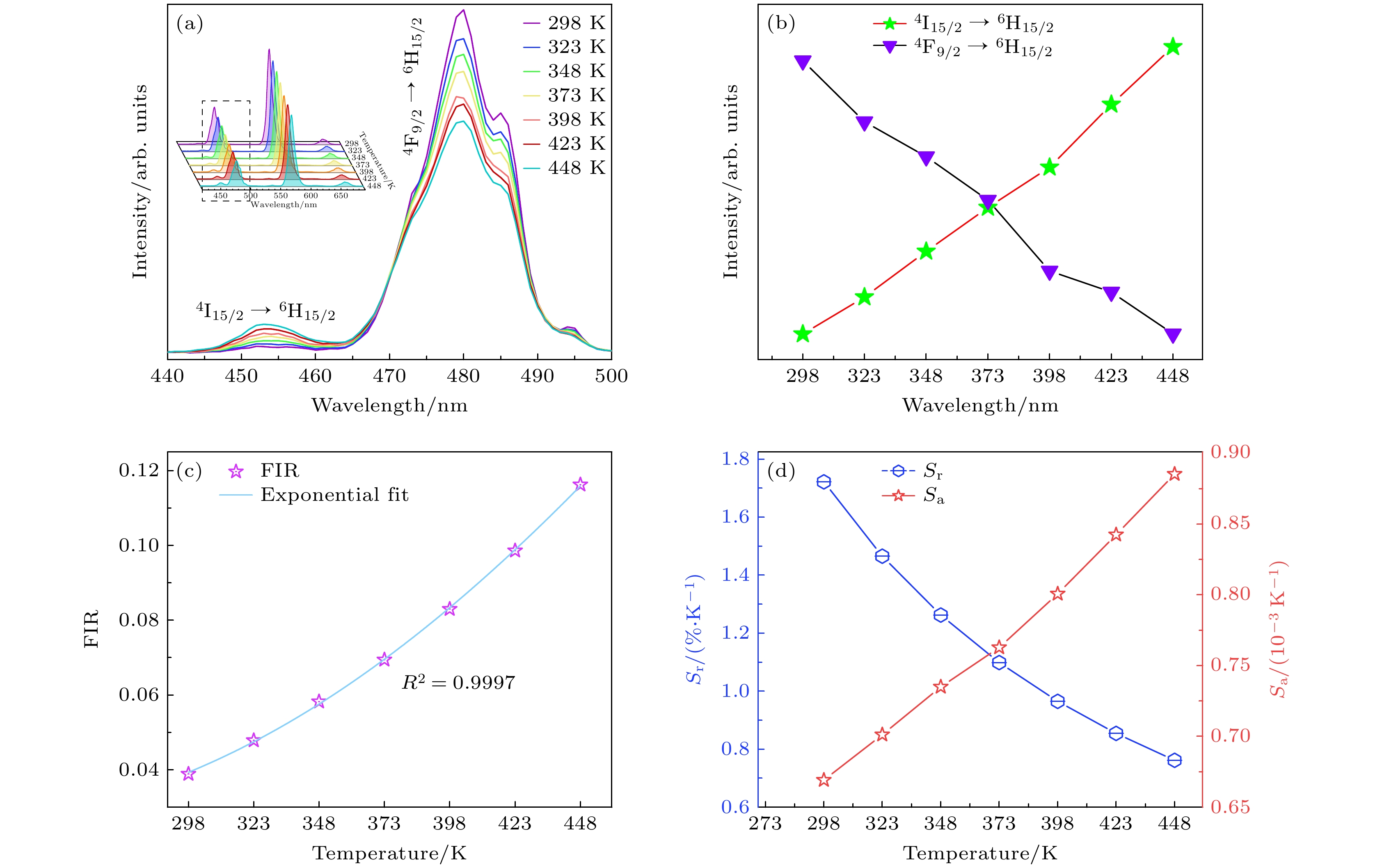

图 11 (a) CNYP: 0.07 Dy3+荧光粉在440—500 nm波段的发射光谱图 (298—448 K); (b) 452 nm (4I15/2→6H15/2)和480 nm (4F9/2→6H15/2)积分发射强度随温度变化关系; (c) 荧光强度比随温度变化关系; (d) 绝对灵敏度和相对灵敏度随温度变化关系
Fig. 11. (a) Emission spectra of the CNYP: 0.07 Dy3+ phosphor in the wavelength range of 440–500 nm at different temperatures (298–448 K); (b) the luminous intensity changes of the 4I15/2→6H15/2 and 4F9/2→6H15/2; (c) fluorescence intensity ratio as a function of temperatures; (d) absolute sensitivity and relative sensitivity as a function of temperatures.
表 1 CNYP: xDy3+的色度坐标和CCT色温
Table 1. CNYP(Zhao, Lu et al. 2025): xDy3+ chromaticity coordinates and CCT color temperature.
No. Concentration x y CCT/K 1 0.01 0.3897 0.4375 4219 2 0.03 0.3846 0.4457 4130 3 0.05 0.3894 0.4510 4033 4 0.07 0.3905 0.4529 4015 5 0.09 0.3872 0.4483 4075 6 0.11 0.3865 0.4482 4093
下载: 导出CSV
表 2 以FIR技术为基础的温敏型Dy3+激活荧光粉的最大Sr值比较
Table 2. Comparison of maximum Sr values of temperature-sensitive Dy3+ activated phosphors based on FIR technique.
Sensing materials Temperature range/K Sr max/(%·K–1) References Ca7NaY (PO4)6: Dy3+ 298—448 1.72 This work Ca5(PO4)2SiO4: Dy3+ 296—1073 1.75 [2] KNaCa2(PO4)2: Dy3+ 90—230/250—500 2.57/0.74 [16] CaLa4(SiO4)3O: Dy3+ 298—548 1.67 [23] Sr3Ga2Ge4O14:Dy3+ 298—473 0.61 [32] GdPO4: Dy3+ 290—530 1.55 [44] Ca3LuAl3B4O15: Dy3+ 300—500 1.46 [45]
下载: 导出CSV
-
