新一代检测装备对高灵敏检测器提出了迫切需求. 纵观半导体检测器件的发展现状, 目前传统硅基检测器灵敏度及沟道尺寸已不满足未来所需, 金刚石烯具有高载流子迁移率、宽带隙等优异性能, 其优异的电子特性有望有效提升检测器的灵敏度性能, 为下一代检测器发展提供新途径. 但基于金刚石烯的检测机理还尚不明晰. 基于上述问题, 本文通过建立晶体管电流沟道理论模型, 分析了检测器工作状态下电子流动机制, 进一步结合沟道材料电子特性, 建立一种基于沟道材料电子流动的晶体管电流理论模型, 并开展金刚石烯基晶体管检测器的机理仿真验证、电子特性分析研究, 证明了碳基二维材料——金刚石烯在超敏电子检测中的潜力, 为新一代高性能检测器的研制提供技术基础.The new generation of detection equipment urgently requires high-sensitivity detectors. Traditional silicon-based detectors cannot meet the requirements for sensitivity and channel size. Diamondene has excellent performance such as high carrier mobility and wide band gap. Its excellent electronic characteristics are expected to effectively improve the sensitivity of the detector and provide a new way for developing the next generation of detectors. However, the detection mechanism based on diamondene is still unclear. Based on the above problems, the analytical model and mechanism of the transistor channel are first studied. By analyzing the relationship between the surface potential distribution of the current channel and the effective channel size in the working state and the sensitive characteristics of the two-dimensional material electrons of the channel, a theoretical model of the transistor detector is constructed based on the electronic characteristics of the channel material, and the working characteristics of the detector are investigated. The finite element simulation of the working mechanism, potential and electron distribution of the transistor detector is carried out. The simulation results show that the mobility level of the diamondene-based detector is 2.5 times that of the traditional silicon-based detector, which theoretically verifies the hypersensitive detection characteristics of the diamondene-based detector. This study is of great significance in designing and applying a new generation of carbon-based ultra-sensitive detection devices.
-
Keywords:
- high-sensitivity detector /
- channel electronics /
- sensitivity /
- migration rate
[1] Jiang J F, Xu L, Qiu C G, Peng L M 2023 Nature 616 470
Google Scholar
[2] Dwivedi P, Soneja S, Dhanekar S 2018 IEEE Sensors New Delhi, India, October 28–31, 2018
[3] Liu K L, Jin B, Han W, et al. 2021 Nat. Electron. 4 906
Google Scholar
[4] Grigorenko A N, Polini M, Novoselov K S 2012 Nat. Photonics 6 749
Google Scholar
[5] Gui G, Li J, Zhong J X 2008 Phys. Rev. B 78 075435
Google Scholar
[6] Lu G H, Yu K H, Wen Z H, Chen J H 2013 Nanoscale 5 1353
Google Scholar
[7] He Q, Su K, Zhang J F, Ren Z Y, Xing Y F, Zhang J C, Lei Y Q, Hao Y 2022 IEEE T. Electron Dev. 69 1206
Google Scholar
[8] Zhen J P, Huang Q S, Shen K, et al. 2024 PNAS 121 e2403726121
Google Scholar
[9] Su K, Ren Z Y, Peng Y, Zhang J F, Zhang J C, Zhang Y C, He Q, Zhang C F, Hao Y 2020 IEEE Access 8 20043
Google Scholar
[10] Sasama Y, Kageura T, Imura M, Watanabe K, Taniguchi T, Uchihashi T, Takahide Y 2022 Nature Electronics 5 37
[11] Zhang Q, Fang T, Xing H, Seabaugh A, Jena D 2008 IEEE Electron. Device Lett. 29 1344
Google Scholar
[12] Cheli M, Michetti P, Iannaccone G 2010 IEEE Electron. Devices Trans 57 1936
Google Scholar
[13] Liang G, Neophytou N, Lundstrom M S, Nikonov D E 2008 J. Comput. Electron 7 394
Google Scholar
[14] Xing H L, Fang T, Konar A, Jena D 2007 Appl. Phys. Lett. 91 092109
Google Scholar
[15] Hanson G W 2008 J. Appl. Phys. 103 064302
Google Scholar
[16] Jabbarzadeh F, Heydari M, Sharif A H 2019 Mater. Res. Express 6 086209
Google Scholar
[17] Gusynin V P, Sharapov S G, Carbotte J P 2007 J. Phys.: Condens. Matter 19 026222
Google Scholar
[18] Xu W, Zhu Z H, Liu K, et al. 2015 Opt. Express 23 5147
Google Scholar
[19] Luo X G, Teng Q, Lu W B, Ni Z H 2013 Mater. Sci. Eng. R 74 351
Google Scholar
[20] Hua L, Gan X T, Mao D, Zhao J L 2017 Photonics Res. 5 162
Google Scholar
[21] Lima A W, Sombra A 2014 Opt. Commun. 321 150
Google Scholar
[22] Frank S 2010 Nat. Nanotech. 5 487
Google Scholar
[23] 季启政, 刘峻, 杨铭, 马贵蕾, 胡小锋, 刘尚合 2023 电子学报 51 1486
Ji Q Z, Liu J, Yang M, Ma G L, Hu X F, Liu S H 2023 Chinese Journal of Electronics 51 1486
[24] Chakraborty I, Roy S, Dixit V, Debnath K 2021 Photonic Nanostruct. 43 100865
Google Scholar
[25] Jabbarzadeh F, Habibzadeh S A 2019 JOSA B 36 690
Google Scholar
[26] Liu M, Yin X B, Erick U A, Geng B S, Zentgraf T, Ju L, Wang F, Zhang X 2011 Nature 474 64
Google Scholar
[27] Heidari M, Orouji A A, Bozorgi S A 2023 J Mater Sci: Mater Electron 34 1708
Google Scholar
[28] Santini T, Morand S, Fouladirad M, et al. 2014 Microelectronics Reliability 54 1718
Google Scholar
[29] Sreevani A, Swarnakar S, Krishna S V 2022 Silicon 14 9223
Google Scholar
-
图 1 晶体管工作电子流动原理图
Fig. 1. Schematic diagram of the electron flow principle of the transistor.
图 2 折射率实部(a)和虚部(b)随费米能量的变化关系
Fig. 2. Relationship between the real part (a) and the imaginary part (b) of the refractive index with Fermi energy.
图 3 晶体管内截面电势分布随栅压的变化情况
Fig. 3. Distribution of the cross-section potential distribution in the transistor with the gate voltage.
图 4 晶体管内截面电势分布随漏压的变化情况
Fig. 4. Distribution of the cross-section potential distribution in the transistor with the drain voltage.
图 5 电子(a)和空穴(b)随栅压的分布关系
Fig. 5. Distribution of electrons (a) and holes (b) with gate voltage.
图 6 电子(a)和空穴(b)随漏压的分布关系
Fig. 6. Distribution of electrons (a) and holes (b) with drain voltage.
图 7 硅基和金刚石烯基检测器的电势、电子和空穴分布对比
Fig. 7. Comparison of electric potential, electron, and hole distributions of silicon-based and diamondene-based transistors.

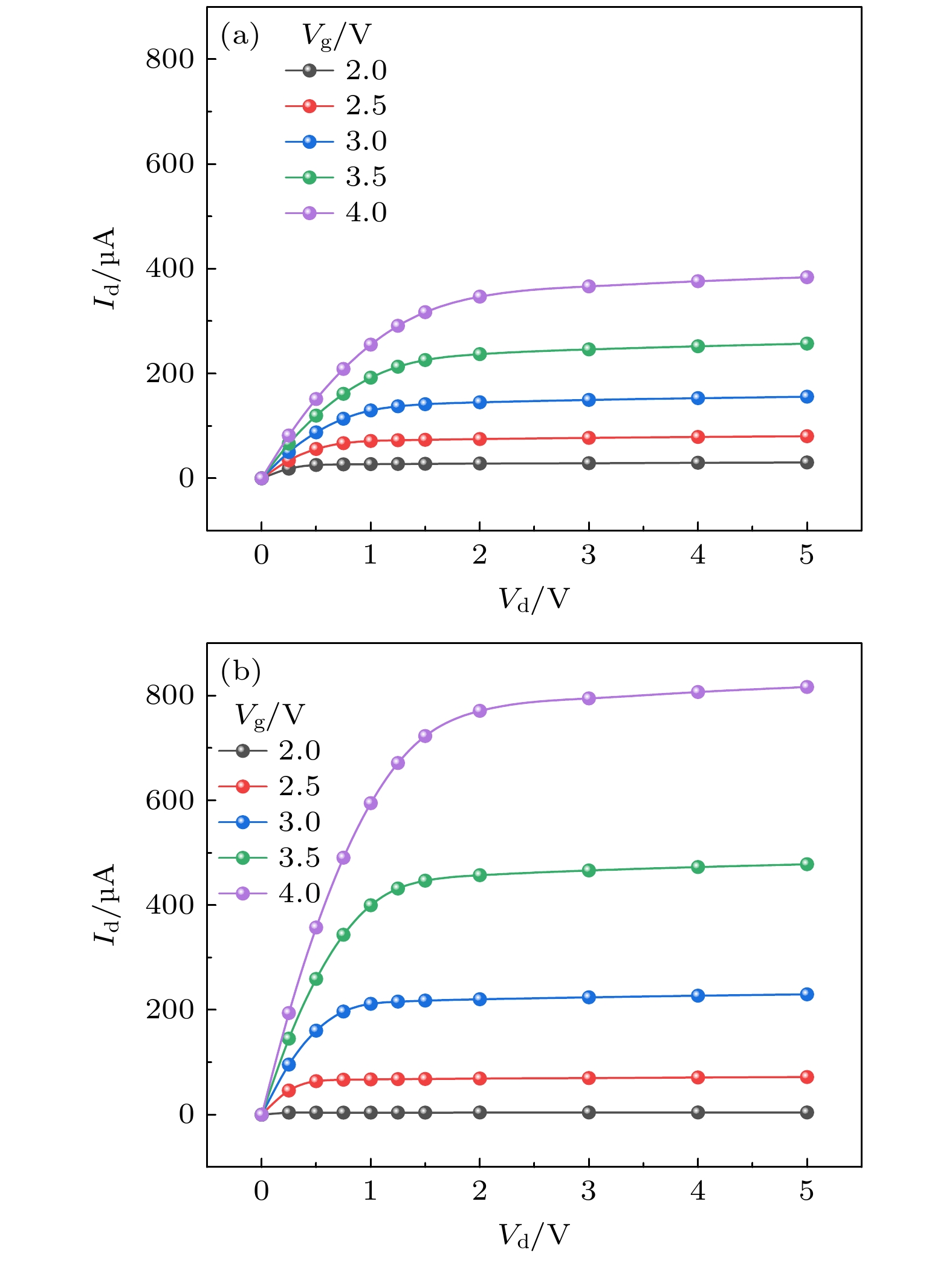

图 8 硅基(a)和金刚石烯基(b)检测器的检测电流性能对比
